Digital Mode

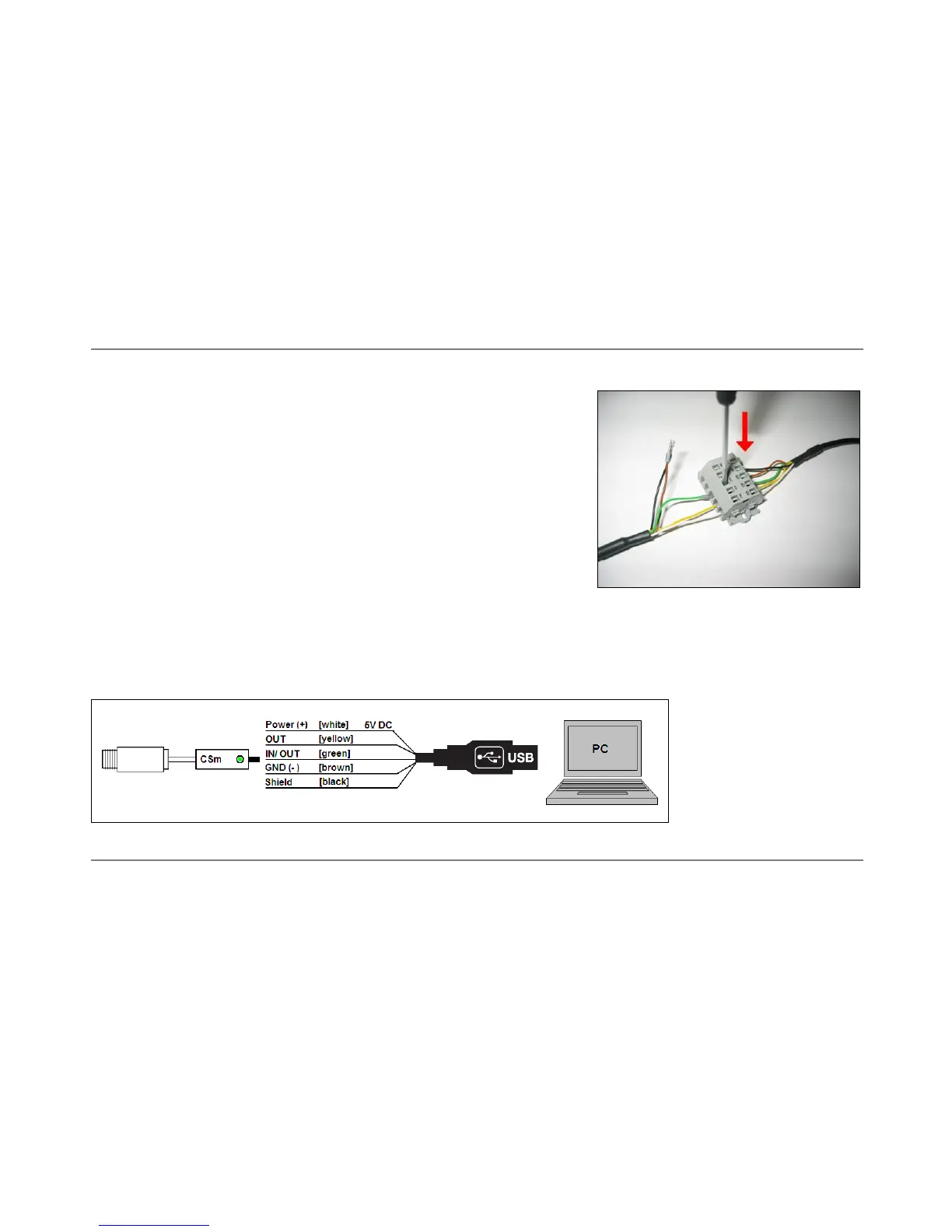

For a digital communication the optional USB programming kit is
required. Please connect each wire of the USB adapter cable with
the same coloured wire of the sensor cable by using the terminal
block. Press with a screw driver as shown in the picture to loose a
contact.
The sensor is offering two ways of digital communication:
 bidirectional communication (sending and receiving data)
 unidirectional communication (burst mode – the sensor is sending data only)
Digital mode [LT/ 3M]
