optris CSmicro – E2015-12-A
12

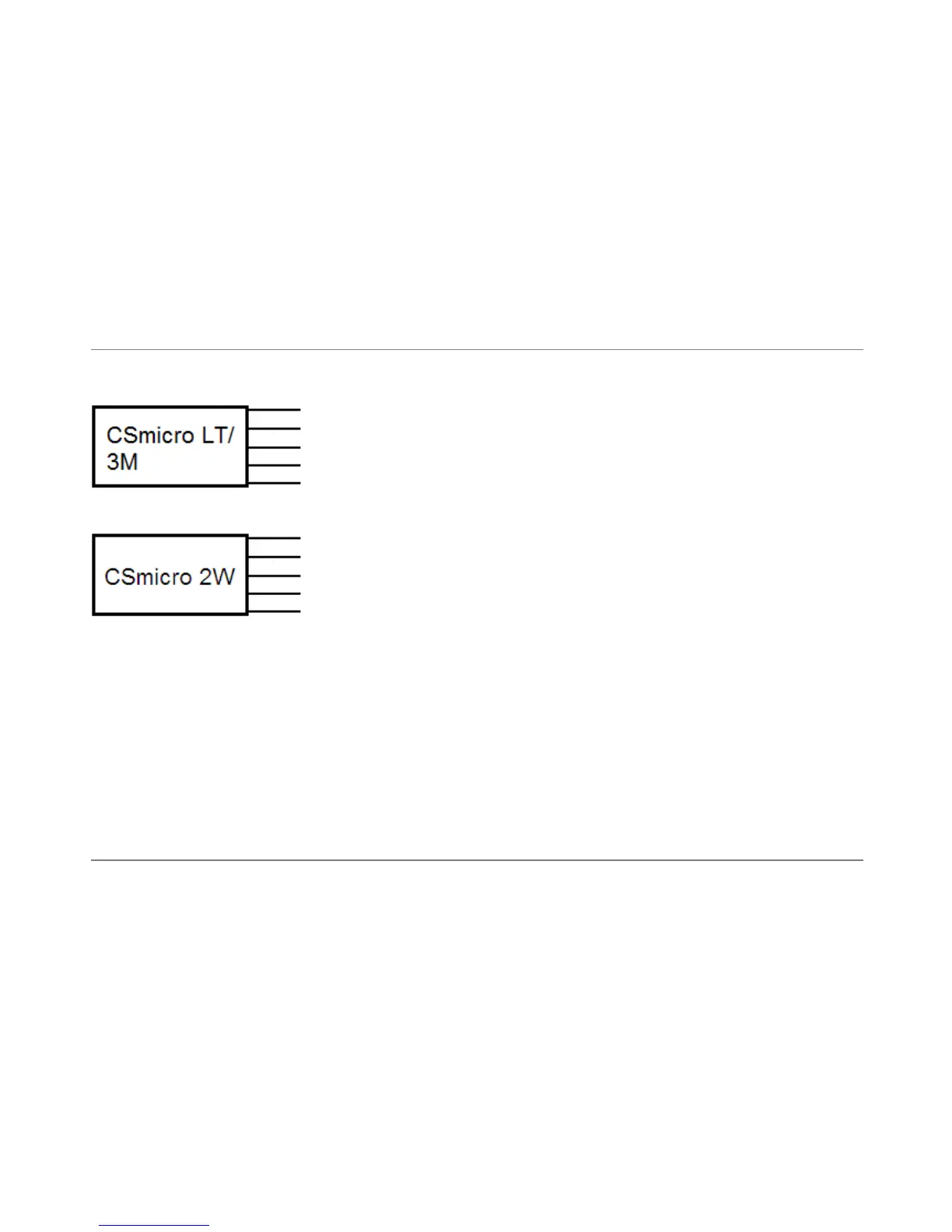

Pin Configuration
white Power Power supply
yellow OUT Analog output/ TxD/ Alarm output
green IN/ OUT Analog input/ RxD/ Open collector output
brown GND Ground ()
black Shield Shield
white Power Current loop (+)/ Alarm output
yellow OUT TxD
green IN/ OUT Trigger input/ RxD/ Open collector output
brown GND Current loop (-)/ Ground ()
black Shield Shield
You will find a detailed description of the different sensor connections in chapter ► Electrical Installation.
