Optronics PG11 - Pole Mounting

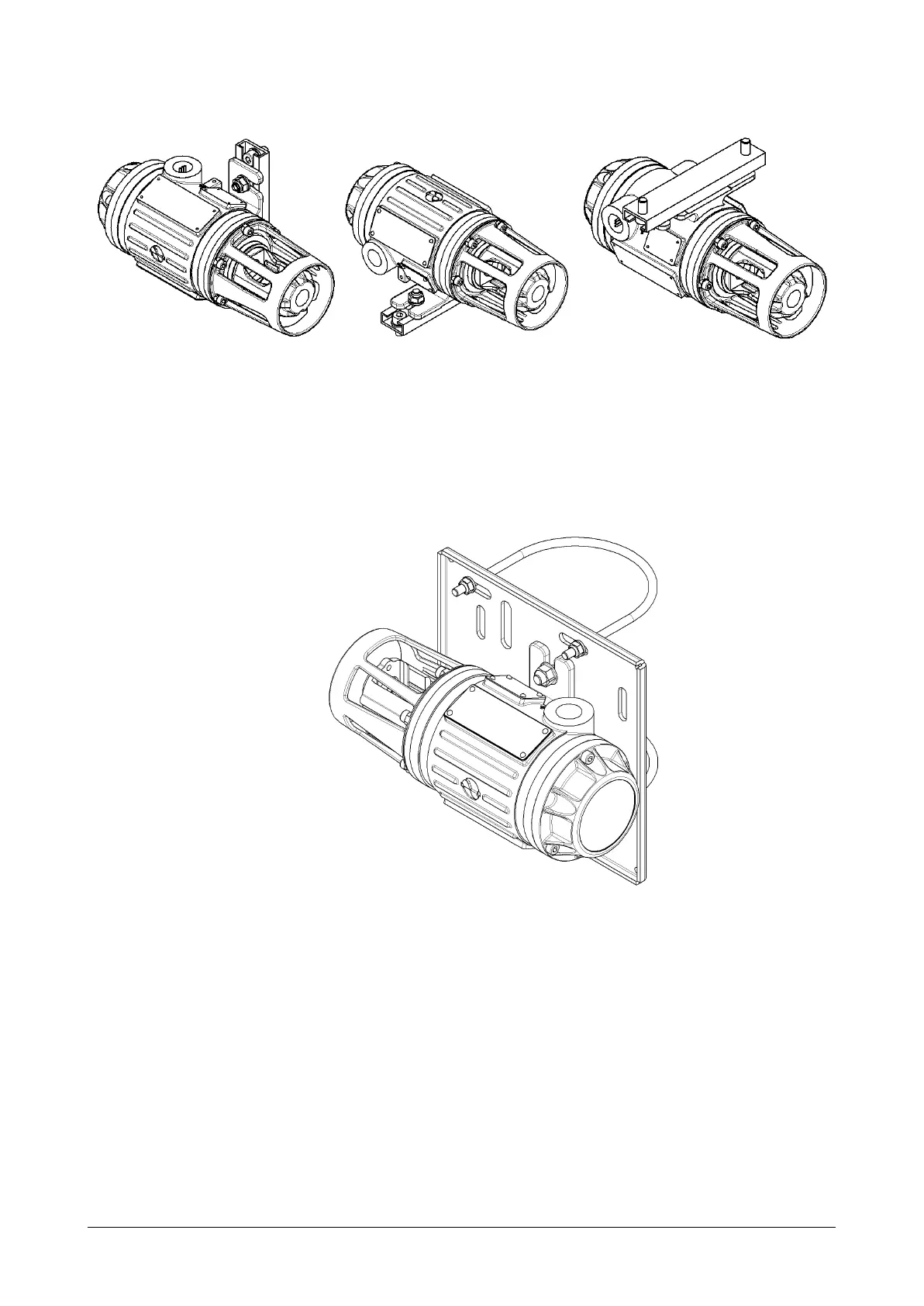

Wall mounting of the detector is most often seen, while it can also be mounted flat or in the
roof as illustrated below. In the example below the detector is mounted in a C-bar structure.
3.3.1 Pole mounting
Below is an illustration of the PG11 with the “Mount kit Pole” mounted to a pole with a
diameter of about Ø60 mm or 3”.
Document 022-80036-OM Revision R03 Page 13 of 48
