3.6 Sunshade
The PG11 can be fitted with a screen or roof keeping it from being exposed to direct sunlight
heating the detector up, or from snow, sand or similar that can accumulate on the detector.

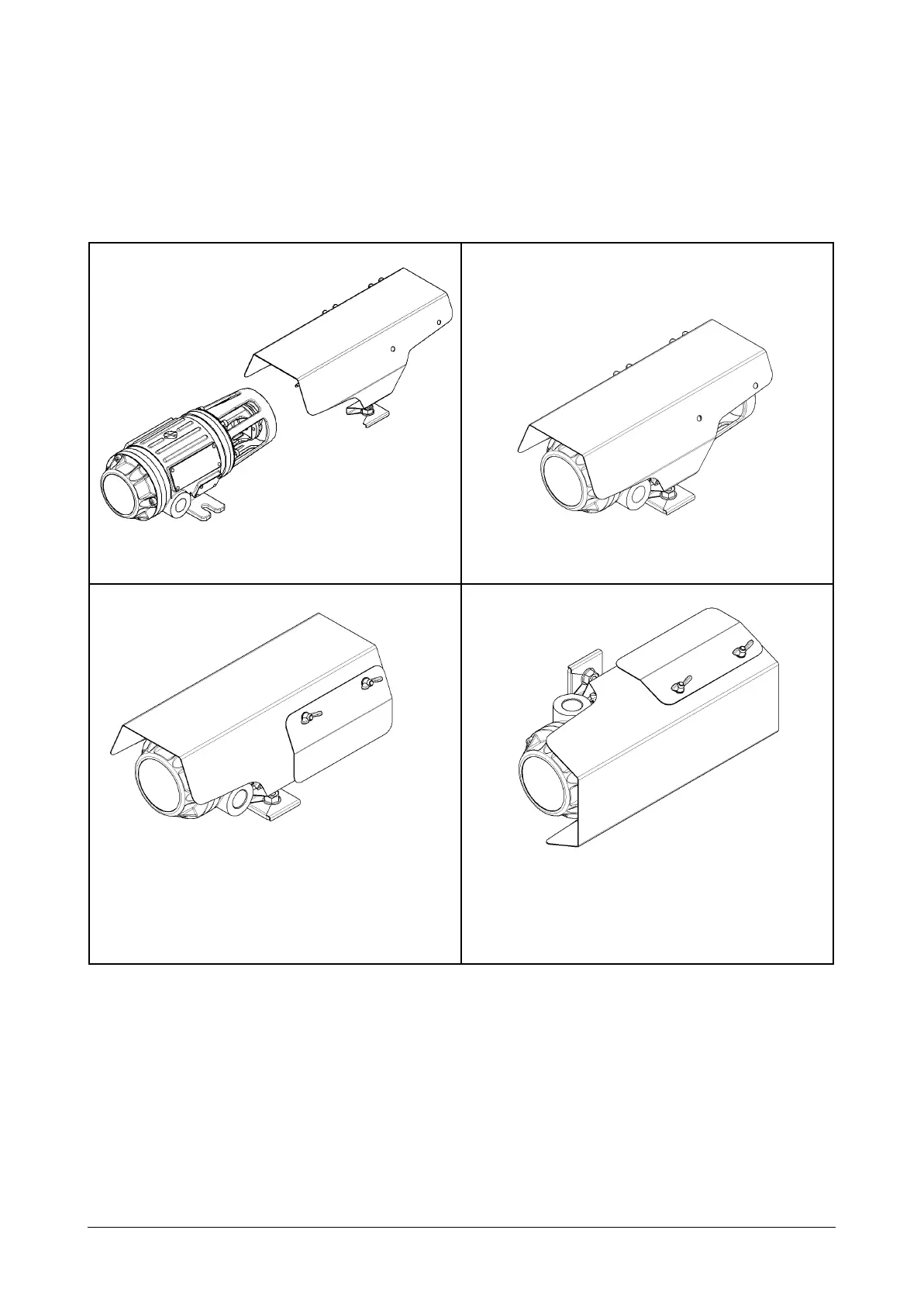

The sunshield is fitted as illustrated below. The sunshield is fixed with the same screws as the
Detector.
The Sunshade is slided in from the front.
The Sunshade is secured with the same
screws as the Detector mounting.
The accessory Sunshade extension included
in the Sunshade kit can be used to give extra
shielding in some applications, but is
normally not used for horizontal mounting.
For wall or pole mounting it is
recommended to use the Sunshade extension
to shield the detector from direct sunlight,
rain and snow.
