Oracle Acme Packet 1100 User Manual

DRAFT
Proprietary and Confidential
NET MGT INT EXT
PWR
ACME PACKET 1100
OK
LNK
ACT
LNK
ACT
LNK
ACT
USB Port
NET MGT Port Ethernet LNK/ACT LEDs
PWR LED
INT Port Ethernet LNK/ACT LEDs
EXT Port Ethernet LNK/ACT LEDs
OK LED
12 Acme Packet 1100 Hardware Installation Guide
COMPONENT OVERVIEW

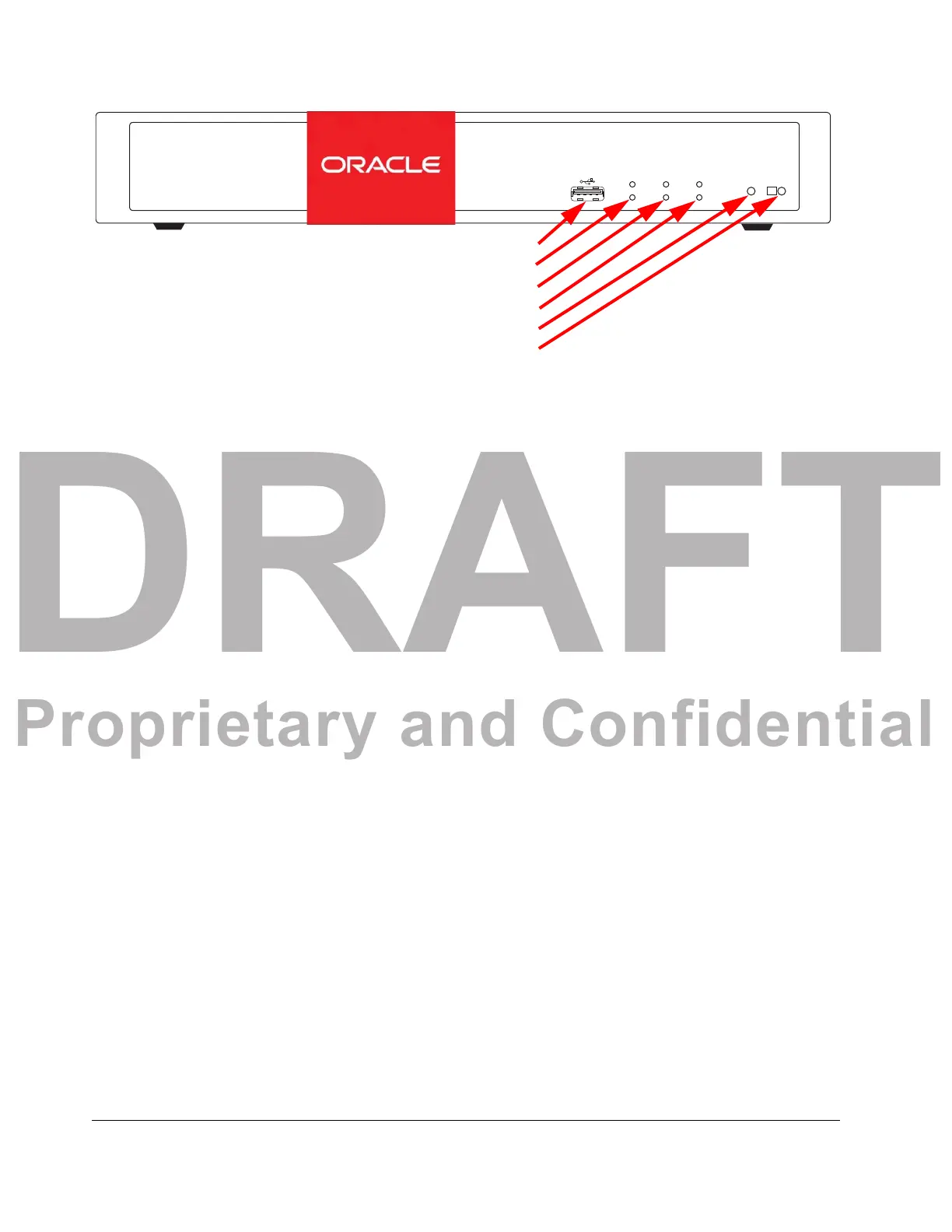

Figure 2 - 3. Acme Packet 1100 Front Panel
OK LED The bi-colored OK LED is a high availability (HA) indicator. The OK LED indicates
the active and standby status of the Acme Packet 1100. The following are the
possible states and meanings of the OK LED:
• orange — indicates the Acme Pack
et 1100 is in standby mode.
• green — indicates the Acme Packet 1100 is in active mode.
• off — HA is not currently in use on this chassis, or the chassis is not powered on.
PWR LED The PWR LED indicates the operational status of the A
cme
Packet 1100. The states
and meanings of the PWR LED include:
• green — indicates the Acme Packet 1100 is powered on.
• of
f — indicates the Acme Packet 1100 is not powered on.
EXT Ethernet
LNK/ACT LEDs
The EXT LNK LED and ACT LED indicate the respective li
nk and activity over the
EXT Ethernet port on the rear of the chassis. See the section on Network
Management Ports for further information on the meaning and use of these LEDs as
they pertain to the EXT port.
INT Ethernet LNK/ACT
LEDs
The INT LNK LED and ACT LED indicate the
respective link and activity over the
INT Ethernet port on the rear of the chassis. See the section on Network
Management Ports for further information on the meaning and use of these LEDs as
they pertain to the INT port.
NET MGT Ethernet
LNK/ACT LEDs
The NET MGT LNK LED and ACT LED
indicate the
respective link and activity over
the NET MGT Ethernet port on the rear of the chassis. See the section on Network
Management Ports for further information on the meaning and use of these LEDs as
they pertain to the NET MGT port.
USB Port The USB port is reserved for software-enab
l
ed applications such as firmware and
system upgrades and for remote access by customer service representatives. The
