3-56 Operation

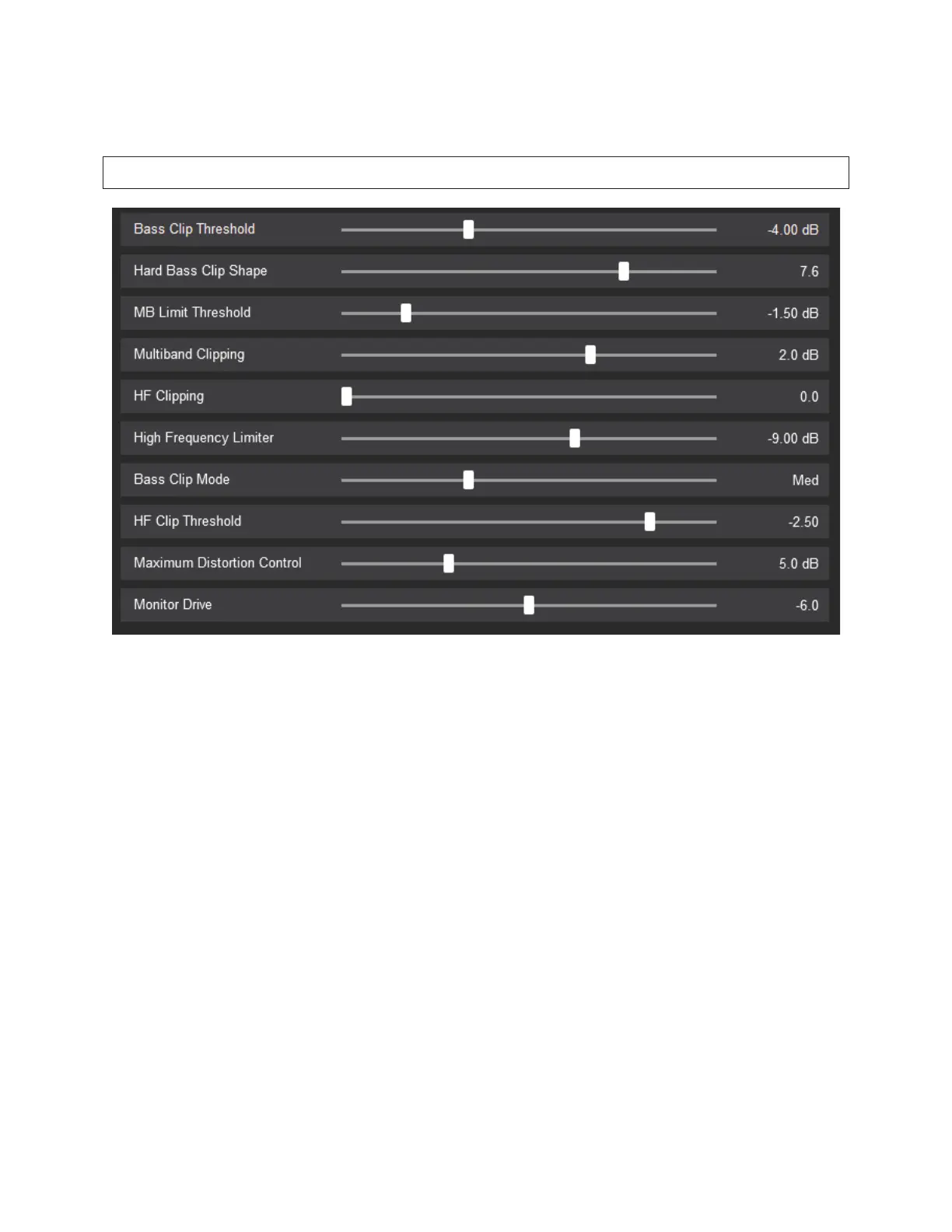

DISTORTION
x BASS CLIP THRESHOLD - Sets the embedded bass clipper threshold in dB below the final clipper.
x HARD BASS CLIP SHAPE – Changes the shape of the knee of the gain curve of the bass clipper.
x MB (Multiband) LIMIT THRESHOLD – Sets the threshold of the clipping distortion controller.
x MULTIBAND CLIPPING – Controls the amount of signal applied to the multiband clippers. Higher values
mean less multiband compression and more clipping activity in the multiband.
x HF (High Frequency) CLIPPING – Normally set to 0, higher values will allow more brightness and less
intelligent HF distortion control.
x HIGH FREQUENCY LIMITER – Sets the amount of additional gain in Band 5 of the multiband section to
prevent high frequency distortion in the final clipper.
x BASS CLIP MODE – Sets the hardness of the embedded bass clipper
x HF (High Frequency) CLIP THRESHOLD – Sets the threshold of the distortion cancelled clipper in the HF
limiter. Higher numbers will yield more brightness at the expense of some distortion tradeoff.
x MAXIMUM DISTORTION CONTROL – Limits the maximum amount of final clipper drive gain reduction (in
dB) that the clipping distortion controller can apply.
