Orban 5950 Technical Manual Operation 3-57

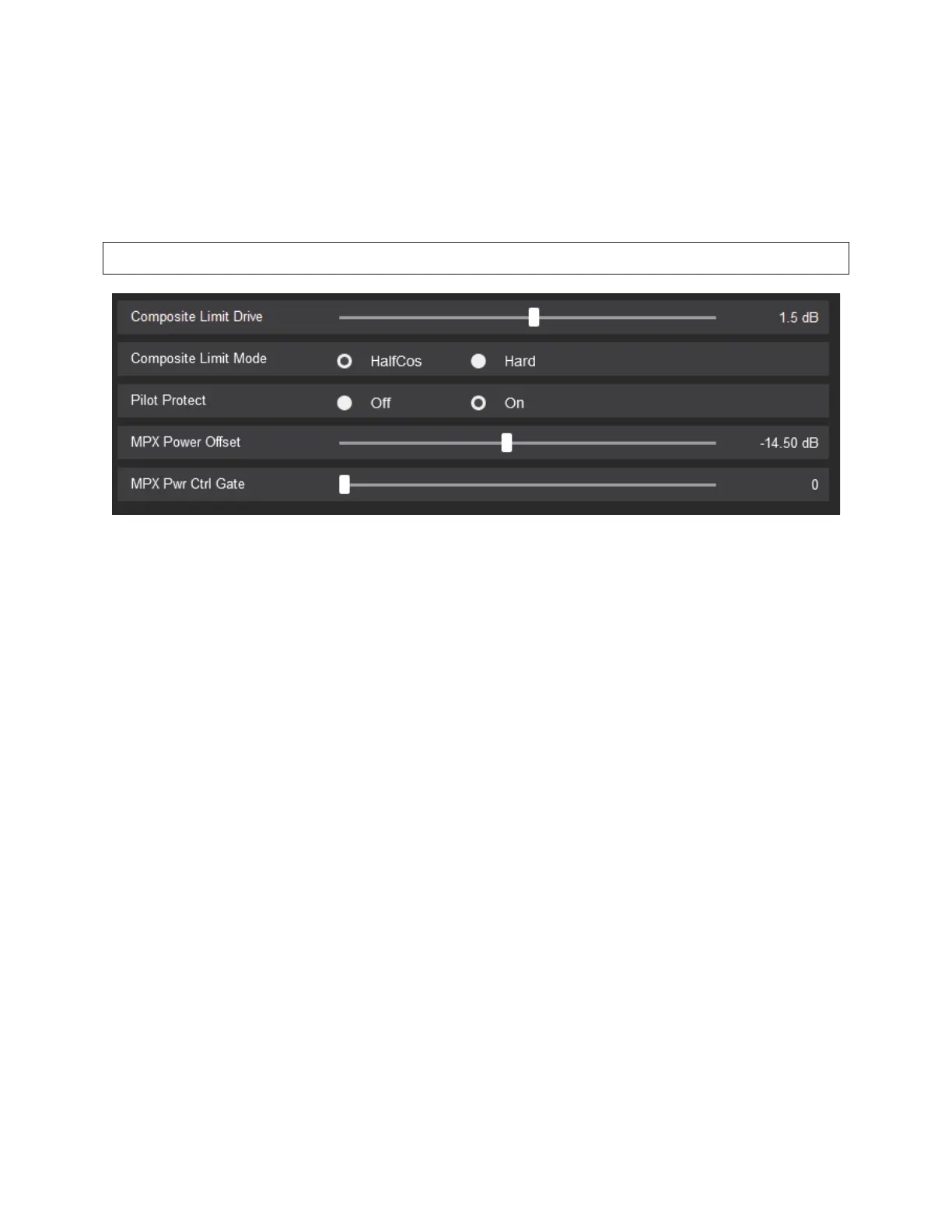

DISTORTION
x COMPOSITE LIMIT DRIVE – Sets the amount of peak limiting in the composite limiter.
x COMPOSITE LIMIT MODE – Half cosine provides better separation and maintains stereo imaging. Hard mode
provides a brighter sound as it creates waveforms closer to square waves.
x PILOT PROTECT – Protects the 19kHz pilot from composite processor produced harmonics.
x MPX POWER OFFSET – Reduces peak limiter drive to offset audible side effects of ITU412 controller.
x MPX POWER CTRL GATE – Sets the level below which gating occurs, as well as the release times above and
below the threshold. Higher-numbered presets provide higher thresholds and slower release times.
