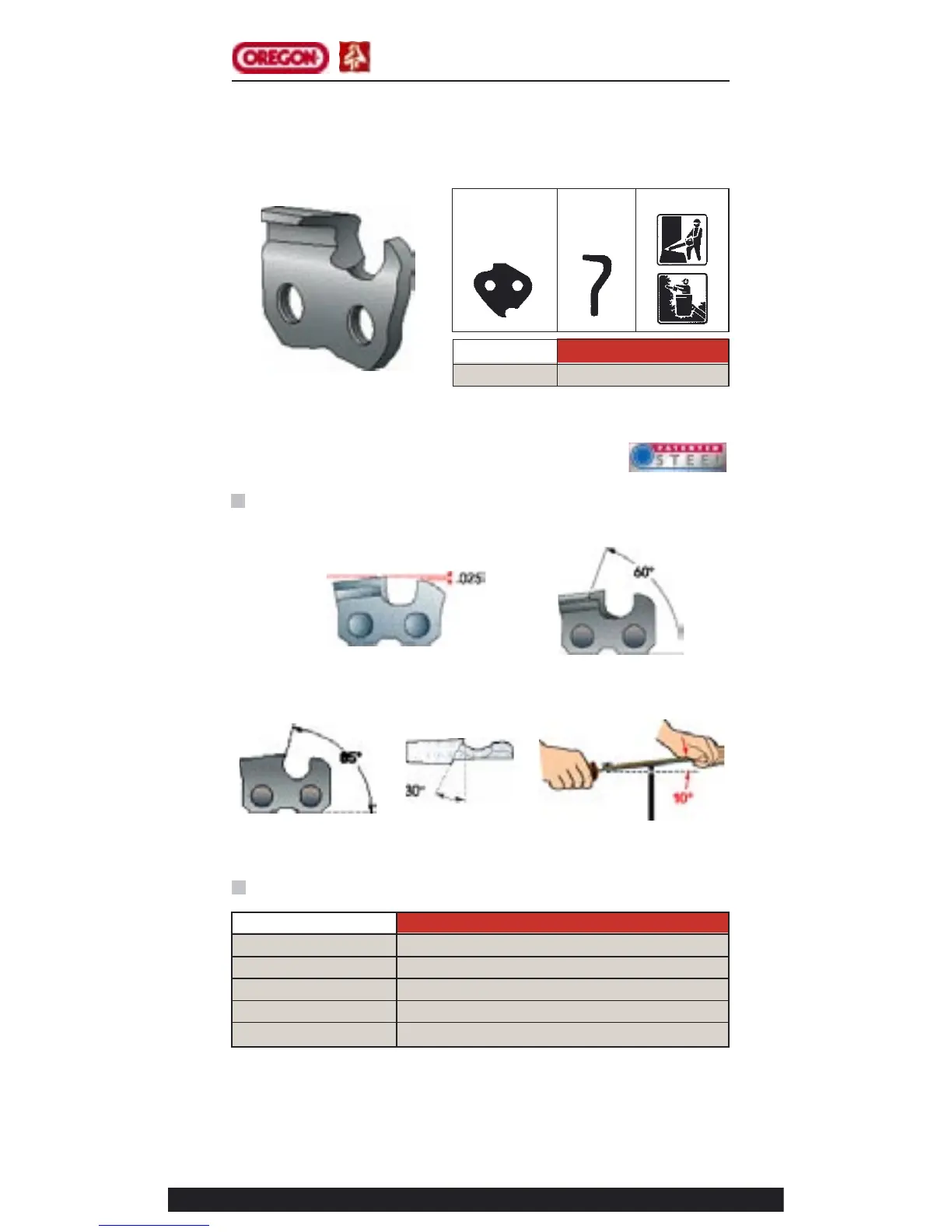

Oregon CHAINSAW - Filing Specifications

26.
SAW CHAIN
SAW CHAIN
MICRO CHISEL
®
1/4"
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70504 5/32" (4.0mm) Round File
16265 5/32" (4.0mm) Assembled File Guide
27530 .025" (0.64mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90405 Sharpening kit
OREGON
®
MICRO CHISEL
®
FILING
➍ TOP-PLATE FILING
ANGLE:
Kickback
Reducing
Features
End View Use
Chain on this page is intended for use with saws up to 2.3 cu. in.
displacement (38cc), and bars up to 16 in. length (41 cm).
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
25AP .050" (1.3mm)
