CHAIN TERMS

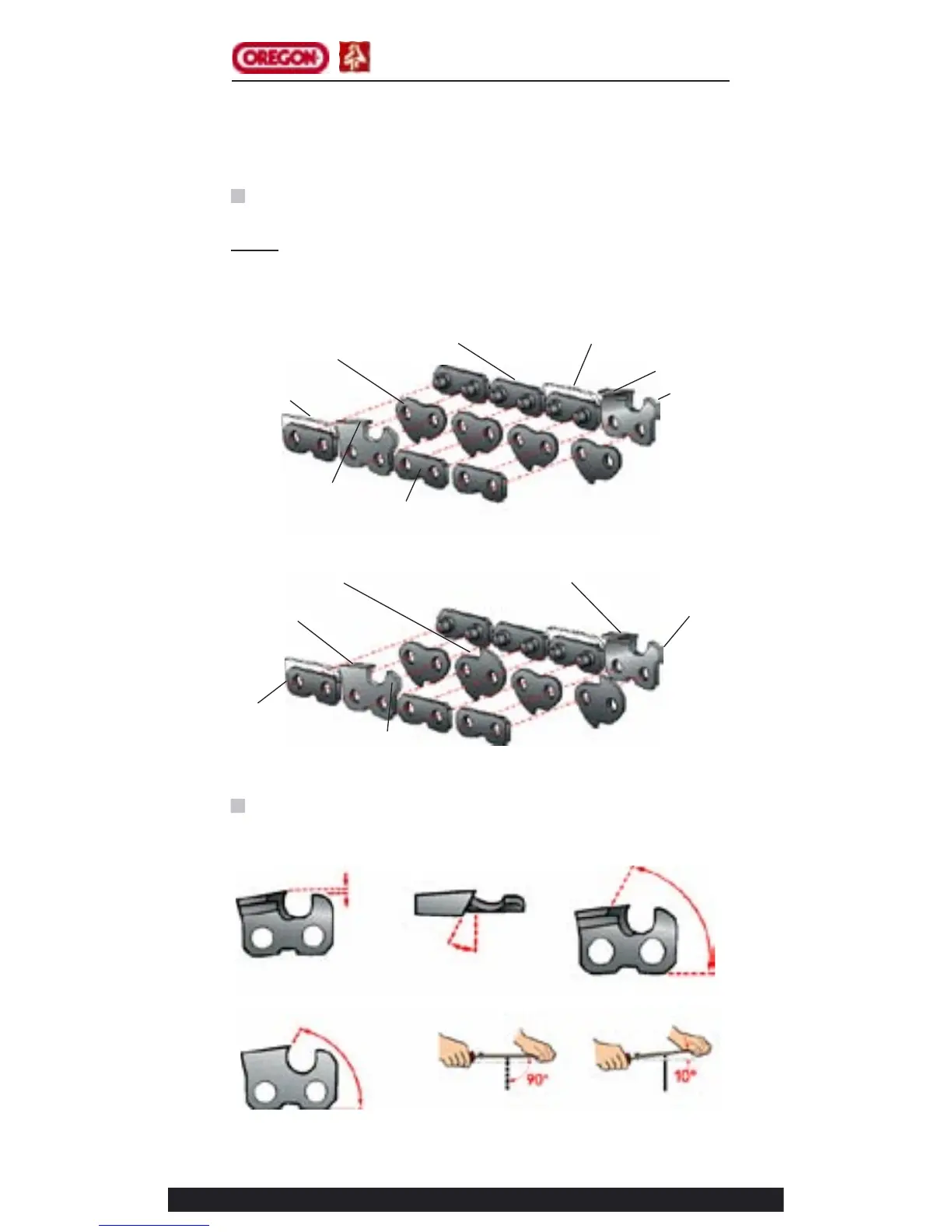

THE PARTS OF A SAW CHAIN
NOTE: Highlighted parts below indicate kickback-reducing “bumper
link" features: bumper tie strap, bumper drive link, and ramped depth
gauge.
Preset Tie Strap
Drive Link
Bumper Tie Strap
Right-hand Cutter
Tie Strap
Ramped
Depth
Gauge
Left-hand Cutter
Preset Bumper Tie Strap
Tie Strap
Right-hand Cutter
Depth Gauge
Left-hand Cutter
Depth Gauge
CUTTER MAINTENANCE TERMS
Depth-gauge Setting Top-plate Filing Angle Top-plate Cutting Angle
Side-plate Angle File-guide Angle
Bumper Drive Link
