HOW TO REPLACE OREGON
®
POWER MATCH
®
BAR NOSES
NOTE: Select a new Power Match
®
nose with the correct pitch for your
bar and chain. Reduced-kickback Double Guard
®
replacement noses
can be installed on any Power Match® bar and can be used with the
same drive-link-count loop of chain.

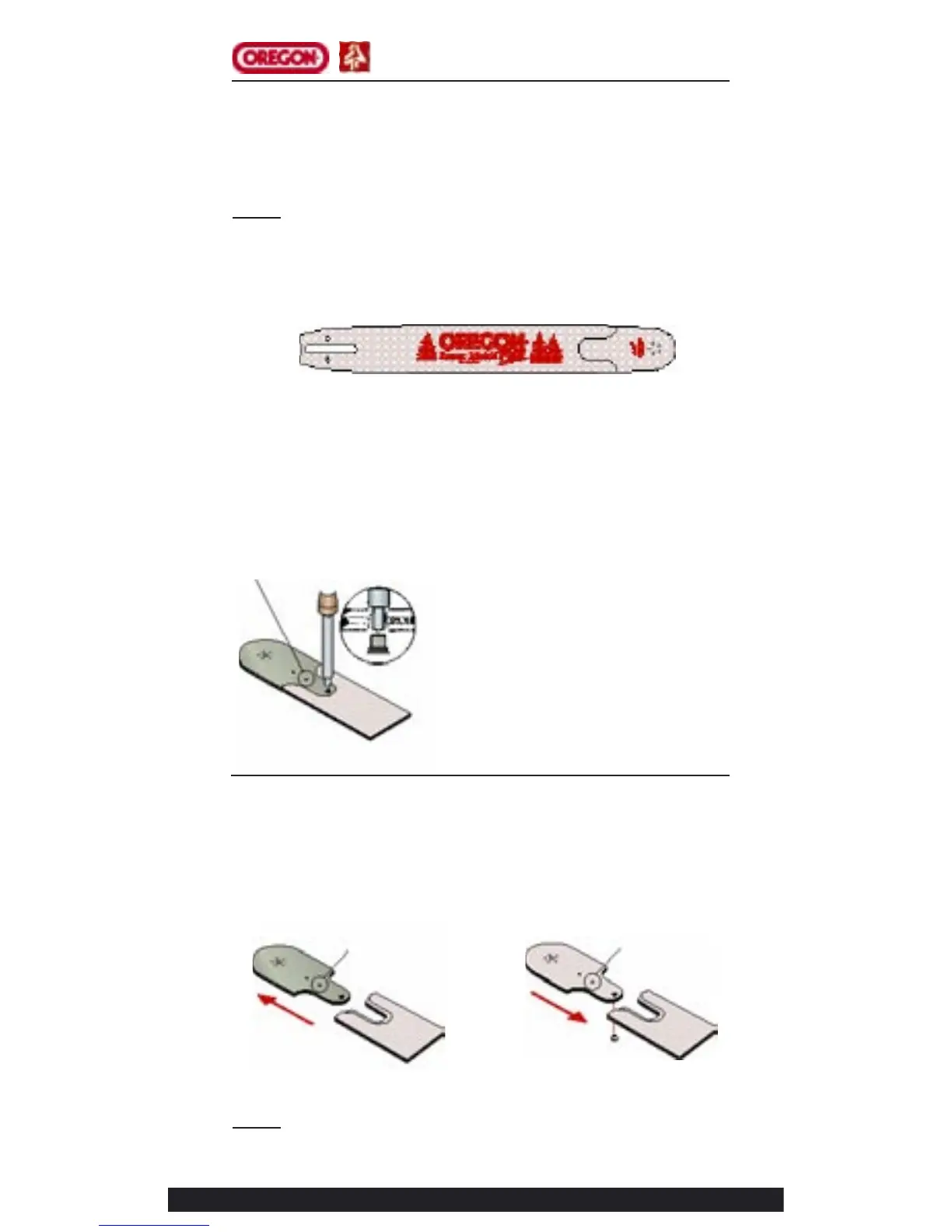

1. Note that your OREGON
®
Power Match bar nose is marked, on one
side only, with an “X." Always strike on the “X"-stamped side of Power
Match
®
bar noses. Striking on the wrong side will damage the nose and
bar body. Use the Power Match
®
nose-rivet punch (part n°.35518) to
drive ou the single attaching rivet.
“X" Side Up
2. Remove the old nose. Clean the bar’s attachment area.
3. Insert the new nose into the bar body. Insert the Power Match
®
rivet
(part n°.34726) through the underside of the nose, opposite the “X"
mark.
“X" Side Up
“X" Side Up
NOTE: The rivet will not fit, and cannot be secured, if inserted through
the “X" side.
