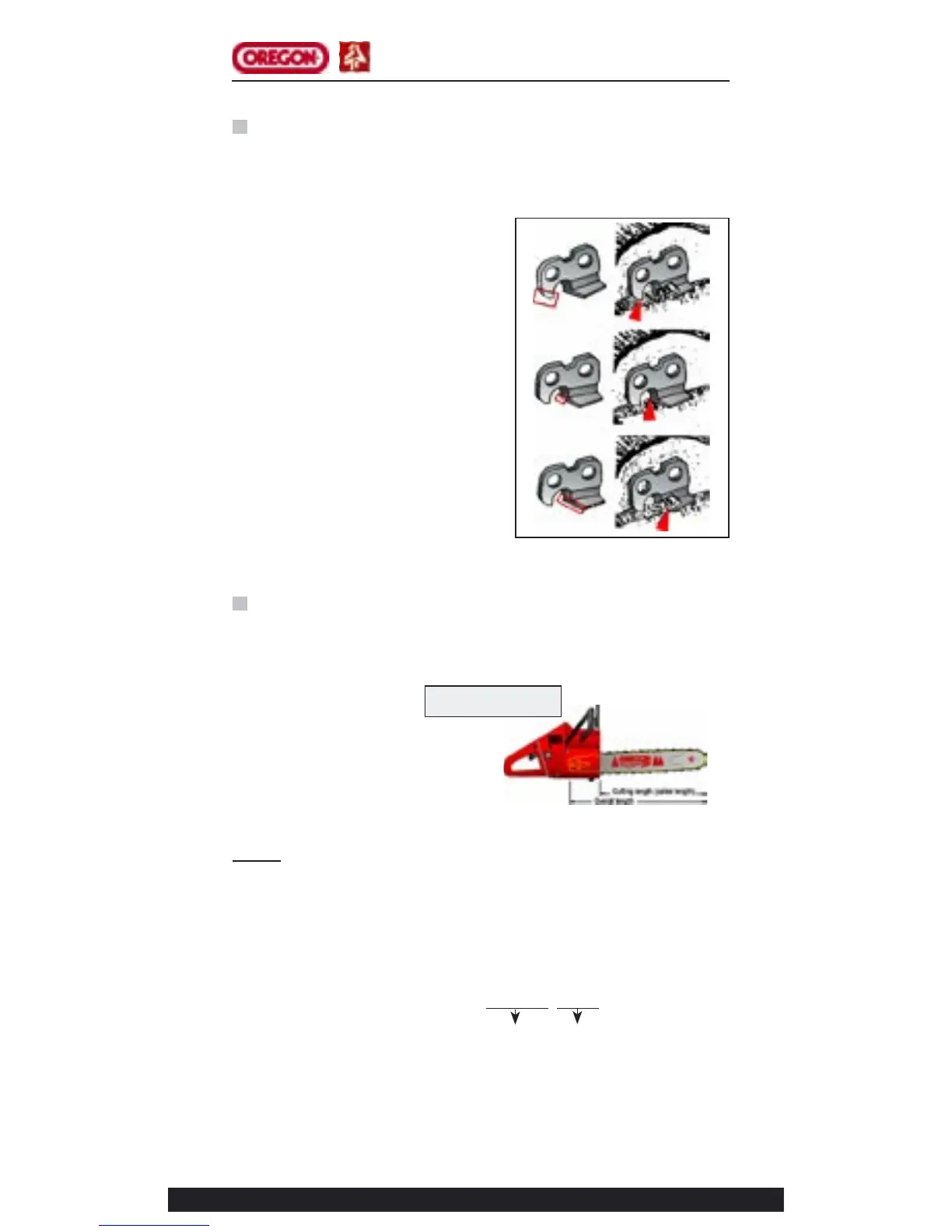

HOW A CUTTER WORKS
Understanding how cutters work can help you see why proper chain
maintenance is so important.
➊
The depth gauge rides on the wood
and controls the depth at which the
working corner bites in.
➋
The working corner and side plate
sever the cross grains. This is the
hardest part of the work.
➌
The top-plate cutting angle chisels
out the severed wood fibers,lifting them
up and out of the kerf.
HOW TO ORDER REPLACEMENT CHAIN
For the best possible service, have the following saw information ready
for your OREGON
®
dealer.
➊
Make and model
➋
Guide bar’s cutting length.
NOTE: Your bar’s called length is different from its overall length. The
called length is the distance from the front of the saw to the tip of the
farthest cutter.
➌
Chain part number and drive link count for chain length.
EXAMPLE:
OREGON
®
chain 72LG-68E
PART N°.
DRIVE
LINK
COUNT
SAW MAN 1100-A
