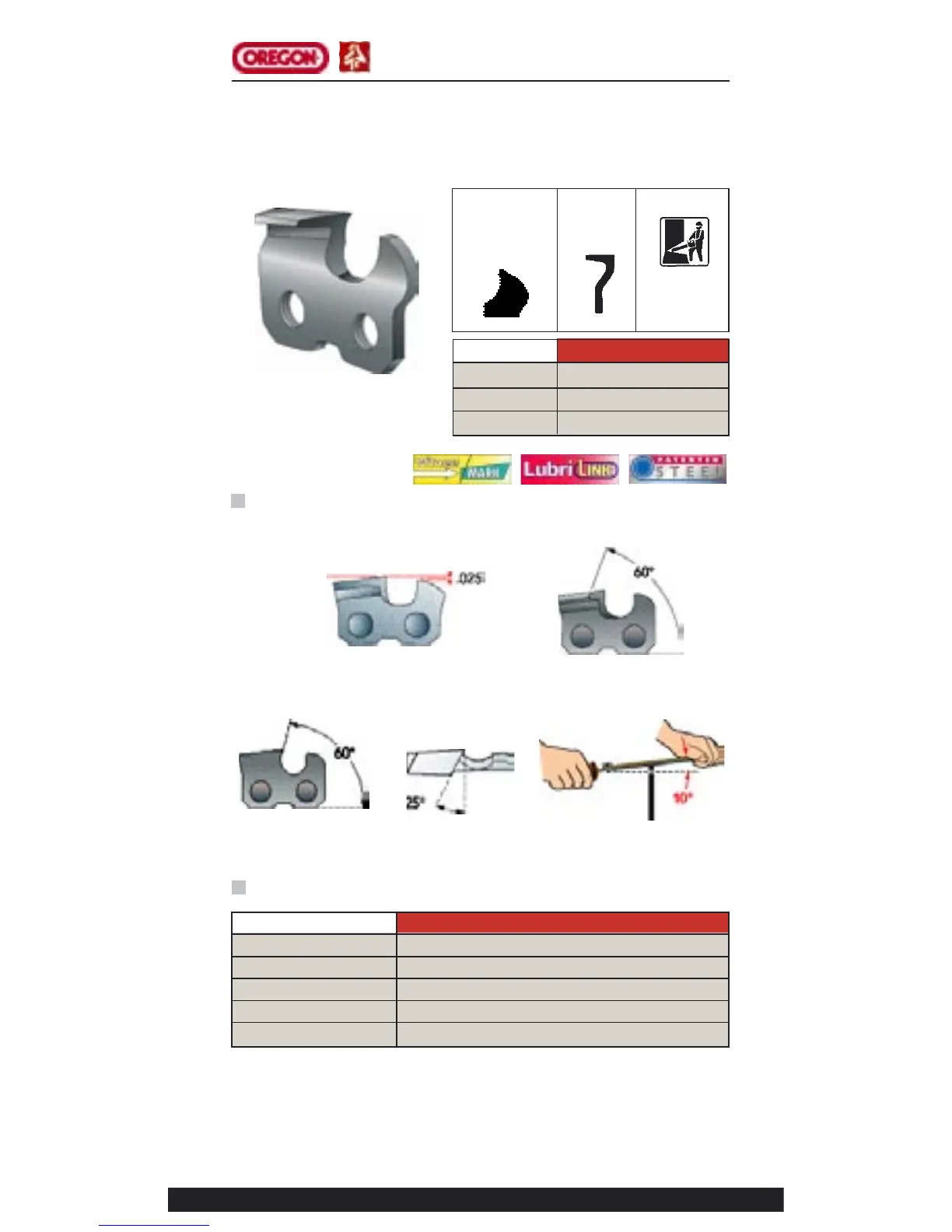

Oregon CHAINSAW - Page 38

34.
SAW CHAIN
SAW CHAIN
OREGON
®
CHISEL
®
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70502 7/32" (5.5mm) Round File
13252 7/32" (5.5mm) Assembled File Guide
27530 .025" (0.64mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90404 Sharpening kit
FILING
➍ TOP-PLATE FILING
ANGLE:
Kickback
Reducing
Features
End View Use
Chain on this page is intended for use with saws up to 6.0 cu. in.
displacement (98cc), and bars up to 36 in. length (91 cm).
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
72LG .050" (1.3mm)
73LG .058" (1.5mm)
75LG .063" (1.6mm)
SUPER GUARD
®
3/8"
