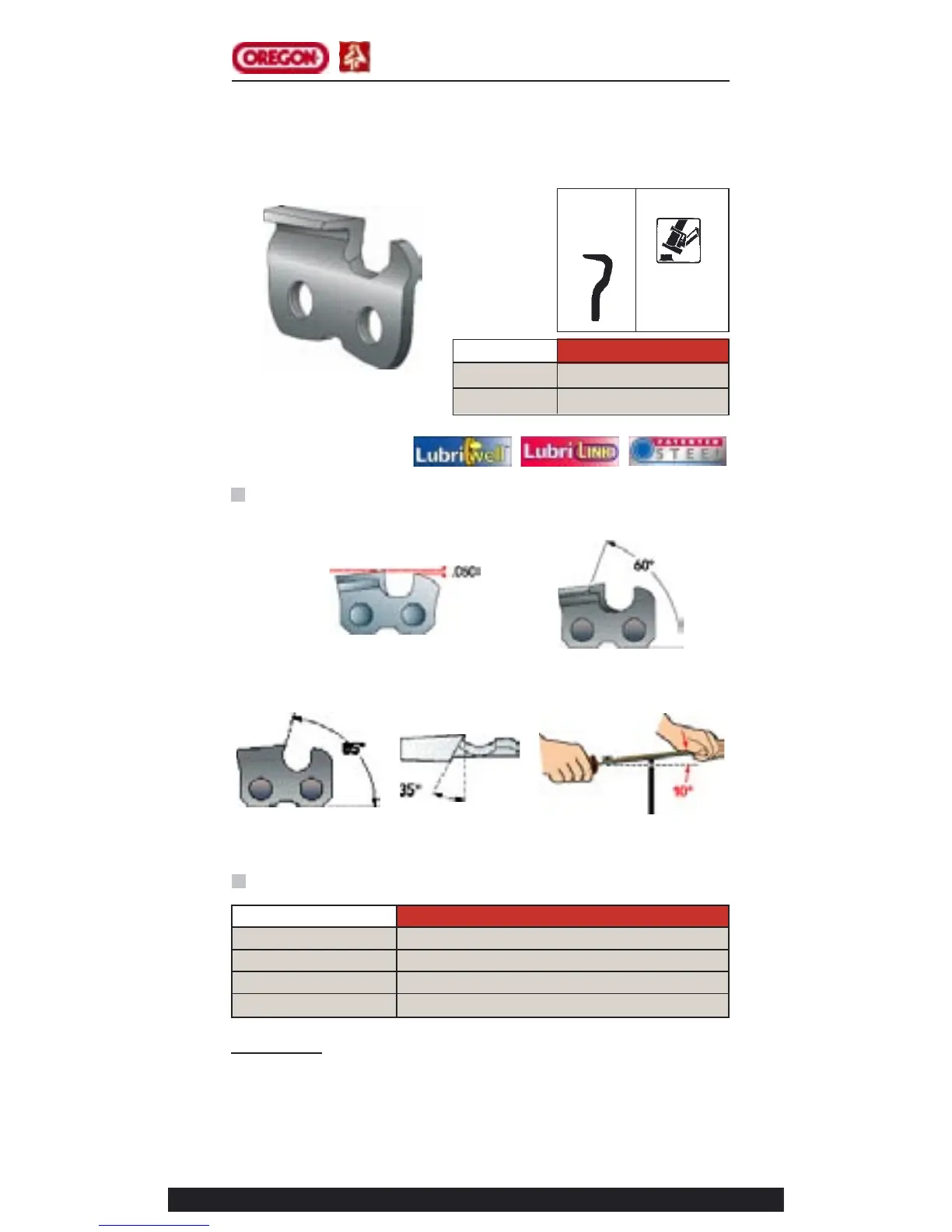

SAW CHAIN
OREGON
®
MICRO CHISEL
®
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70502 7/32" (5.5mm) Round File
13252 7/32" (5.5mm) Assembled File Guide
39275 .050" (1.25mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
FILING
➍
TOP-PLATE FILING
ANGLE:
End View Use
WARNING: For use on mechanized harvesting equipment only.
Depth gauges are set lower for harvester machinery; can cause high
kickback on hand-held saws.
Do not use in hand-held cutting applications as severe injury to operator
or bystanders may result.
➊
DEPTH-GAUGE
SETTING:
➋
TOP-PLATE CUTTING ANGLE:
➌
SIDE-PLATE
ANGLE:
➎
FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
16H .063" (1.6mm)
18H .080" (2.0mm)
HARVESTER, NO HAND-
HELD APPLICATIONS
18H 16H,18H 16H,18H
HARVESTER CHAIN
48.
