Oregon Mini Grinder - Page 18

6
7
5
9
10
1
11
2
4
3
8

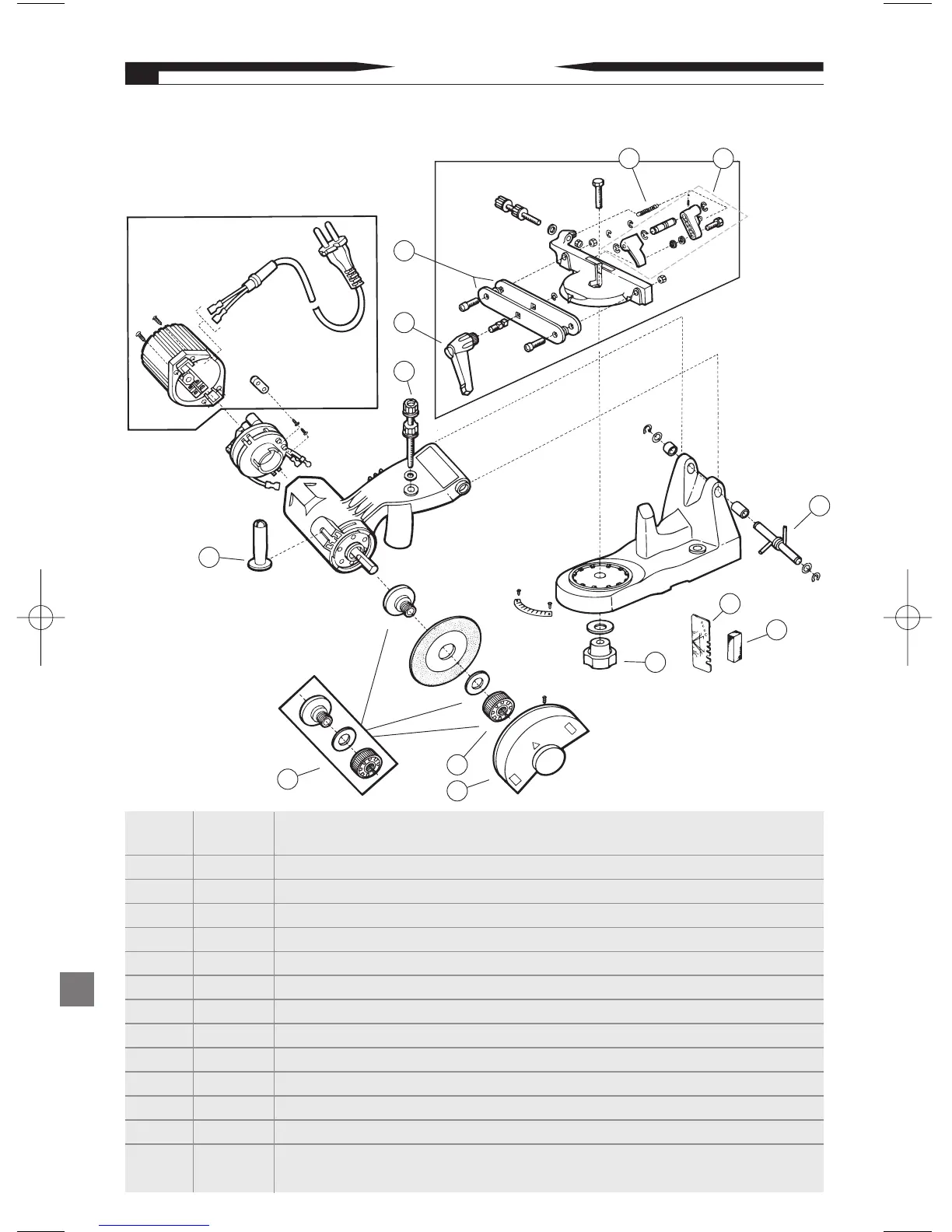

EXPLODED VIEWS
18
Item Part
No. No. Description
1 110579 CHAIN STOP RETROFIT KIT
2 111941 ALUMINUM ARBOR RETROFIT KIT
3 109169 PLASTIC FLANGE, OUTER
4 109170 PLASTIC GUARD/SHIELD
5 109171 VISE POSITION/TENSION ADJUSTMENT KNOB
6 109172 VISE PLATE, MINI GRINDER
7 109174 RETURN SPRING, CHAIN ADVANCE
8 109175 RETURN SPRING, GRIND LEVER
9 108205 KNOB KIT, HEIGHT ADJUSTMENT
10 108290 KNOB
11 105538 HANDLE KIT
12 35596 TEMPLATE
13
DB-2
DRESSING BRICK
Bench-Mounted Mini Grinder
12
13
