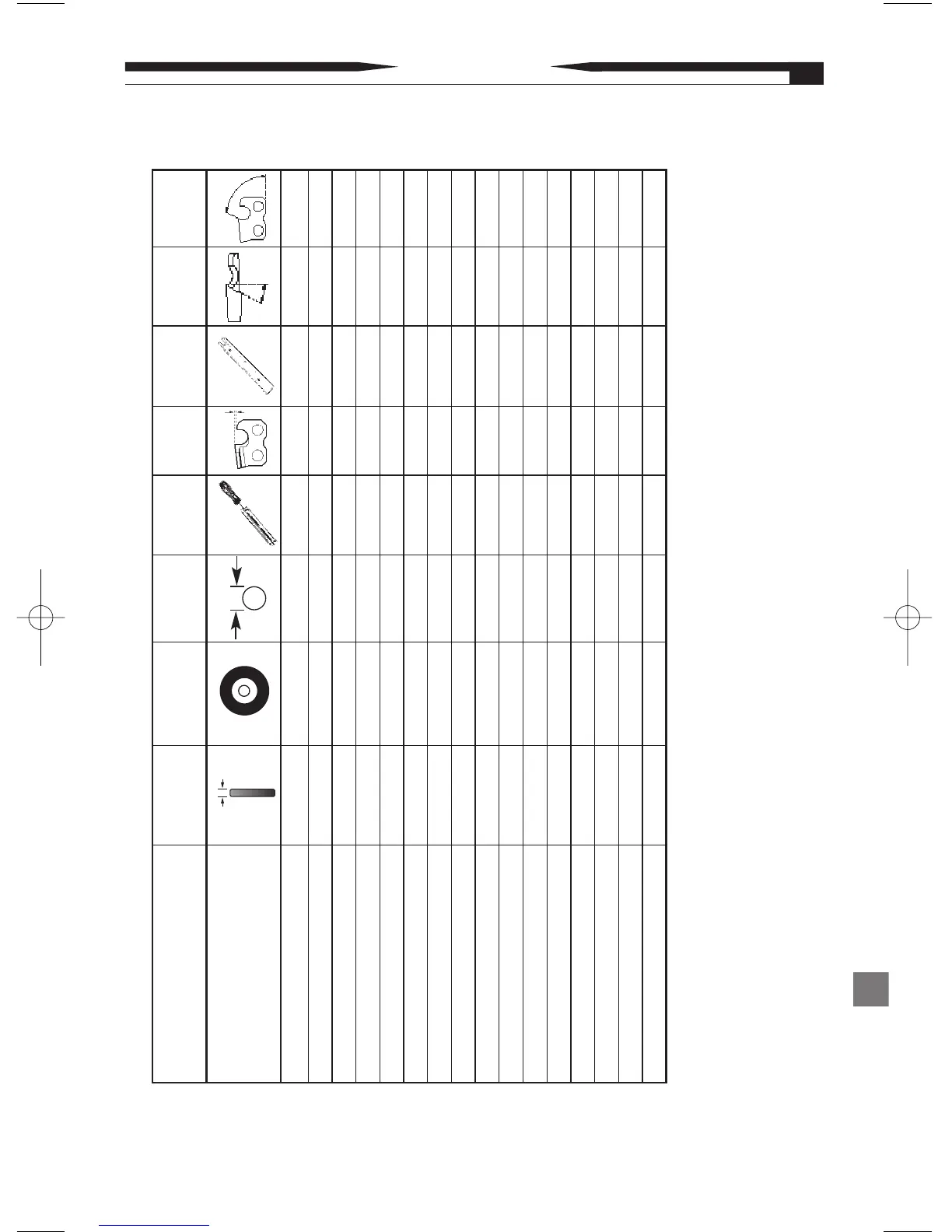

GRINDING CHART
17
*Optional file size 5/32" (4.00mm) file and P/N 37534. For depth-gauge, use Oregon
®
flat file P/N 12211
*Note: Chart to be used for general maintenance reference only.
*Note: Vise on Bench Mounted Mini Grinder does not tilt. Grind head is set at 60° for top-plate cutting angle.
GRINDING GRINDING FILE DEPTH TOP PLATE SIDE
CHAIN WHEEL WHEEL FILE GUIDE DEPTH GAUGE GRINDING PLATE
TYPE WIDTH P/N SIZE P/N GAUGE P/N ANGLE ANGLE
Oregon
®
Chain
Part Number
16H, 18H 3/16" OR4125-316 7/32" 31686 .050" 38850 35° 80°
20, 21, 22BP 3/16" OR4125-316 3/16" 31690 .025" 31941 30° 85°
20, 21, 22JP, LP 3/16" OR4125-316 3/16" 31690 .025" 31941 25° 60°
25AP 1/8" OR4125-18 5/32" 37534 .025" 22290 30° 85°
27, 27A 3/16" OR4125-316 7/32" 31686 .030" 22291 35° 80°
27R, RA 3/16" OR4125-316 7/32" ------- .030" 22291 10°/15° 75°
33, 34, 35LG, SL 1/8" OR4125-18 4.5mm* 31692* .025" 31941 25° 60°
72, 73, 75V 3/16" OR4125-316 7/32" 31686 .025" 31941 25° 60°
72AP, 72, 73, 75DP 3/16" OR4125-316 7/32" 31686 .025" 31941 35° 85°
72, 73, 75JG, JP, LG, LP 3/16" OR4125-316 7/32" 31686 .025" 31941 25° 60°
72, 73, 75RD 3/16" OR4125-316 7/32" ------- .025" 31941 10°/15° 75°
90JG, SG 1/8" OR4125-18 4.5mm 31692* .025" 31941 30° 75°
91VG, VJ, VS, P, PJ 1/8" OR4125-18 5/32" 37534 .025" 31941 30° 80°
91R 1/8" OR4125-18 5/32" 37534 .025" 31941 5° 80°
95R 3/16" OR4125-316 3/16" ------- .030" 22291 5° 75°
95VP 3/16" OR4125-316 3/16" 31690 .025" 31941 30° 80°
Table 2
