Oregon Mini Grinder - Page 19

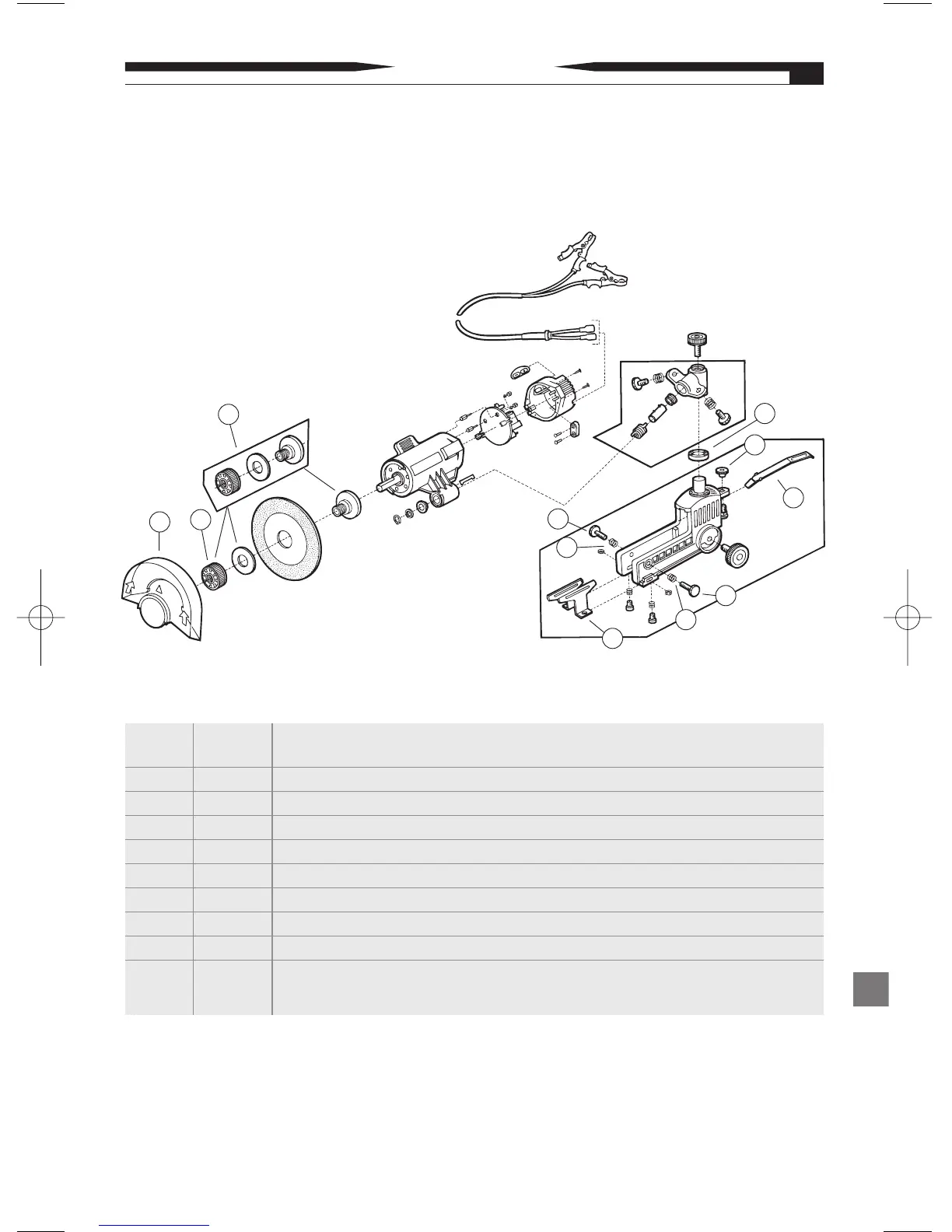

EXPLODED VIEWS
19
12V Bar-Mounted Mini Grinder
3
2
1
9
5
4
7
8
6
7
8
12-VOLT BAR MOUNTED MINI GRINDER (P/N 109178)
Item Part
No. No. Description
1 111941 ALUMINUM ARBOR RETRO FIT KIT
2 109169 PLASTIC FLANGE, OUTER
3 109170 PLASTIC GUARD/SHIELD
4 108206 STOP SPRING
5 108207 MOUNT ADJUSTMENT NUT, STOP SPRING
6 108208 JAW PLATE
7 108209 ADJUSTMENT KNOB, JAW PLATE/STOP
8 108210 TENSION SPRING, JAW PLATE/STOP
9 108289 SWIVEL EXTENSION BLOCK
