Orion c Series User Manual

c Series User Manual
16
2. Pre-Weld Delay Slider: Allows the
user to adjust the time between
trigger and weld.
1. Current Value: Shows the user
what the current value is.
2. Slider Bar: Allows the user to
adjust the value.
3. Minimum Value: Shows the user
the lowest amount the slider can
go.
4. Title: Shows the user what
setting they are adjusting.
5. Maximum Value: Shows the user
the highest amount the slider can
go.
3. Post-Weld Shutter Delay Slider: Allows the user to adjust the amount of time it takes the shutter to return to normal
after a weld has occurred.
1. Current Value: Shows the user what the current value is.
2. Slider Bar: Allows the user to adjust the value.
3. Minimum Value: Shows the user the lowest amount the slider can go.
4. Title: Shows the user what setting they are adjusting.
5. Maximum Value: Shows the user the highest amount the slider can go.
4. Lift-off Delay Slider: Allows the user to adjust the amount of time the welder waits before retracting the tip.
1. Current Value: Shows the user what the current value is.
2. Slider Bar: Allows the user to adjust the value.
3. Minimum Value: Shows the user the lowest amount the slider can go.
4. Title: Shows the user what setting they are adjusting.
5. Maximum Value: Shows the user the highest amount the slider can go.
5. Exit Button: Exits out of the settings screens and returns to the last screen the user was on.

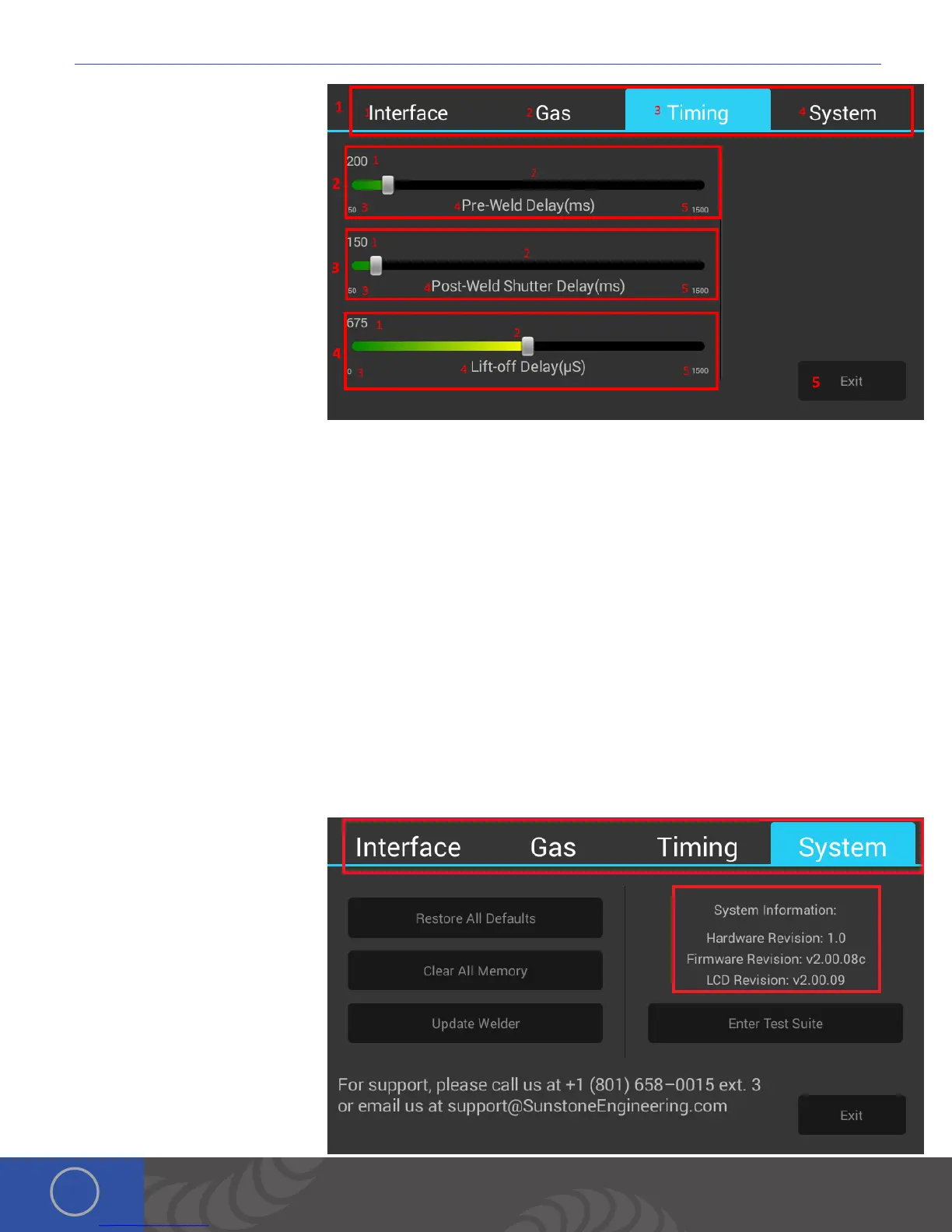

Settings: Timing Screen
1. Top Navigation Bar: Allows the user
to change screens.
1. Interface Button: Switches the
screen to the Interface screen.
2. Gas Button: Switches the screen
to the Gas screen.
3. Timing Button: Switches the
screen to the Timing screen.
4. System Button: Switches the
screen to the System screen.
2. Restore All Defaults Button: Allows
the user to reset all of the welders
settings
1
1 2 3 4
2
3
4
5
1
2
3
6
7
