2. Lifting using slings or chains xed to the lifting supports
on the sides of the top of the cubicle. The angle of pull
should be as vertical as possible (with an angle greater
than 60° from the horizontal).

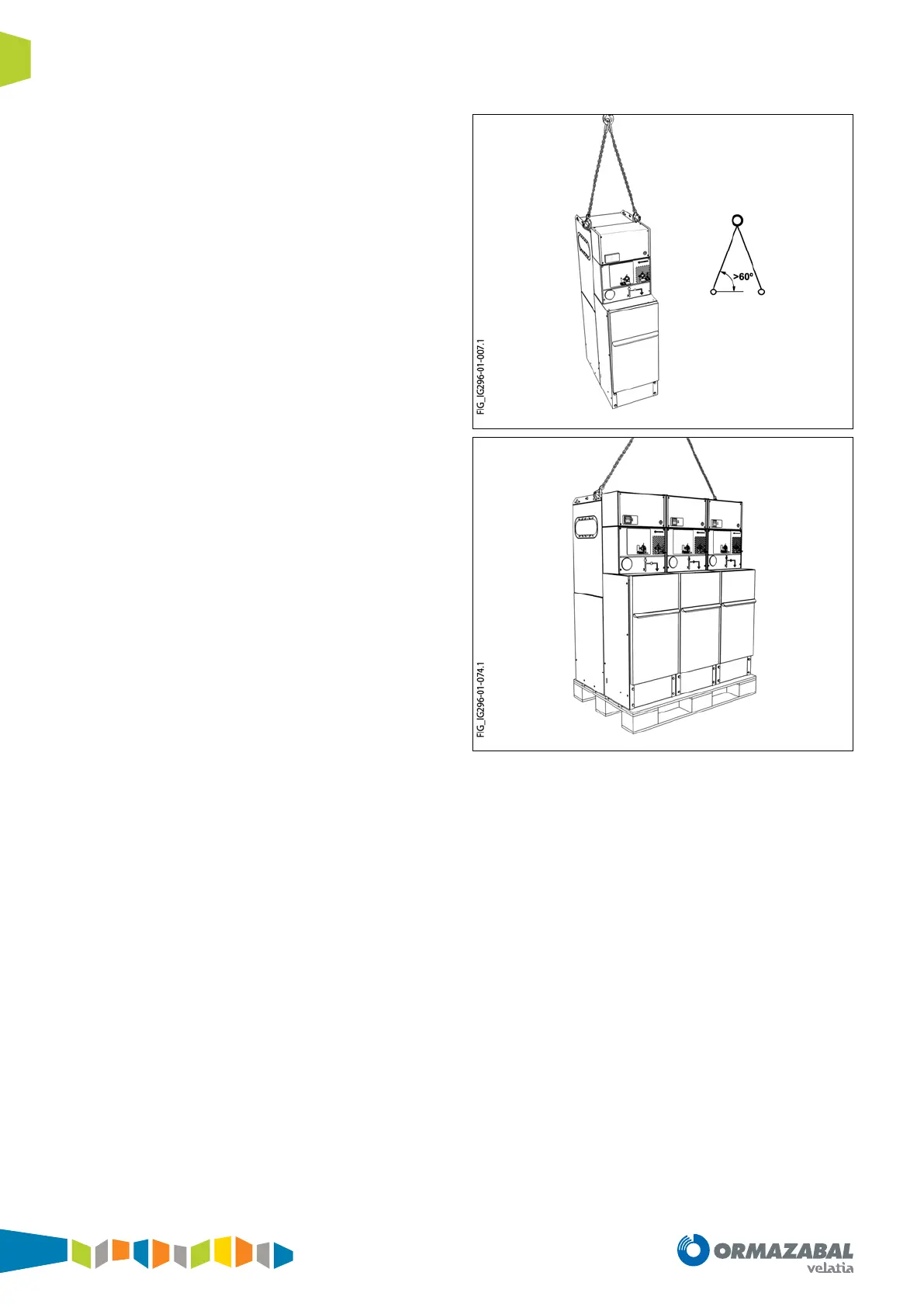

Figure 2.2. Lifting cgmcosmos cubicles with chains
3. If it is not possible to lift using the aforementioned
methods, rollers may be used underneath the
switchgear. Another option is to slide the cubicles over
rods (these same rods can be used to help get over the
cable trench).
IG-296-EN version 01; 12/03/2020
14
Handling and transport General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
