5.3. Fuse protection function with AR driving mechanism

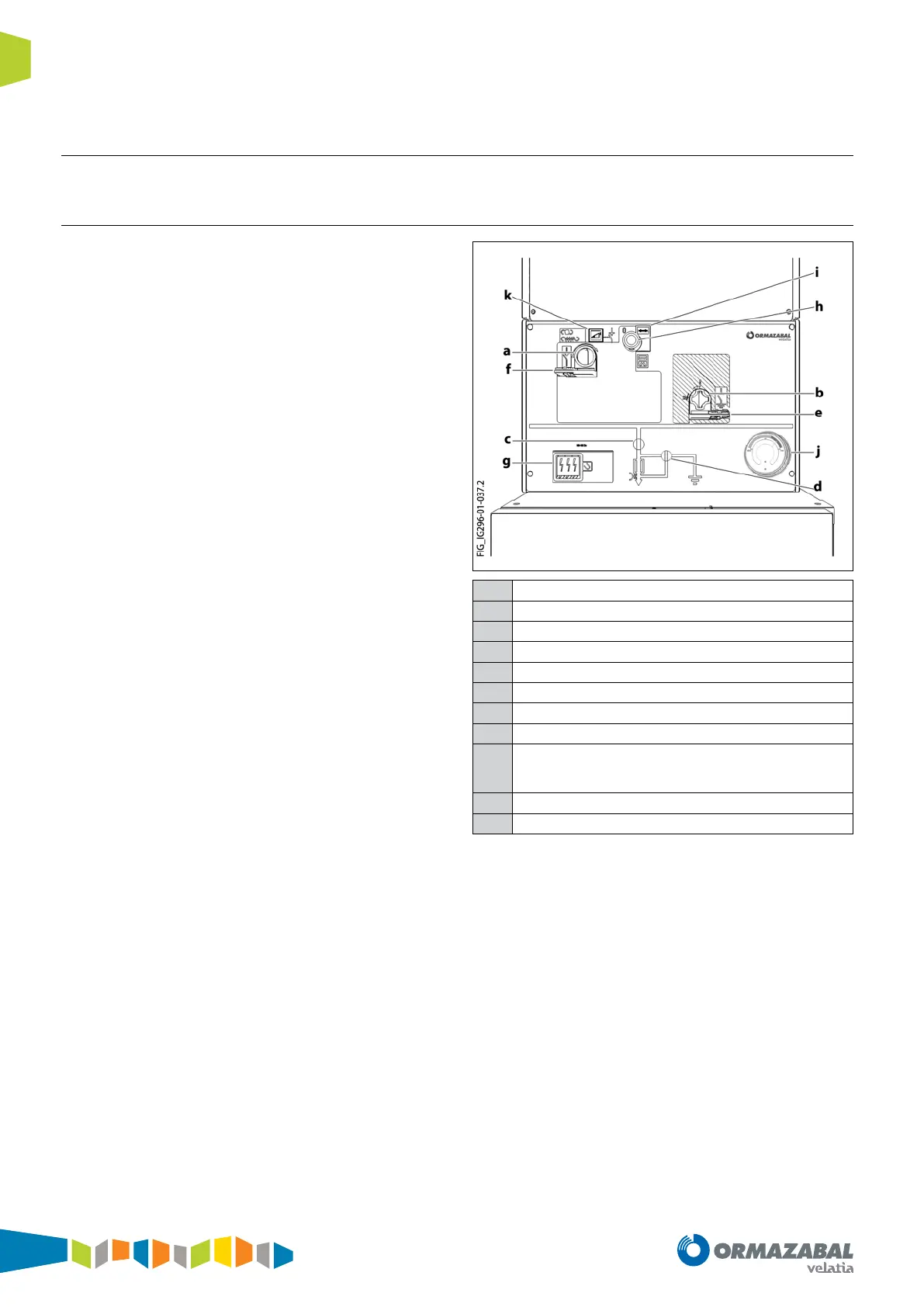

5.3.1. Mimic diagram
The AR driving mechanism has a stored energy operating
system. The opening operation uses the energy stored
during the closing operation, whether manual or motorised.
This energy is retained by means of a latch device. It can
then be released during the opening operation by manually
driving this latch device. The operation speed and strength
are independent of the action of the operator.
a
Switch-disconnector operation.
b
Earthing switch operation.
c
Switch-disconnector status indicator.
d
Earthing switch status indicator.
e
Earthing switch locking with a padlock.
f
Padlock locking of switch closing and spring charge operations.
g
LRM-VDS system according to NBN EN 61243-5
h
Manual trip operation.
i
Fuse status indicator:
GREEN: Voltage.
RED: Striker tripped.
j
Pressure gauge viewing window.
k
Spring charge indicator.
Figure 5.12. AR driving mechanism detail
IG-296-EN version 01; 12/03/2020
42
Recommended sequence of operations General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
