4.9. Vertical front connection
Bottom output connection: Straight terminal
1. Close the earthing switch.
2. Remove the cover to access the cable compartment
and insert the terminal xing pins in the bushing. Turn
them to allow the terminals to be tted.

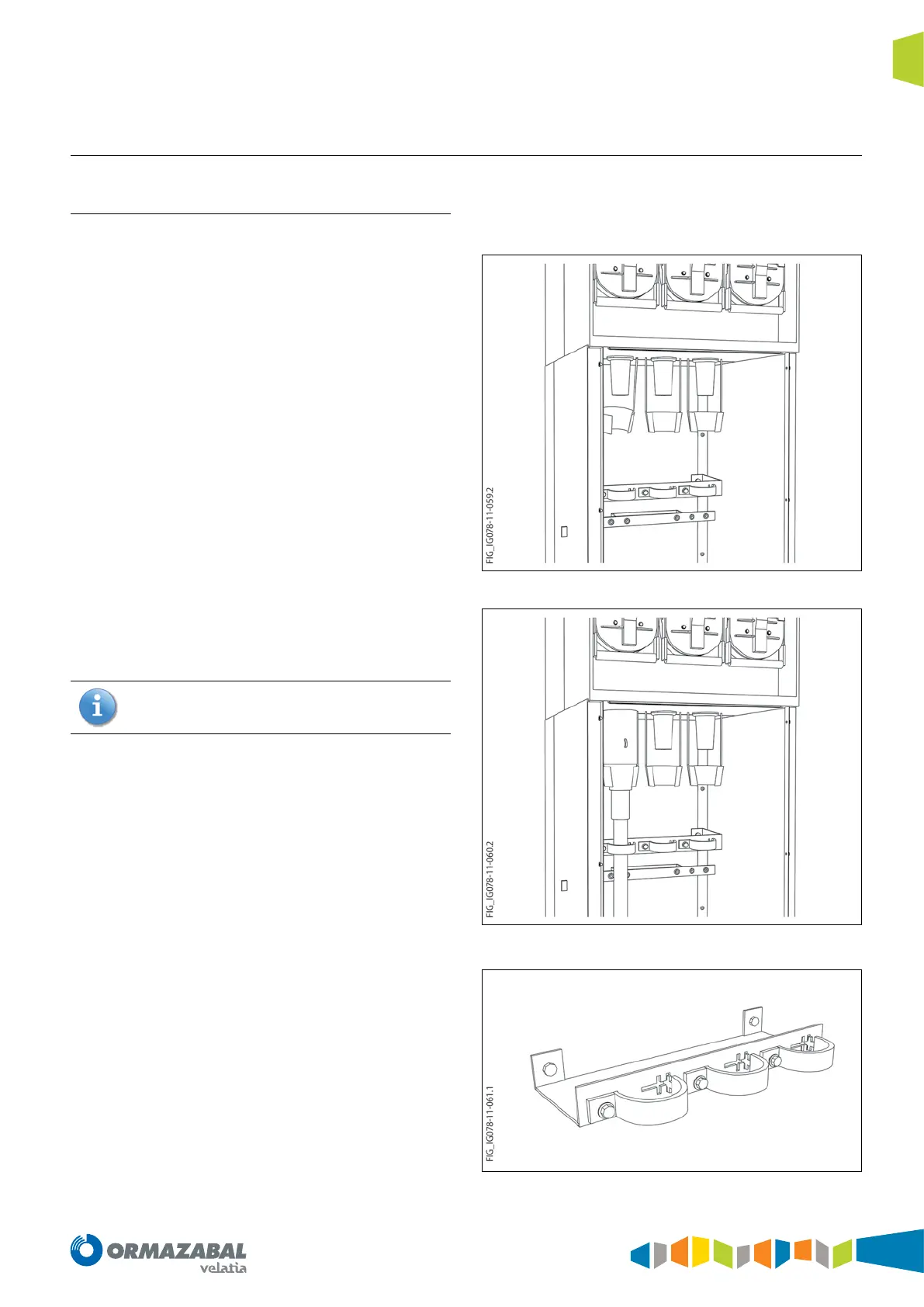

Figure 4.25. Cable compartment detail
3. Connect the terminals on the bushings and adjust the
pins with the tensioner. Also secure the cables using
the cable support and clamp.
The clamp has two positions, depending on the cable
diameter. 4.
Figure 4.26. Cable compartment detail
Figure 4.27. Front connection on cubicle protection functions
IG-296-EN version 01; 12/03/2020
33
General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
Installation
