5.2.4. Switch closing operation from isolating position
1. Move the grey slider to the left (this releases the lever
access so the switch-disconnector can be closed).
2. Connection operation:
a. Manual operation (B driving mechanism). Insert
the lever in the switch access (red area), move the
actuating arm to the end and turn clockwise 90°.
b. Motorised operation (BM driving mechanism).
Activate the corresponding operation command.
When, for any reason, the motor stops halfway through
a motorised operation, before restarting it you must
nish the operation manually, so that the whole
mechanism: sensors, controllers, etc. are in a reliable,
eective and logical position for the control system of
the motorised unit when it is switched back on.

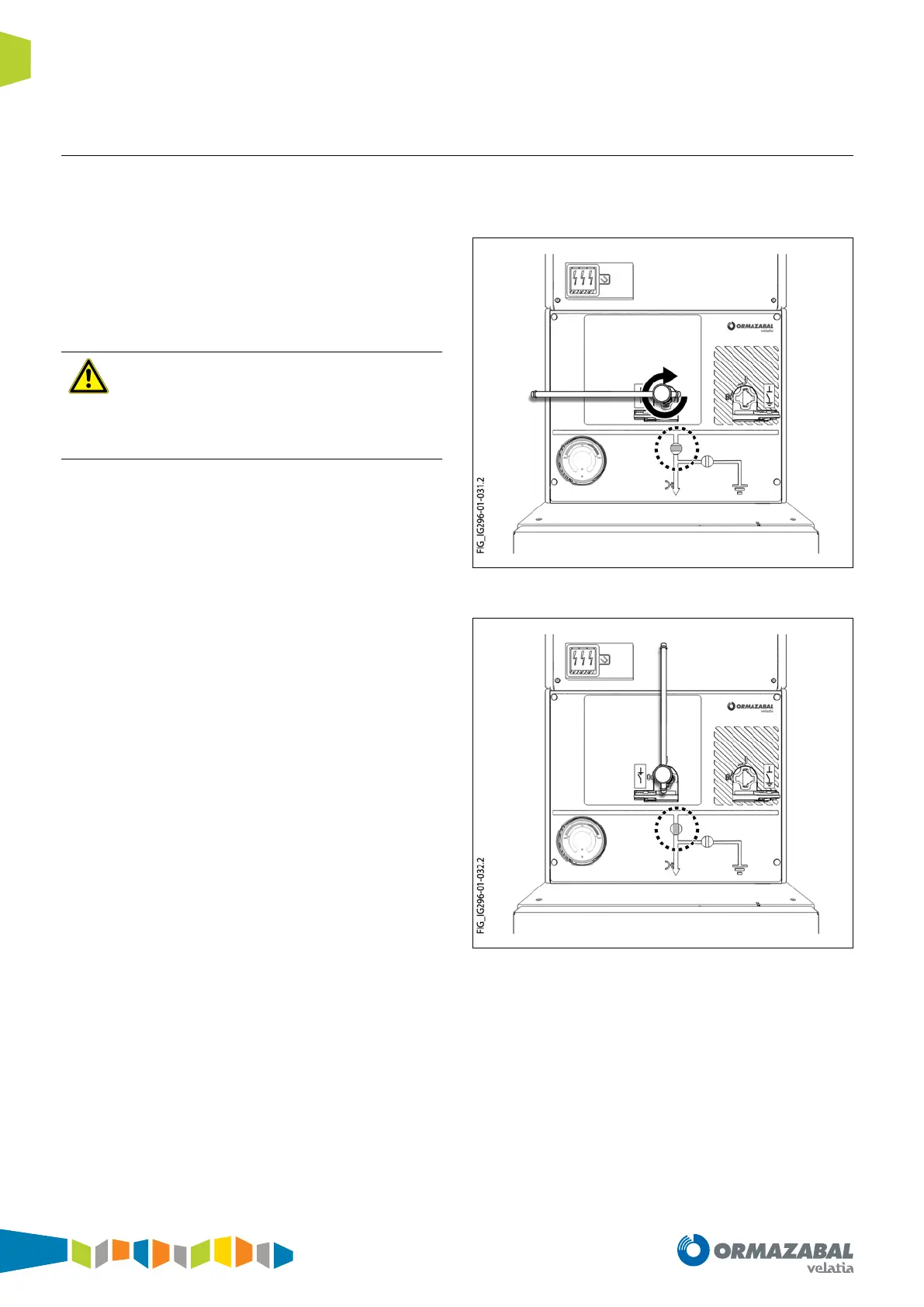

Figure 5.6. Lever turn process
3. Verify that the cubicle is in closed position.
Figure 5.7. Switch-disconnector closed
IG-296-EN version 01; 12/03/2020
38
Recommended sequence of operations General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
