4. Installation
4.1. Unpacking the equipment
[4]
It is advisable to cut the cellophane at the rear of the cubicle or at the corner to avoid scratching the surface.
The cgmcosmos system switchgear is supplied as standard
protected by plastic packaging.
On receiving the equipment, check that the goods supplied
correspond to the order and associated documentation. If
this is not the case, contact Ormazabal immediately.
The disassembly process for the equipment is as follows:
1. Using a blade, cutter or similar tool, cut the cellophane
the cubicle is wrapped in.
[4]
2. Completely remove the cellophane.
3. Detach the white polystyrene corner pieces.
4. Unscrew the xings between the base and the pallet.
5. Remove the pallet, handling the cubicle as indicated in
section 2.1.
6. Unpack the accessories box in the front section or on
the top of the cubicle.
7. Remove the self-adhesive protective plastic from the
cable compartment cover.
The self-adhesive plastic must be removed from the
cable compartment cover so that the equipment
enclosure's earth connection may have the proper
electrical continuity.
8. Dispose of any waste in an environmentally-friendly
manner.
It is advisable to make a visual inspection of the equipment
to check whether it has suered any damage in transit. If
damaged, contact Ormazabal immediately.
4.2. Location of accessories during transport
A number of accessories are supplied with the cubicles,
located as indicated in the gures below:

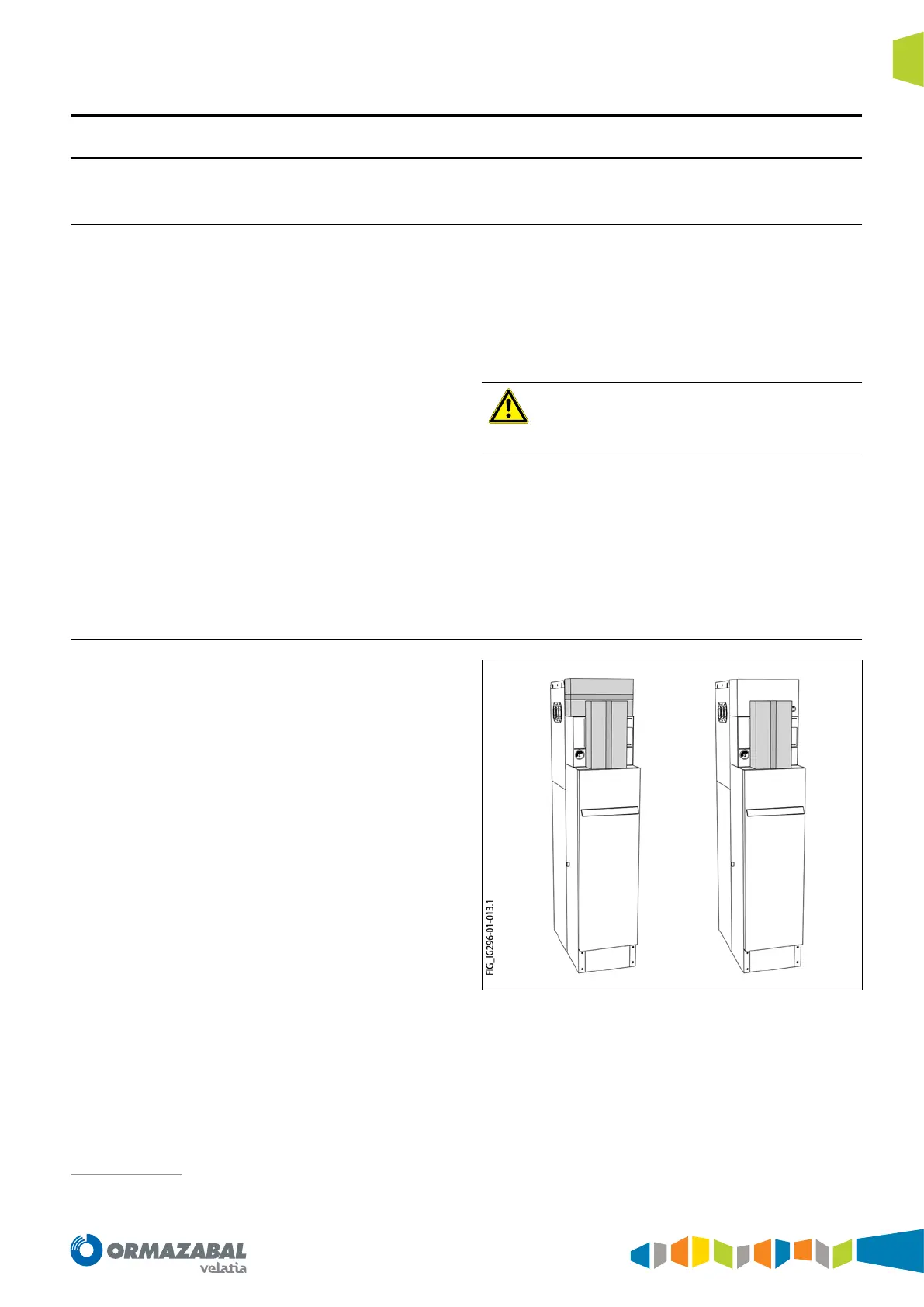

Figure 4.1. Location of accessories in transport in unifunctional
cgmcosmos cubicles
IG-296-EN version 01; 12/03/2020
17
General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
Installation
