Ormazabal cgmcosmos-p User Manual

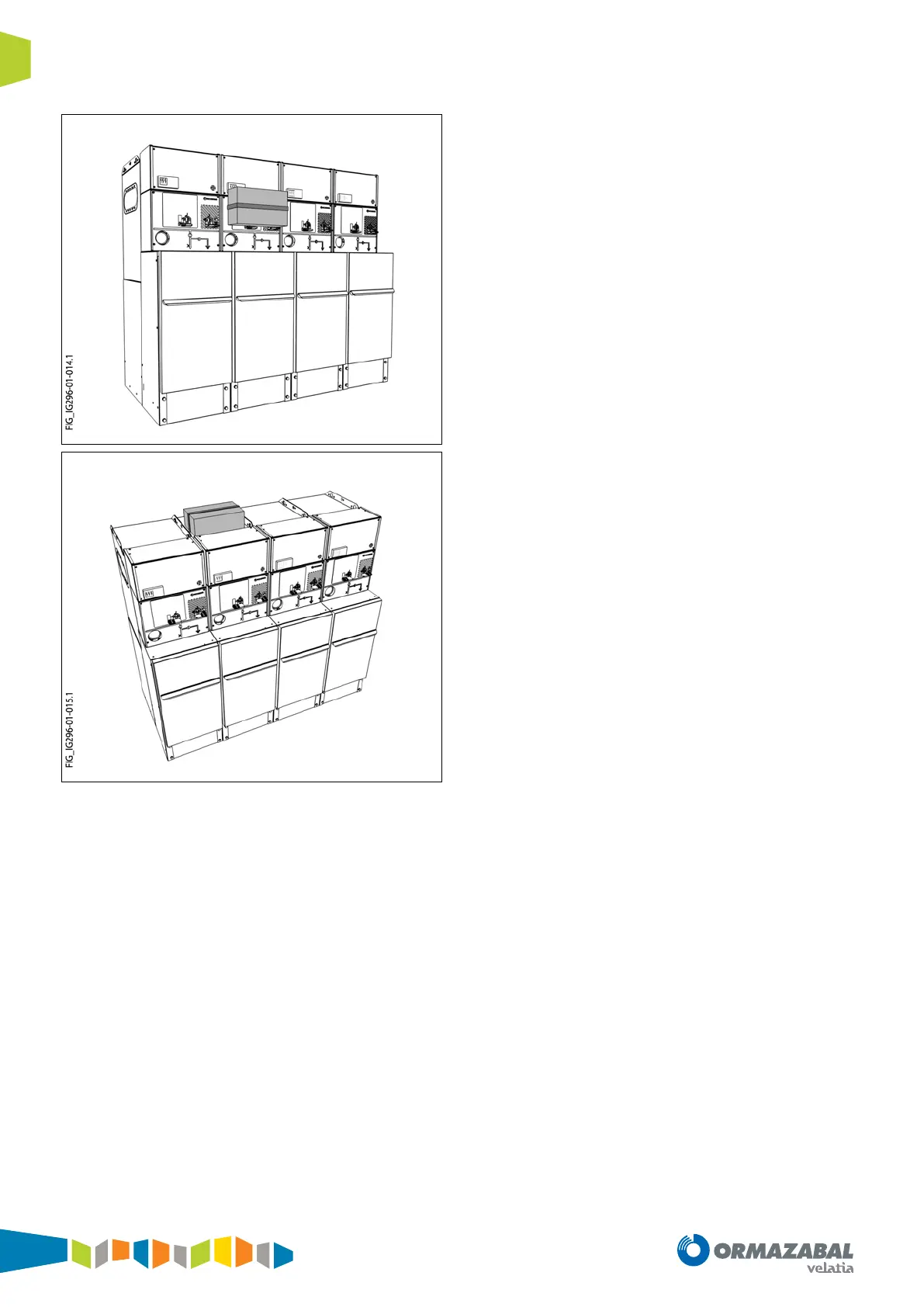

Figure 4.2. Location of accessories in transport in multifunctional
cgmcosmos cubicles
Depending on the cubicle model, the accessory box
contains some of the following items:
1. Ormazabal's IG-296 General Instructions document
2. Actuating lever
3. Spring charge lever
4. Cubicle connecting kit:
a. Springs
b. Grease
c. Earthing strip
5. End plug kit:
a. Cubicle end assembly
b. Nylon thread
c. Plastic plugs
d. Side cover
6. Side cover
7. Floor fastening assembly
IG-296-EN version 01; 12/03/2020
18
Installation General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
