4. Connect the terminal earth braids, if applicable, and the
cable screens.

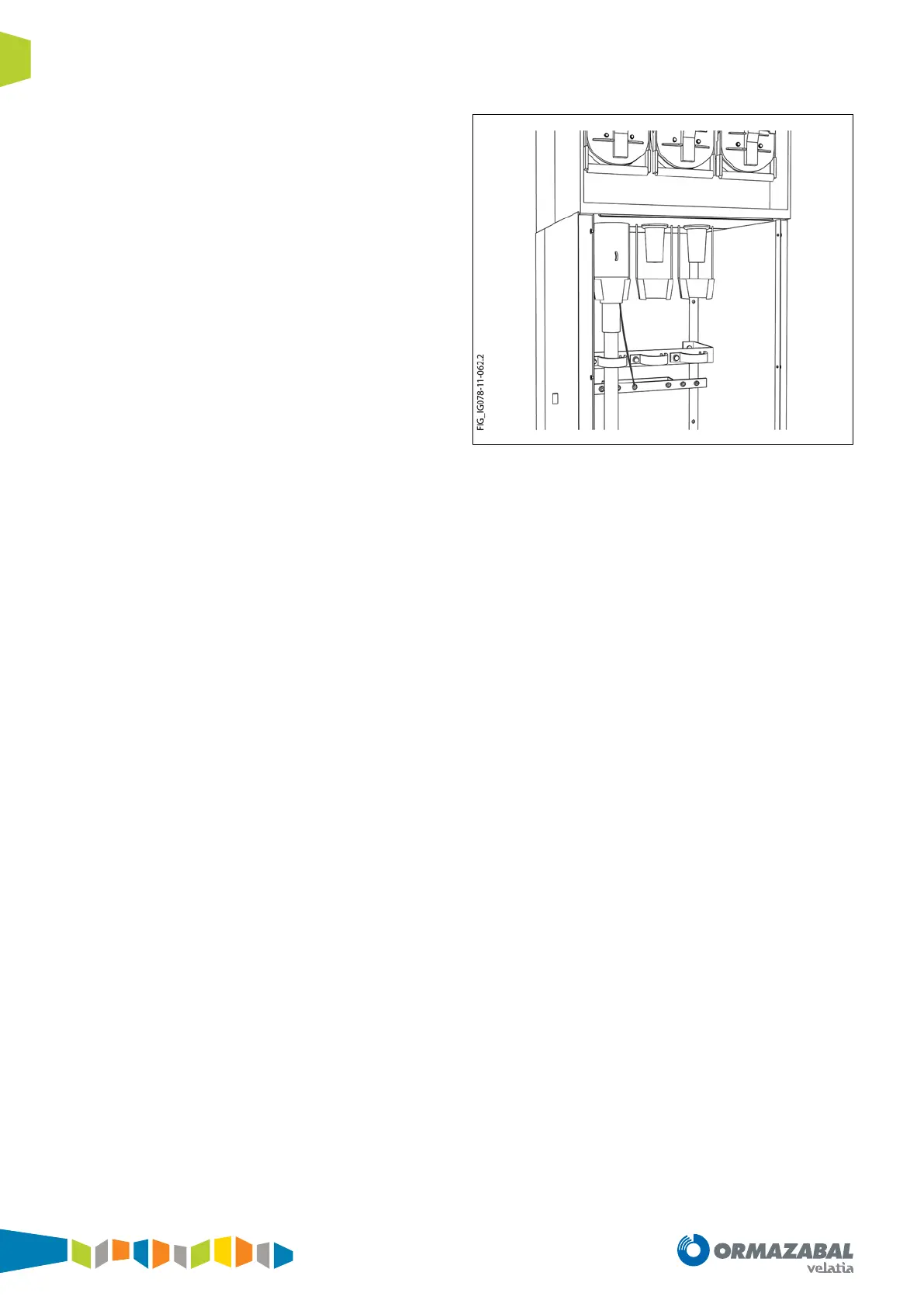

Figure 4.28. Earth connector
5. Put the cable compartment cover back in place.
IG-296-EN version 01; 12/03/2020
34
Installation General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
