10. Lower the handle of the fuse holder by pushing it until
the safety trigger engages.

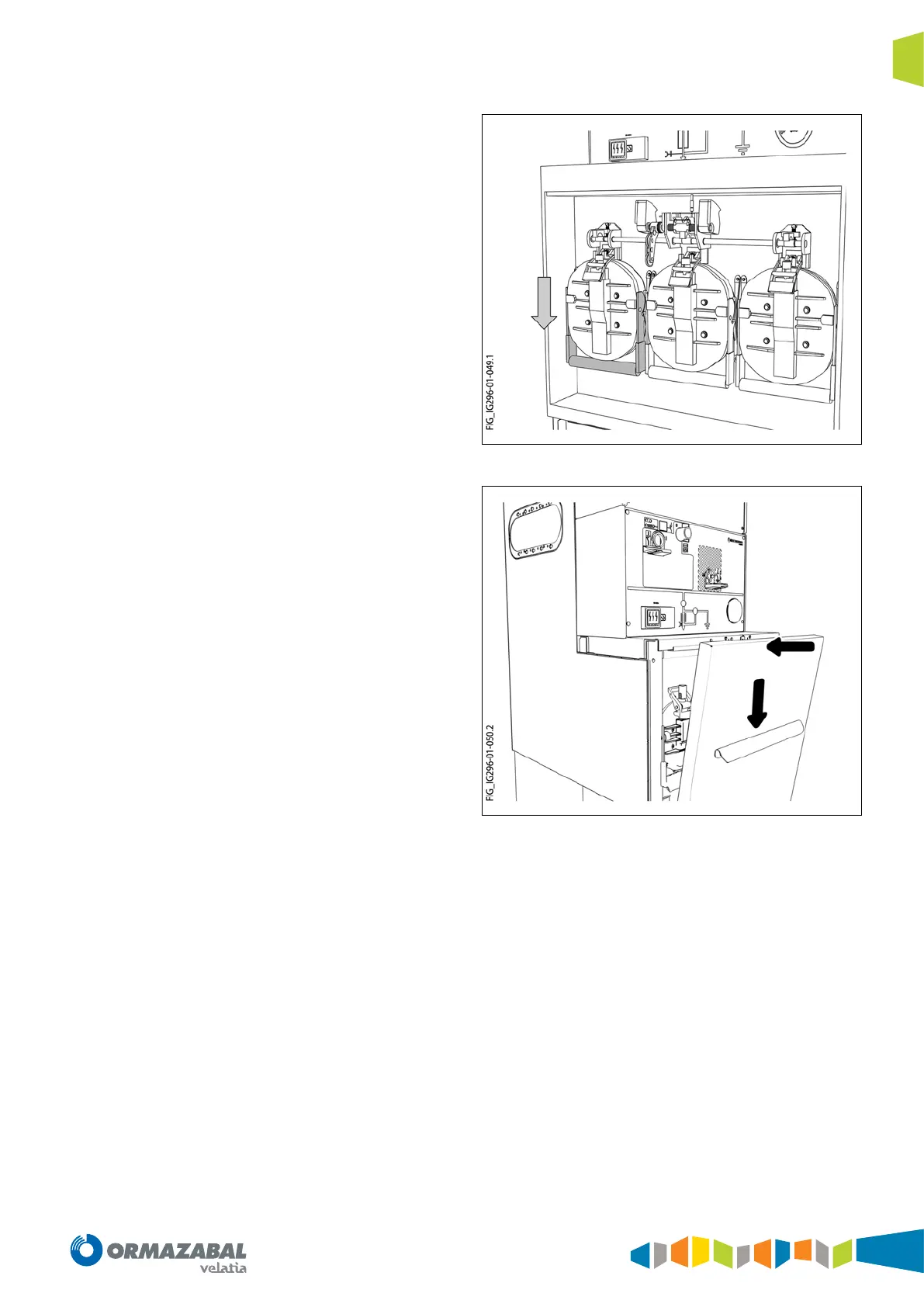

Figure 5.27. Close the fuse holder
11. To close the cover, rst ensure that the clip is properly
engaged and that the fuse holder is in the correct
position. Fit the fuse and cable compartment access
cover by pulling it upwards until it is removed from its
position.
Figure 5.28. Cable compartment cover close
12. Put the cubicle into commission.
