3. Insert the lever in the switch-disconnector actuating
shaft and turn clockwise.

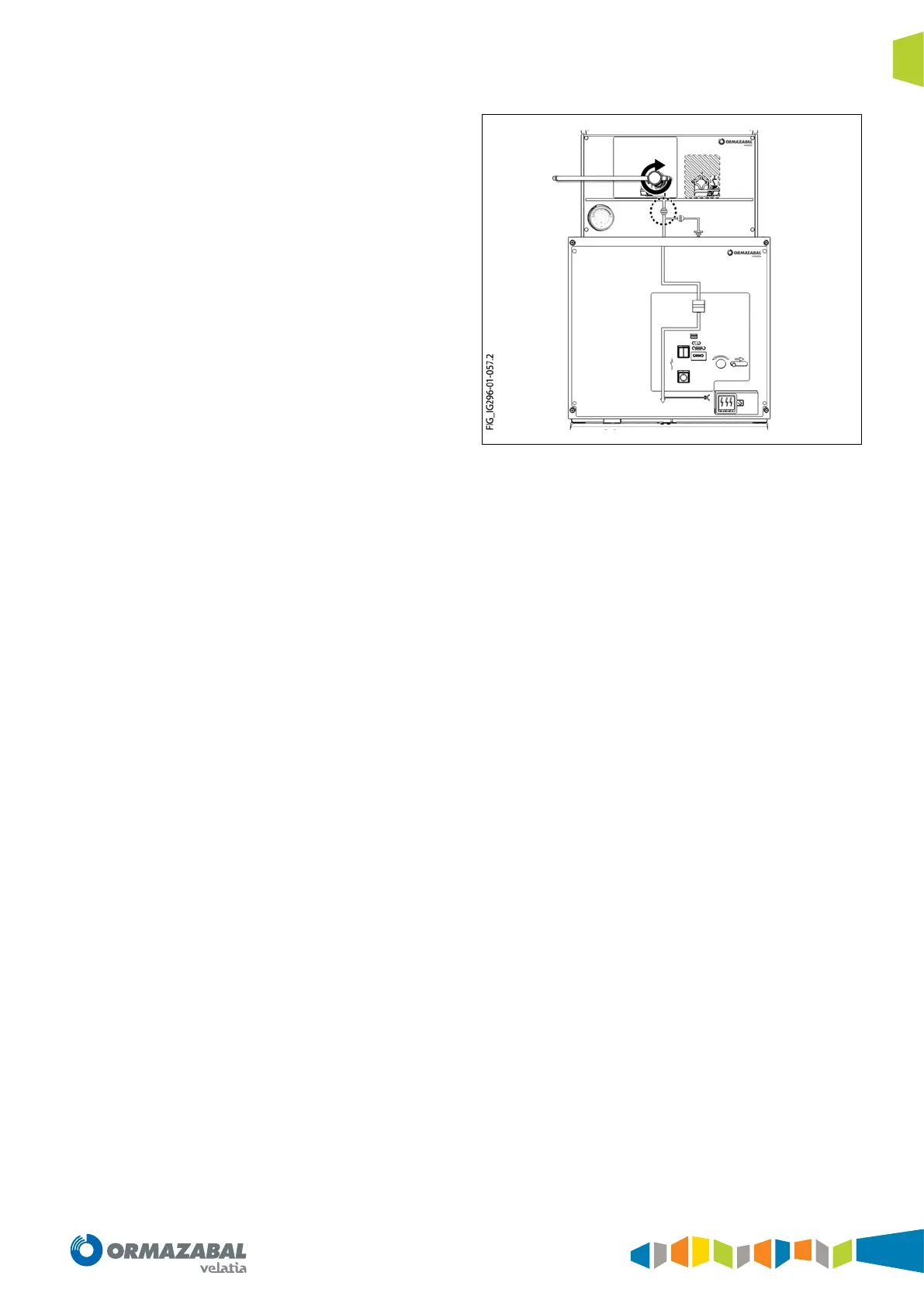

Figure 5.37. Lever turn detail
4. Remove the lever and move the handle back to its
original position.
5. Charge the springs by introducing the spring charging
lever in the spring charge shaft (k) and turn until the
charged spring indicator changes status.
IG-296-EN version 01; 12/03/2020
55
General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
Recommended sequence of operations
