Sequence to remove the interlock
1. Insert the key in the corresponding interlock and turn it
in the direction indicated on the mimic diagram of the
cubicle until it reaches the stop piece.
Now the corresponding position indicator is unlocked.

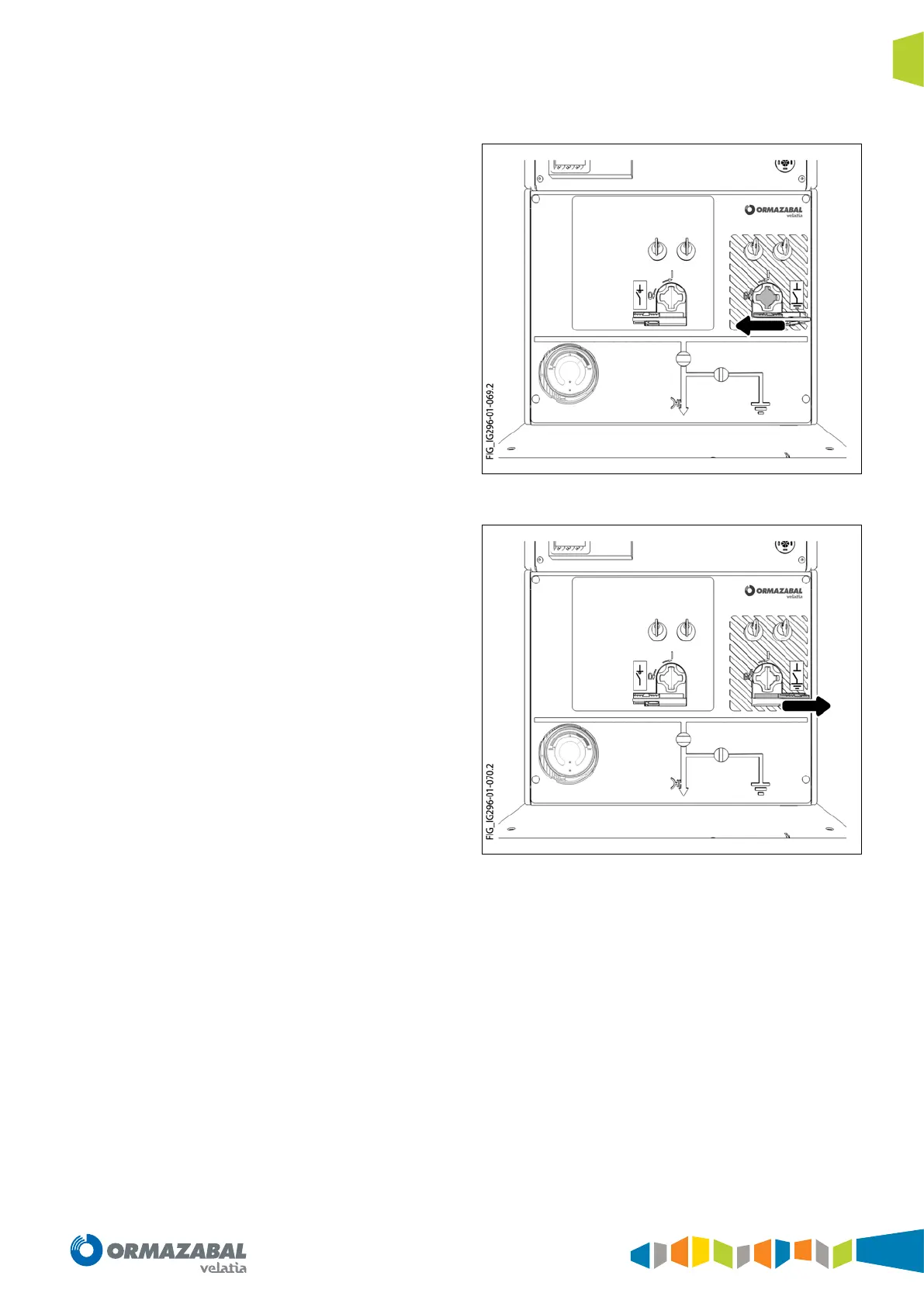

Figure 6.49. Locked lever access detail
2. Move the position indicator (yellow for the earthing
switch actuation shaft or grey for the switch-
disconnector actuation shaft) until it completely
uncovers the access to the lever in the actuation shaft.
Figure 6.50. Released lever access detail
3. Carry out the required operation as shown in section
“5. Recommended sequence of operations” of this
Ormazabal IG-296 instructions manual.
