Setup Manual - Butler XT2

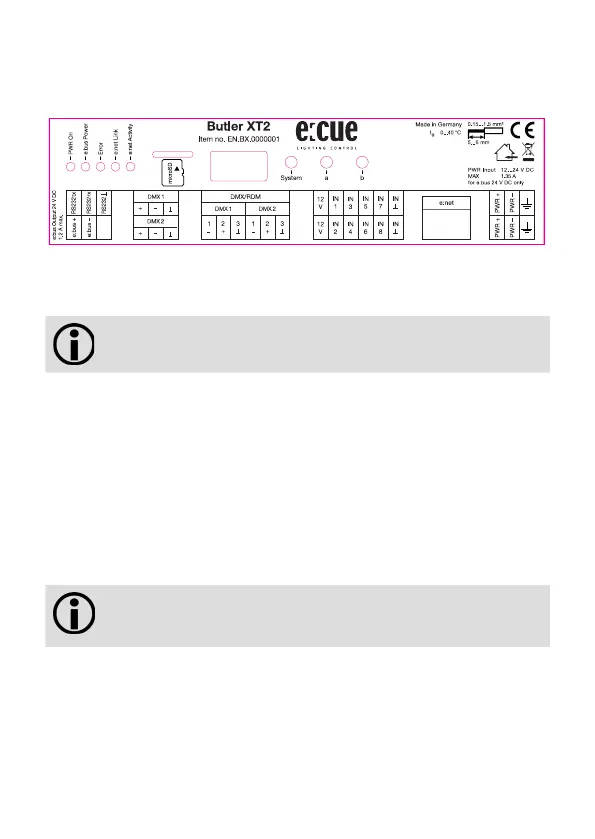

Connector panel
Power
The Butler XT2 must be powered by an external AC/DC Power Supply.
Power over Ethernet and Power over DMX are not supported.
Always use an external power supply.
The power supply must meet the following requirements:
y Output Voltage: 24 V DC
y Output Current: >= 1.4 A
Always connect protective ground with the appropriate terminal in the power supply
section.
e:net
Use standard shielded CAT5 (RJ45) network cabling for e:net.
Please remember that e:net requires an isolated network segment
and cannot operate properly when using e.g. internet or video/au-
dio streaming in the same network simultaneously.
