5.4 Preparing the base plate
䡵 Carefully transport the OTT Pluvio
2
S to the installation location in the closed
shipping carton
䡵 Open the shipping carton and remove the acceptance certificate (FAT), the
p
olybag including installation accessories and possibly further existing
accessories.
䡵 Remove the pipe housing with collecting bucket and put it first aside.
䡵 Remove and open the inner carton (consider the hints on the carton) and
r
emove the shaped foam part
䡵 Remove the base plate from the inner carton and carefully place it on a flat
s
urface. Please note: Do not use the load cell or bracket for the bucket
support to lift the base plate!
Base plate
Bracket bucket support
Load cell
Highly sensitive
electronic weighing
mechanism – handle
with care!

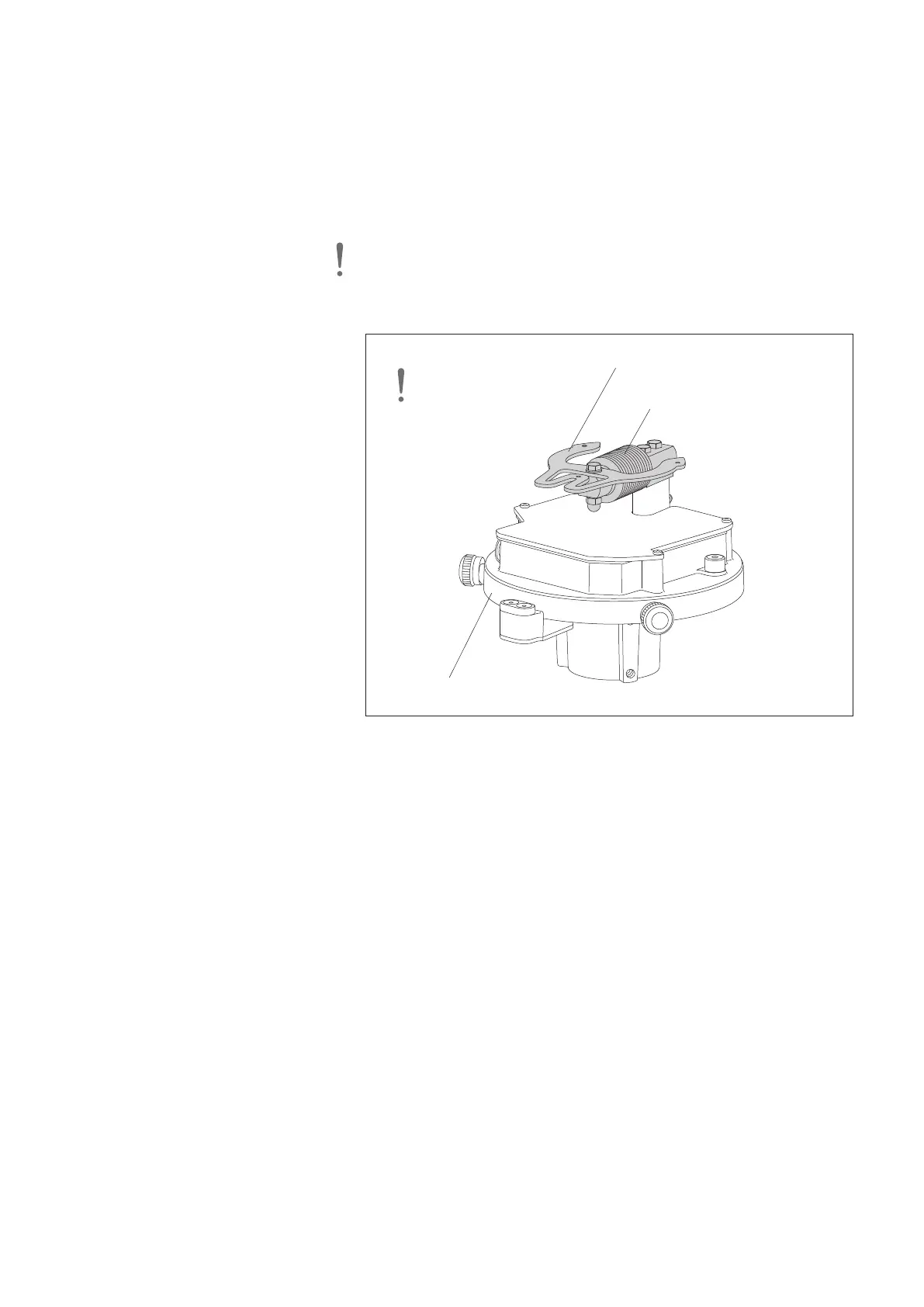

Fig. 8: OTT Pluvio
2
S base plate.
19
