57
7.6 Canopy

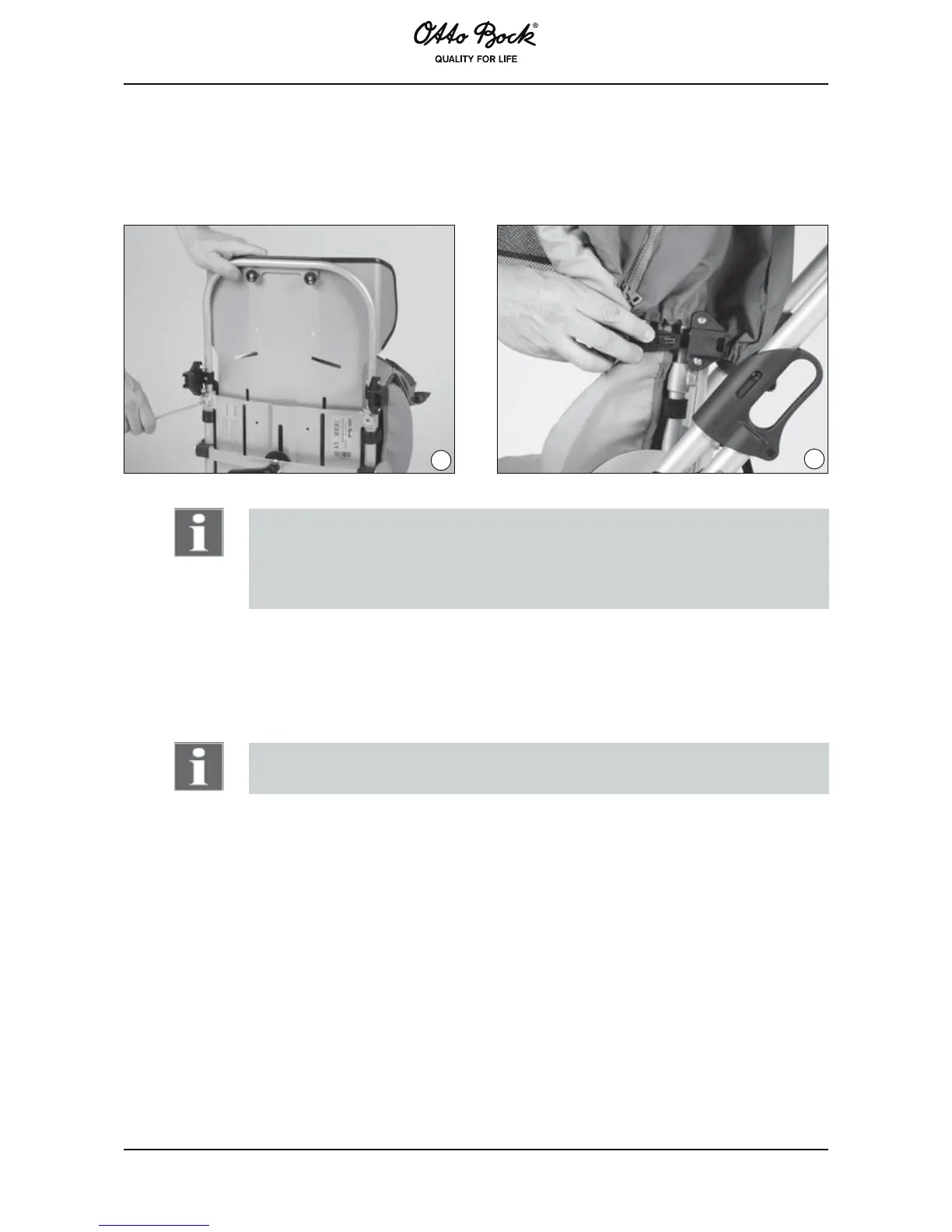

First mount the canopy adapters to the back insert (Fig. 29). Connect or separate the canopy
using only the male side of the quick-release buckle (Fig. 30, item A). For angle adjustment of
the canopy, adjustable ratchet joints are used (Fig. 30, item B).
29
30
A
B
Note:
The sun canopy/rain canopy should be removed prior to folding the rehab buggy, in
order to prevent any damage to the canopy.
If the sun canopy/rain canopy remains attached to the rehab buggy over a longer
period of time, there is a risk of damage to the fabric.
7.7 Canopy with Rain Cover
Take the rain cover out of the net bag attached to the wrap, unfold the rain cover, pull it over the
unfolded canopy and put it over the footrest assembly.
Attention!
The backrest may not recline correctly when the canopy with rain cover are in use.
7.8 Fixation Vest
To attach the fixation vest straps, rivet (from inside to outside) the six cam-lock buckles to the
outside of the back basis (Fig. 31, item A). Use countersunk head rivets. Thread the shoulder
straps of the fixation vest through the openings in the back padding to the rear. The center “axil-
lary straps“ must be threaded at the appropriate height between the back frame tube and back
plate (Fig. 31, item B).
Thread the lower straps between seat and back to the rear, through the roll loop (Fig. 23). Thread all
straps through the open cam-lock buckles and clamp in position by closing the hinged cam.
