7.18 Frame Padding

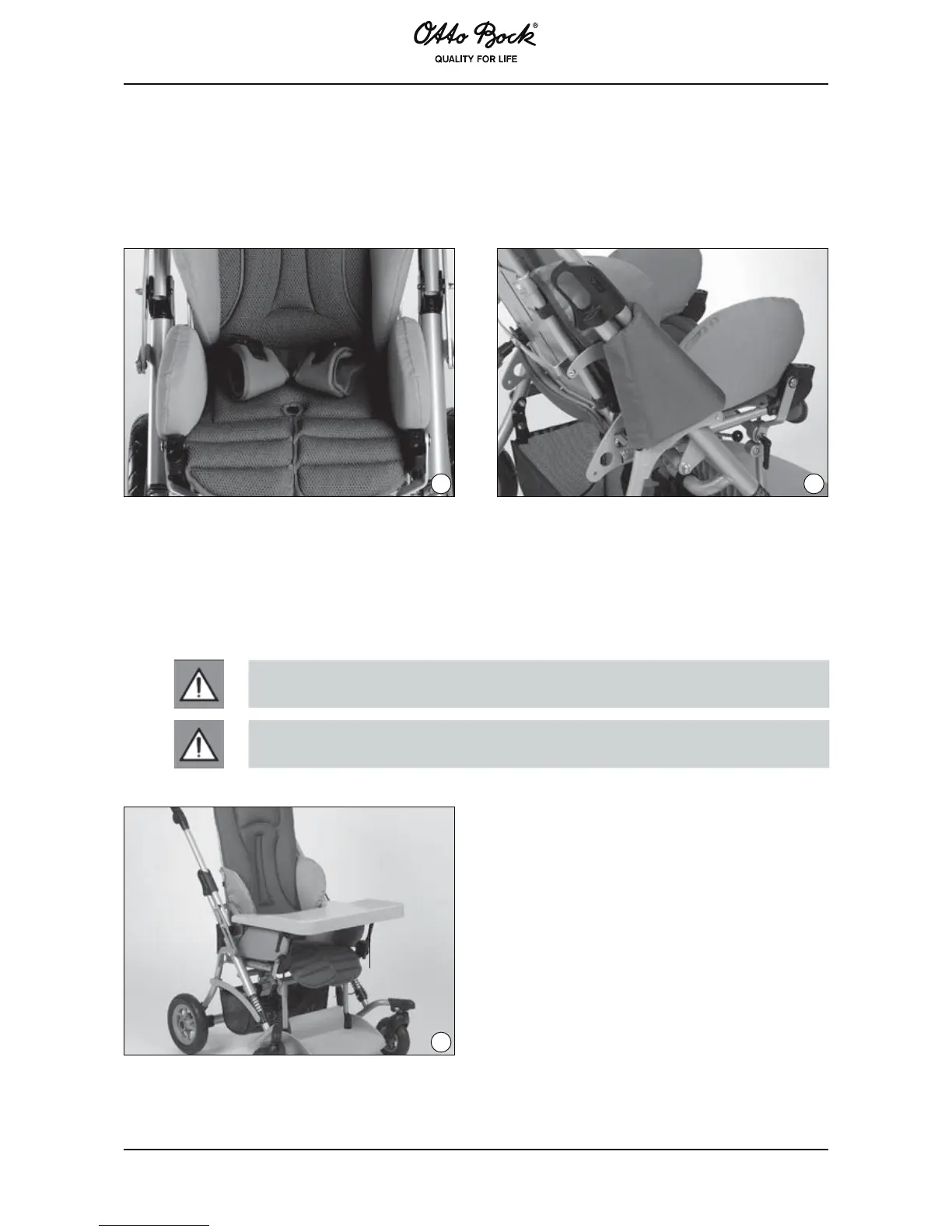

Fit the frame padding (Fig. 49) around the pushbar and close the hook & loop strap. Turn the
hook & loop closure down and pull the frame padding down over the folding guard and front
frame screw connection. Before folding the outdoor mobility base, lift the padding up until the
folding guard is free.
48 49
7.19 Tray
Snap the tray with the vertical round tubes into the retainers (Fig. 50) on the seating unit. Press
the spring knobs at the same time. The clamping lever
(Fig. 50, item A) adjusts the depth and
angle of the tray plate.
Attention!
The tray can only be used if the seat is mounted in the driving direction.
Attention!
Trays must not be loaded with heavy objects.
