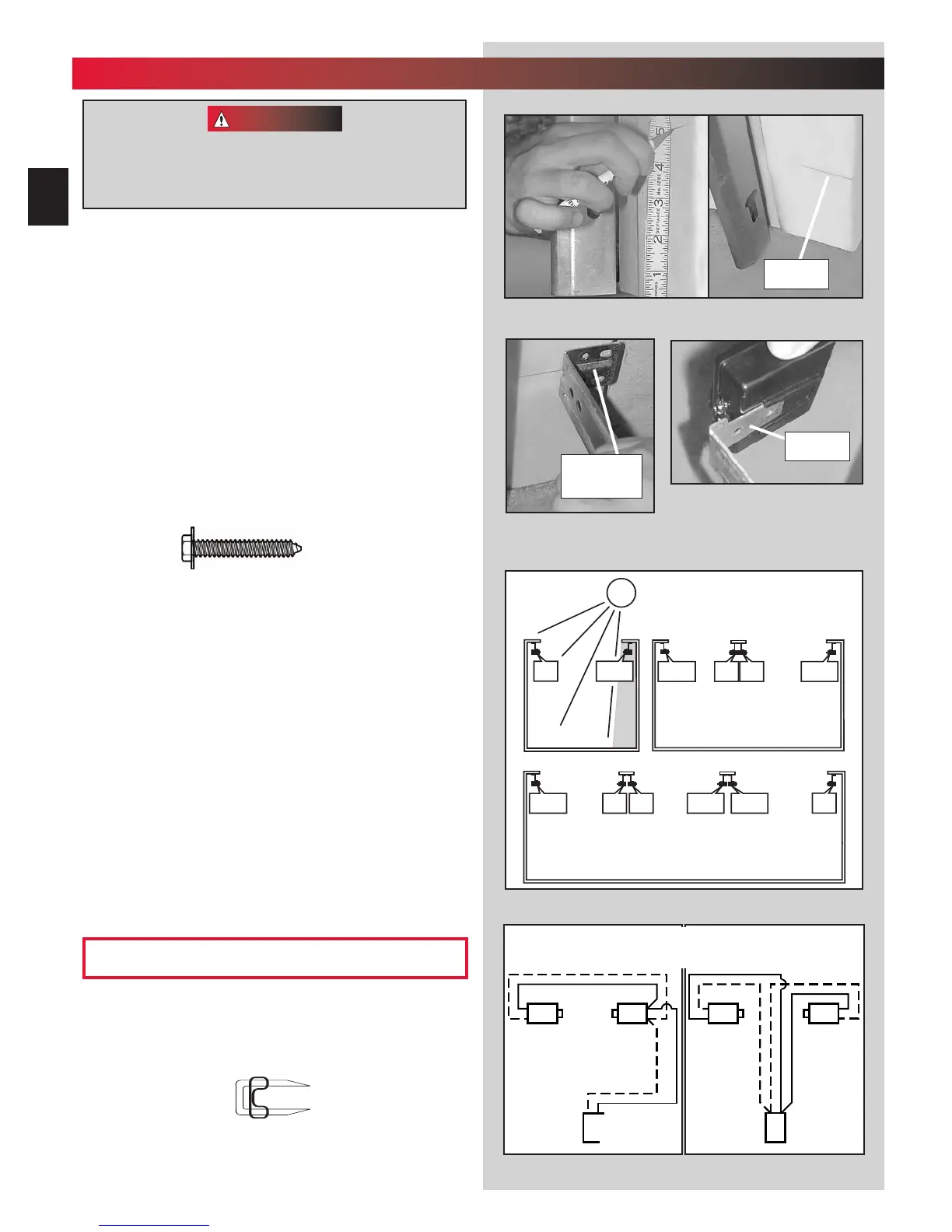

Overhead door CD Series User Manual

NOTE: Mounting brackets can be attached to the floor
using concrete anchors (not provided).
2. M
ounting STB source and sensor.
• If garage has only one garage door.
– Det
ermine which side of garage receives
most direct sunlight (Fig. 3-4).
– Red LED should always be on sunny side
whene
ver possible (Fig. 3-4).
• For multiple doors.
– Preventing crossed signals is critical.
– Place source and sensor modules on
adjac
ent doors facing in opposite directions
(Fig
. 3-4).
NOTE:To helppreventinterferencefrom sun,STB sensors
(green LED) may be plac
ed further away from the door
opening where they will spend more time in shadows.
• Slide source/sensor on
to tongue of bracket
until it clicks into place (Fig. 3-3).
3. Wiring.
• Route wire using either method shown(Fig.3-5).
• Securely fasten wires to wall as you go.
– Use insulated staples (included).
– Staples should be snug only
.
WARNING
NOTE: The operator will not close the door
automatically unless the Safe-T-Beam
®
System is
installed
.
1. Mounting brackets.
• Mark both sides of garage door frame or wall 5”
above floor (Fig. 3-1).
• Hold bracket against door frame or wall.
– Check if brackets extend out from wall far
enough,
so tongue of bracket is beyond door,
tracks or any door hardware.
– If not:
a.
STB bracket extensions are available at
local dealer.
b. Blocks of wood, etc. may be substituted
for extensions.
• Center bracket on your mark (Fig. 3-2).
• Fasten each with 2 screws [
12
7
].
There should be no electrical power to the
op
erator while installing Safe-T-Beam
®
System
wir
es. If you have plugged in the power cord
—UNPLUG IT NOW.
FIG. 3-1 Mark door frame.
FIG. 3-2
Mount brackets.
F IG. 3-3
Attaching STB’s to brackets
.
(See directions on next page and
Figure 3-4 before attaching.)
tongue
mark
center of
bracket
#10-16 x 1-1/4”
FIG. 3-5 STB wiring methods.
Sensor
Source
Red
Green
Power
Head
Sensor
Source
Red
Green
Power
Head
A
B
Dashed Line = striped wire
Solid Line = white wire
FIG. 3-4 STB locations.
SUN
ONE DOOR
GARAGE
THREE DOOR
GARAGE
RED
LED
RED
LED
GREEN
LED
RED
LED
GREEN
LED
GREEN
LED
GREEN
LED
RED
LED
RED
LED
RED
LED
GREEN
LED
GREEN
LED
TWO DOOR
GARAGE
18
3
... SAFE-T-BEAM
®
INSTALLATION
FOR HELP—1-800-929.3667 OR OVERHEADDOOR.COM
OPEN RED PARTS BAG
[
128
]
[
127
]
Insulated staple
