Owon TAO3000 Dual-Channel Series - Page 107

5.Use the Multimeter
101
Interval
Measurement mode
Reference value of the
relative measurements

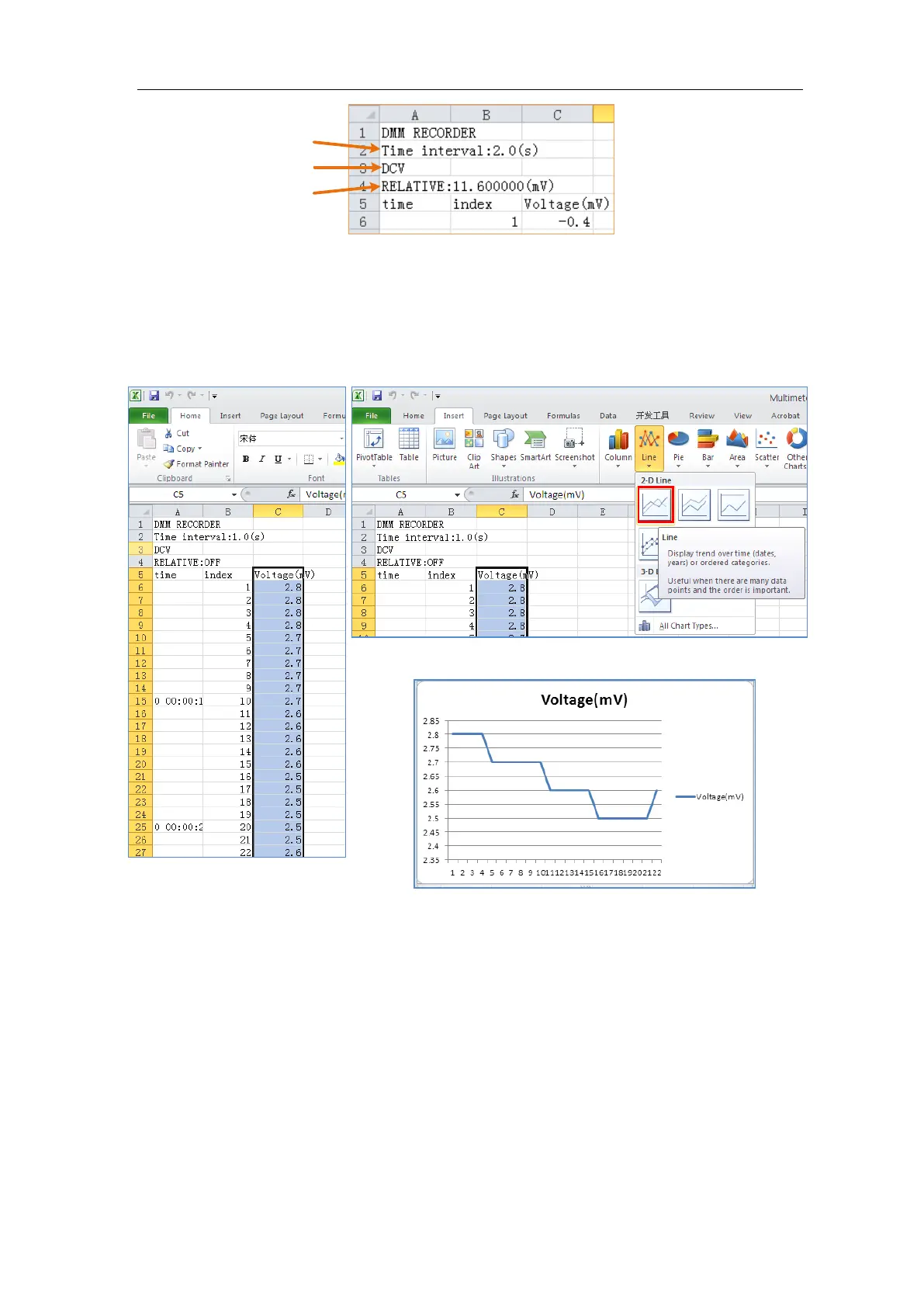

2. Select the data that you want to chart (see Figure 5-4).
3. On the Insert tab, in the Charts group, click Line, and then click Line in 2-D
Line (see Figure 5-5).
4. The chart will be displayed (see Figure 5-6). If you want to keep the chart, save
the file to XLS format.
Figure 5-6
Figure 5-4
Figure 5-5
