4.Advanced User Guidebook
Click or to select the interval between
recorded frames (10ms - 10s)
Record infinitely until the storage medium is full
Refresh wave during recording
Stop refreshing
Begin to record
Stop recording
Note:
Both of the waveforms of Channel 1 and Channel 2 will be recorded. If a
Channel is turned off while recording, the waveform of the channel is invalid in
the playback mode.
To use wave record to external, do as follows:
1. Click to call up the menu panel. Click the Save softkey on panel.
2. Select Type in the bottom menu, in the left menu, select Record.
3. Select Mode in the bottom menu, select OFF in the right menu.
4. In the bottom menu, select Storage as External.
5. Select Mode in the bottom menu, select Record in the right menu.
6. Select FrameSet in the bottom menu, set End frame and Interval in the
right menu. If you want to record wave to external infinitely, select Infinity
in the right menu, the End frame will display “-”.
7. In the bottom menu, set Refresh.
8. In the bottom menu, select Operate as Play.
Connect external device to the computer, and wave_record_0.bin is the
recorded file. Open the software, and do as follows to play back the
waveform.

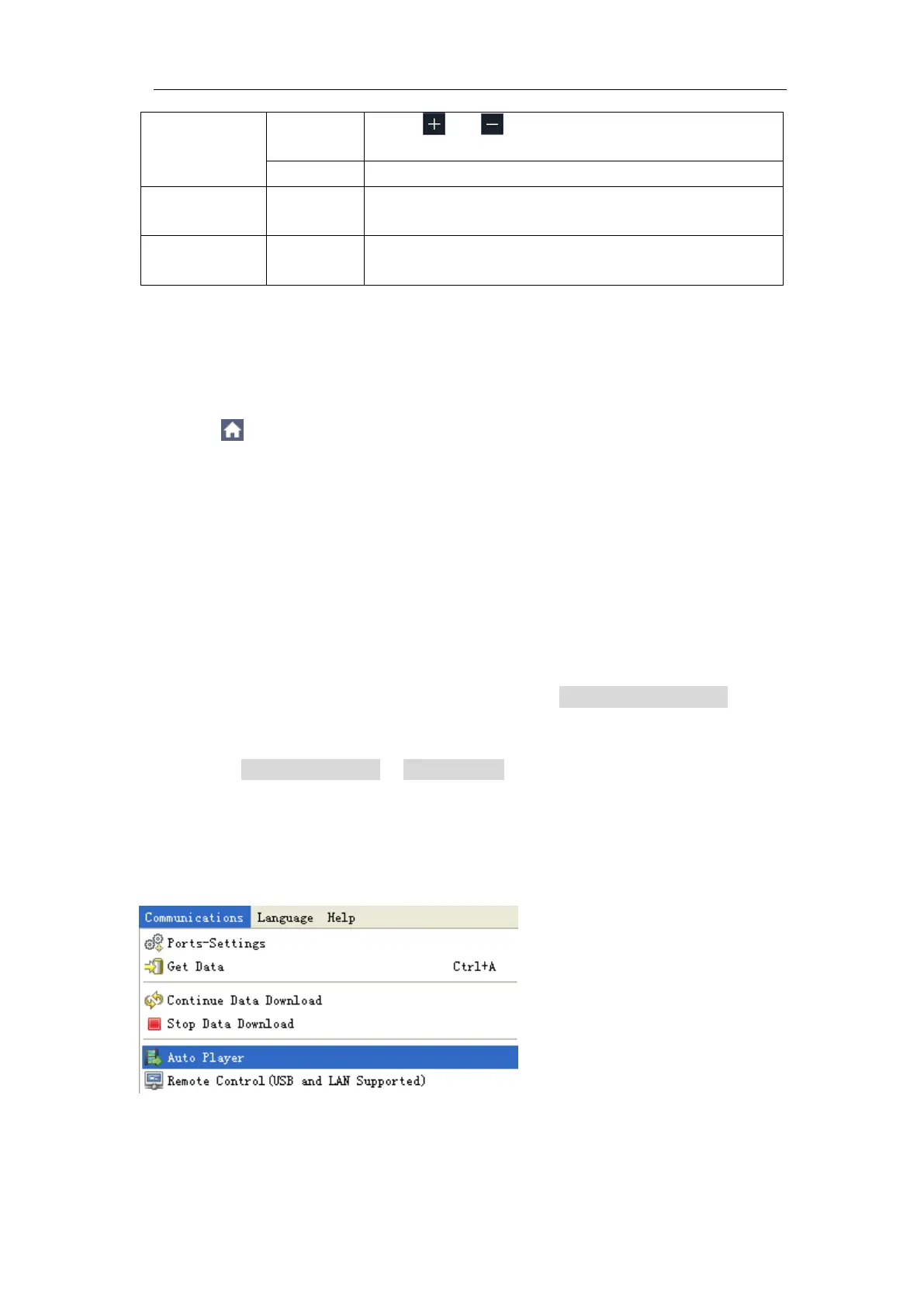

1. Choose Communications Auto Player.
2. Transform recording waveform from machine.
3. Add the well transformed files.
4. Set play mode and time delay.
5. Click the green button on the left corner to begin playing back the
waveform.
