2 x TBES2X8
M2x8 Hex Cap Screw
Self Tapping. Don't fully
tighten in this moment.
2 x OXY0066
Tail Servo Mount
2 x OXY0103
WM2 Washer M2
2 x TBES2X6
M2x6 Hex Cap Screw
Self Tapping

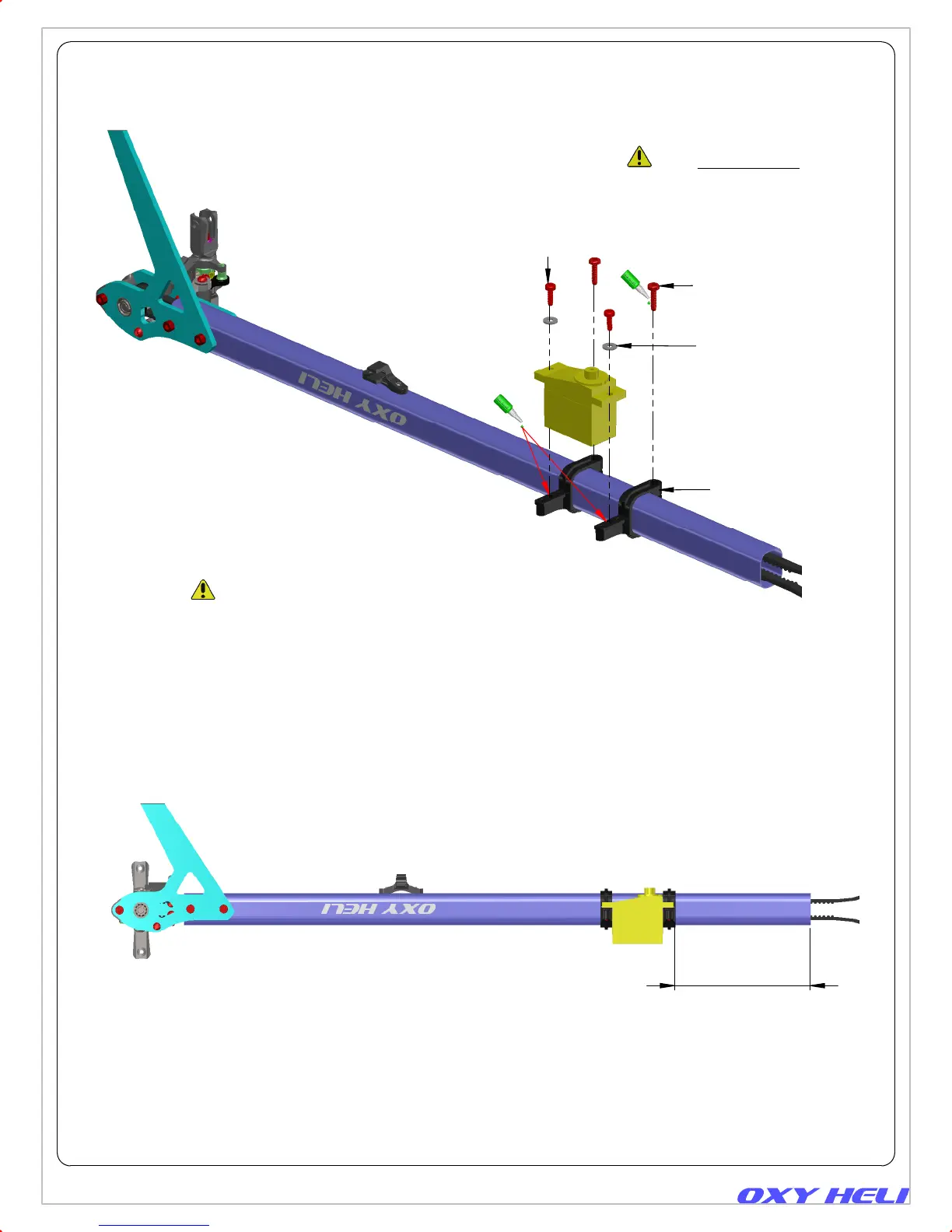

Tail Servo Mount Position Note:
Install Tail servo as shown, respect reference distance between TAil Boom
End and Tail Servo Mount as shown. Lock all 4 Self Tapping Screw and add
CA superglue. Don't install Servo Arm in this moment, see page 29 for final
Tail Servo Set-up.
Follow instruction per final assembly,
install
without overclock
.
reference 61 mm
Page 9
Tail Servo Mount Assembly.
(Box 02 / Bag 5)
Chapter 6, Boom Assembly
To Next Page
