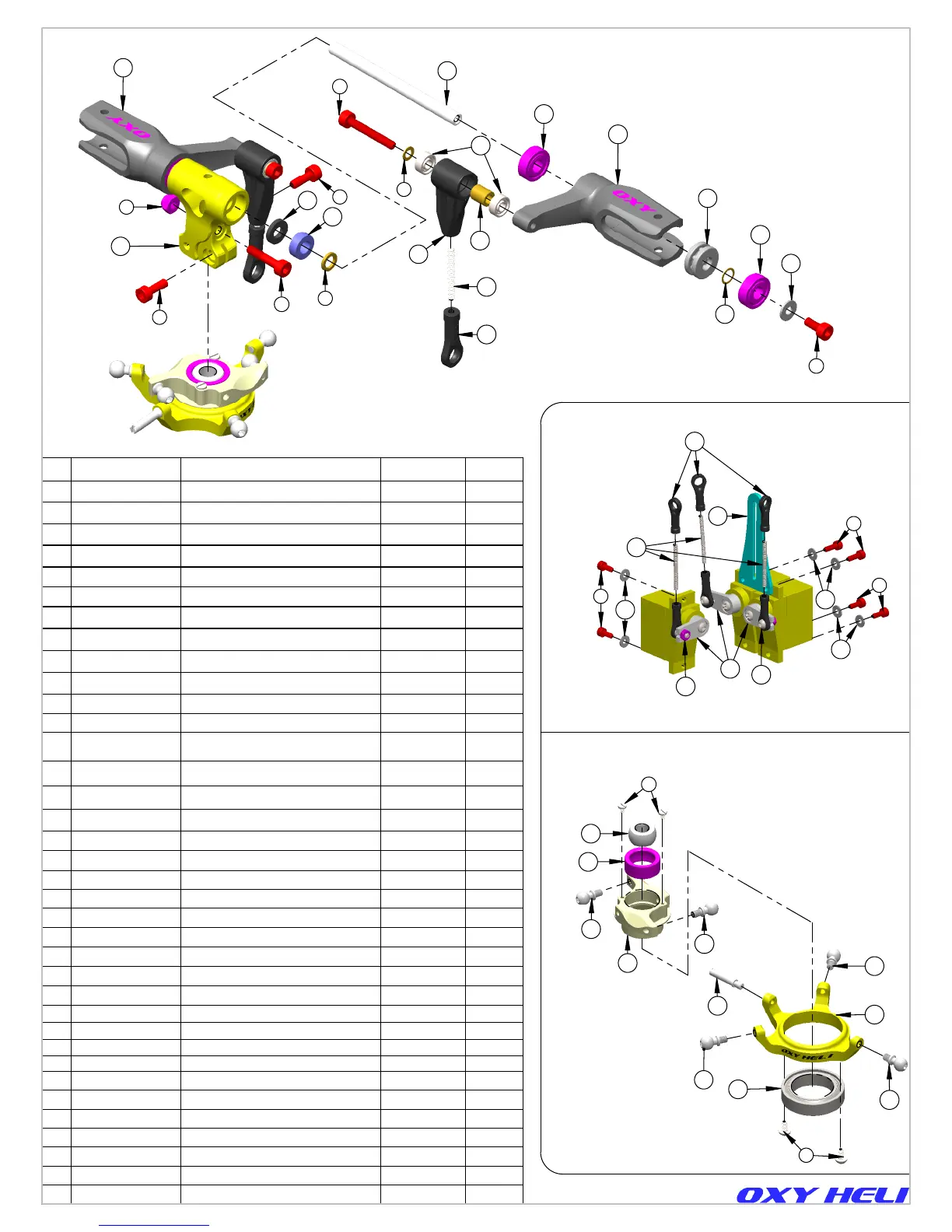

Oxy Heli oxy3 - Chapter 20, Exploded View, Head System

2
2
3
4
7
2
8
9
10
36
12
13
13
15
16
18
19
18
20
21
22
23
30
17
5
14
24
25
26
27
28
29
29
29
29
29
6
Swash Plate Set
2
1
1
11
11
11
21
31
32
33
34
35
Page 34
POS COD Name Specification Quantity
1 TCEM2X5 M2x5 Hex Cap Screw Alloy Steel 4
2 TCEM2X6 M2x6 Hex Cap Screw Alloy Steel 6
3 OXY0076 M2X10 Hex Cap Screw Alloy Steel 1
4 TCEM2X14 M2x14 Hex Cap Screw Alloy Steel 2
5 OXY0020 M1.2x2 Special Screw SST 2
6 OXY0111 M1.6X3 Button Head Screw Alloy Steel 2
7 SLNM2 Self Lock Nut M2 Alloy Steel 1
8 OXY0137 3.1x5x0.6 Washer Brass 2
9 OXY0055 2x3.5x0.2 Washer Brass 2
10 Oxy0054 3x4x0.1 Washer Brass 2
11 WM2 WM2 Washer M2 SST 6
12 MR52-W2 Radial Bearing 2X5X2 STD 4
13 MR83_ZZ/W2.5 Radial Bearing 3X8X2.5 STD 4
14 MR6701_ZZ Radial Bearing 12x18 H4 STD 1
15 F3-8G_X thrust bearing 3x8 h3.5 STD 2
16 OXY0110 Rubber Dampener Rubber 2
17 OXY0079 Dampener Bushing POM 2
18 OXY0005 Center Hub 6061-T6 1
19 OXY0008 Main Grip 6061-T6 2
20 OXY0007 Spindle Shaft SS420 1
21 OXY0011 4mm-linkage ball POM 8
22 OXY0010 Thread Rod M1.6 X 14 SST 2
23 OXY0009 DFC Arm POM 2
24 OXY0014 Lower Swash Plate 6061-T6 1
25 OXY0015 Upper Swash Plate 6061-T6 1
26 OXY0017 Center Ball SST 1
27 OXY0016 Ball Holder POM 1
28 OXY0018 Antirotation Pin Steel 1
29 OXY0019 Swash Plate Ball Steel 5
30 OXY0012 2x3.7x4.4 Bushing Brass 2
31 OXY0075 Servo Rod M1.6x18 Steel 3
32 OXY0032 Anti-Rotation Guide CF 1.5 mm 1
33 OXY0085 Servo Arm POM 3
34 OXY0092 4X2X4.2 M2 Linkage Ball SST 3
35 Hex Nut M2 Alloy Steel 3
36 OXY0081 2.1X5.5X1 Washer Brass 2
Chapter 20, Exploded View, Head System
