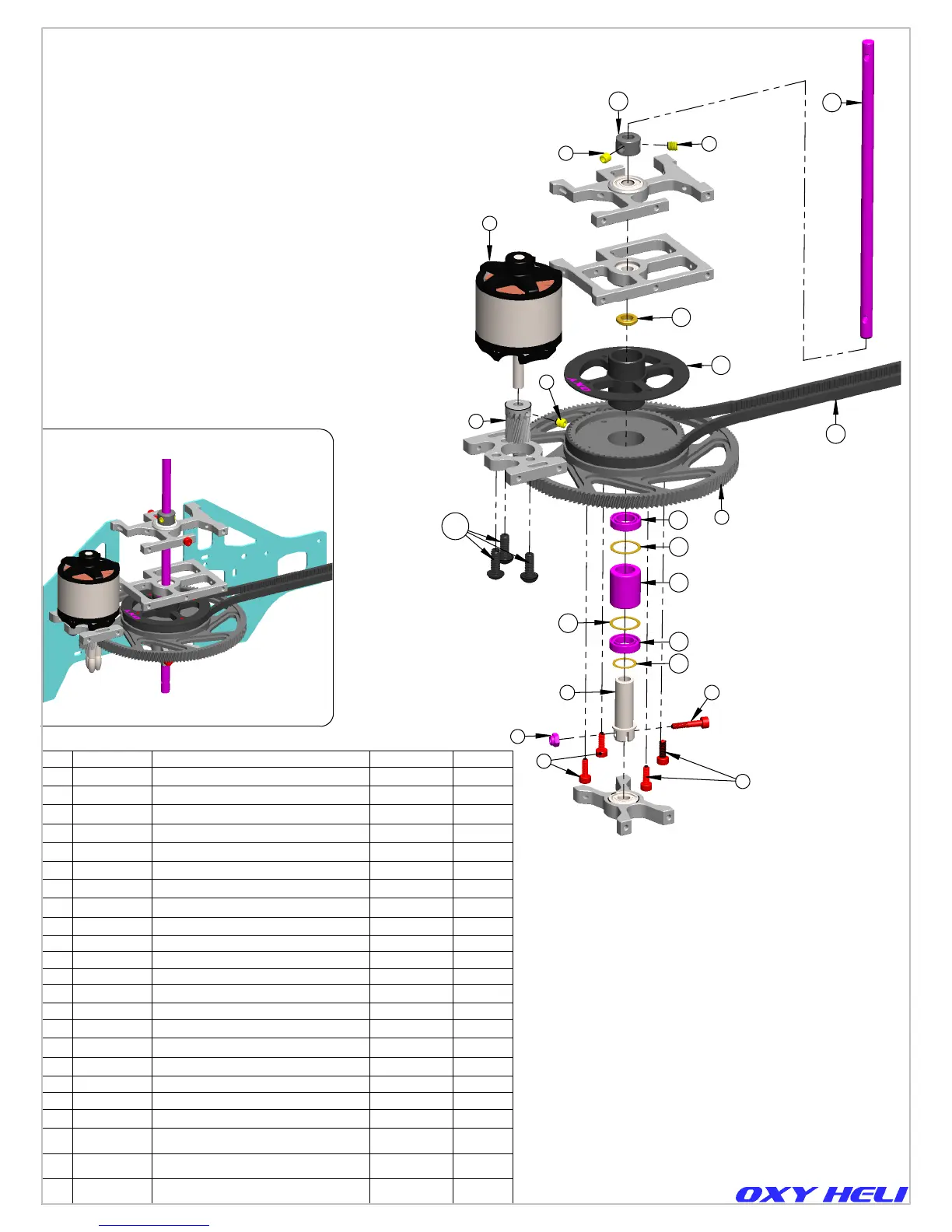

Oxy Heli oxy3 - Chapter 20 Exploded View, Tranmission Assembly

1
1
2
6
5
8
9
7
10
13
11
14
12
14
11
15
16
4
3
4
4
17
18
Page 33
POS COD Name Specification Quantity
1 TCEM2X6 M2x6 Hex Cap Screw Alloy Steel 4
2 OXY0076 M2x10 Hex Cap Screw Alloy Steel 1
3 TBEM3X8 M3x8 Bottom Screw M3x8 Alloy Steel 3
4 SCM3X3 M3X3 Set Screw Alloy Steel 3
5 SLNM2 Self Lock Nut M2 Alloy Steel 1
6 OXY0104 Pinion 10t- M0.5 - 3.17 Motor Shaft Steel 1
OXY0094 Pinion 11t- M0.5 - 3.17 Motor Shaft Steel 1
OXY0095 Pinion 12t- M0.5 - 3.17 Motor Shaft Steel 1
OXY0096 Pinion 13t- M0.5 - 3.17 Motor Shaft Steel 1
OXY0042 Pinion 14t- M0.5 - 3.17 Motor Shaft Steel 1
OXY0086 Pinion 15t- M0.5 - 3.17 Motor Shaft Steel 1
7 LX8005 - EOX Motor 2214-3S-4100KV 1
8 OXY0041 One Way Sleeve C40 1
9 OXY0001 Main Gear PA66 1
10 OXY0037 Main Pulley Flange 6061-T6 1
11 MR104ZZ-W4 Radial Bearing 6X10X2.5 STD 2
12 HF0612 One Way Bearing 6X10X12 STD 1
13 OXY0040 Shim Washer 6.1X8X0.1 Brass 1
14 OXY0039 Washer 8x10x0.2 Brass 2
15 OXY0038 Auto Rotation Spacer Brass 1
16
Timing Belt - B390MXL - 3MM
Thickness
1
17 OXY0004 Main Shaft Lock Ring SUS 304 1
18 OXY0003 Main Shaft Hard Steel 1
Chapter 20 Exploded View, Tranmission Assembly
