Oxy Heli oxy3 - Chapter 15, Head Assembly

TCEM2X6
Hex Cap Screw M2X6
OXY0137
Washer 3.1x5x0.6
OXY0007
Hardened Steel Spindle Shaft
OXY0079
Damper Bushing
OXY0110
Rubber Damper
OXY0081
2.1x5.5x1 Washer
OXY0054
Shim 3x4x0.1
see note Fine Adjust Shims
F3-8G_X
Thrust Bearing 3x8 h3.5
Thin (Larger ID)
Thick (Smaller ID)
OXY0054
3x4x0. 1 Shim Washer
2 x MR83_ZZ/W2.5
Radial Bearing 3X8X2.5
2 x OXY0008
Main Grip
Page 23
Head Assembly. (CNC components)

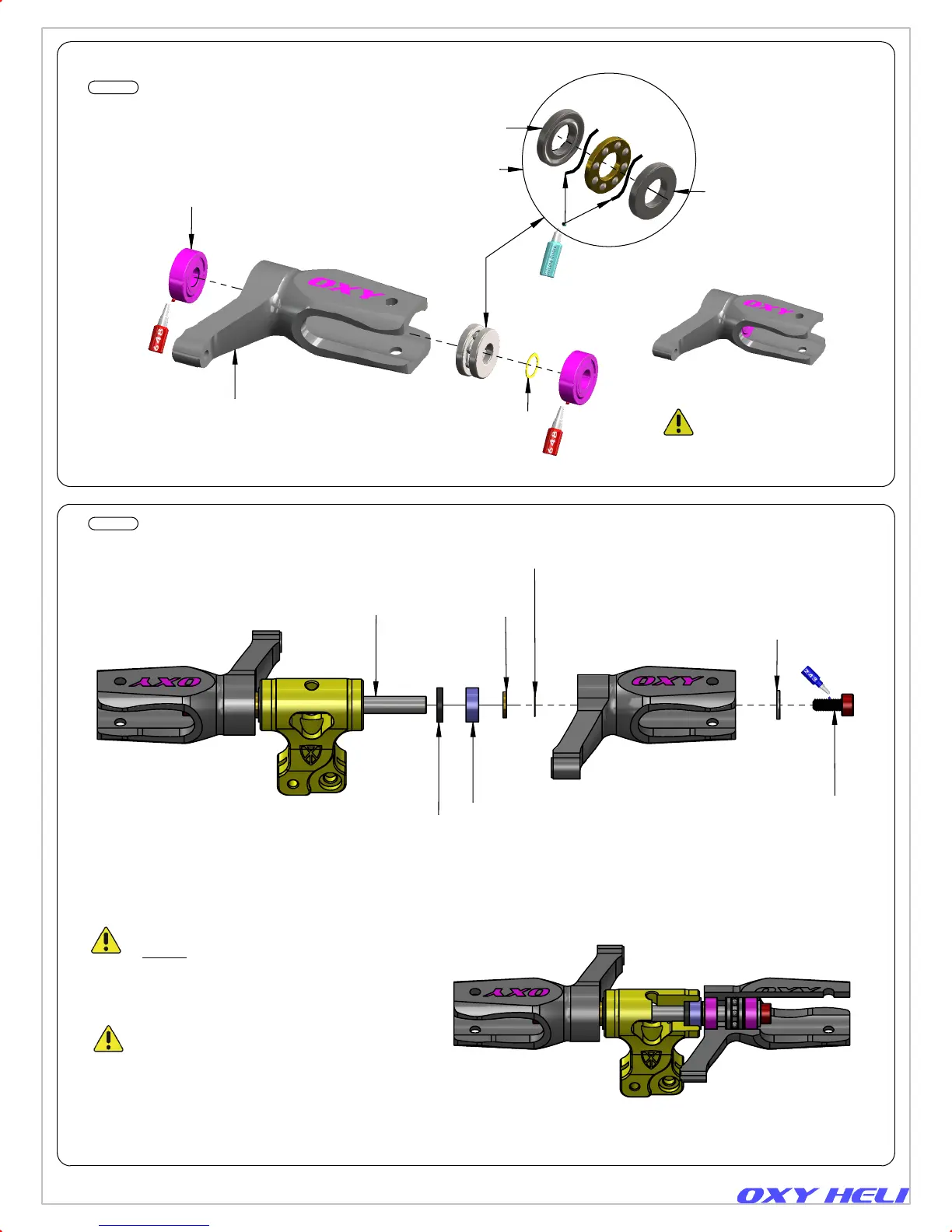

Step 1
Fine Adjust Shims note:
In order to give fine adjustment options,
into Extra Hardware Bag you can find
extra Shims 3x4x0.1 Start assembly with
factory pre setting shims, if Main Grip
have sideway play, add shims per need.
Each Grips must have the same amount
of shims. Exp: If you add one shim on the
left side , you need also add one shims
on the right side.
Important Note:
This part come pre assembled
without
lock thread for quality
reason. Follow instruction per
final assembly.
Step 2
Important Note:
This part, for tuning reason
come factory pre assembled
with grease and loctite. Ready
to use.
Chapter 15, Head Assembly
