2 x OXY0020
M1.2x2 Special
Screw
OXY0015
Upper Swash
Plate

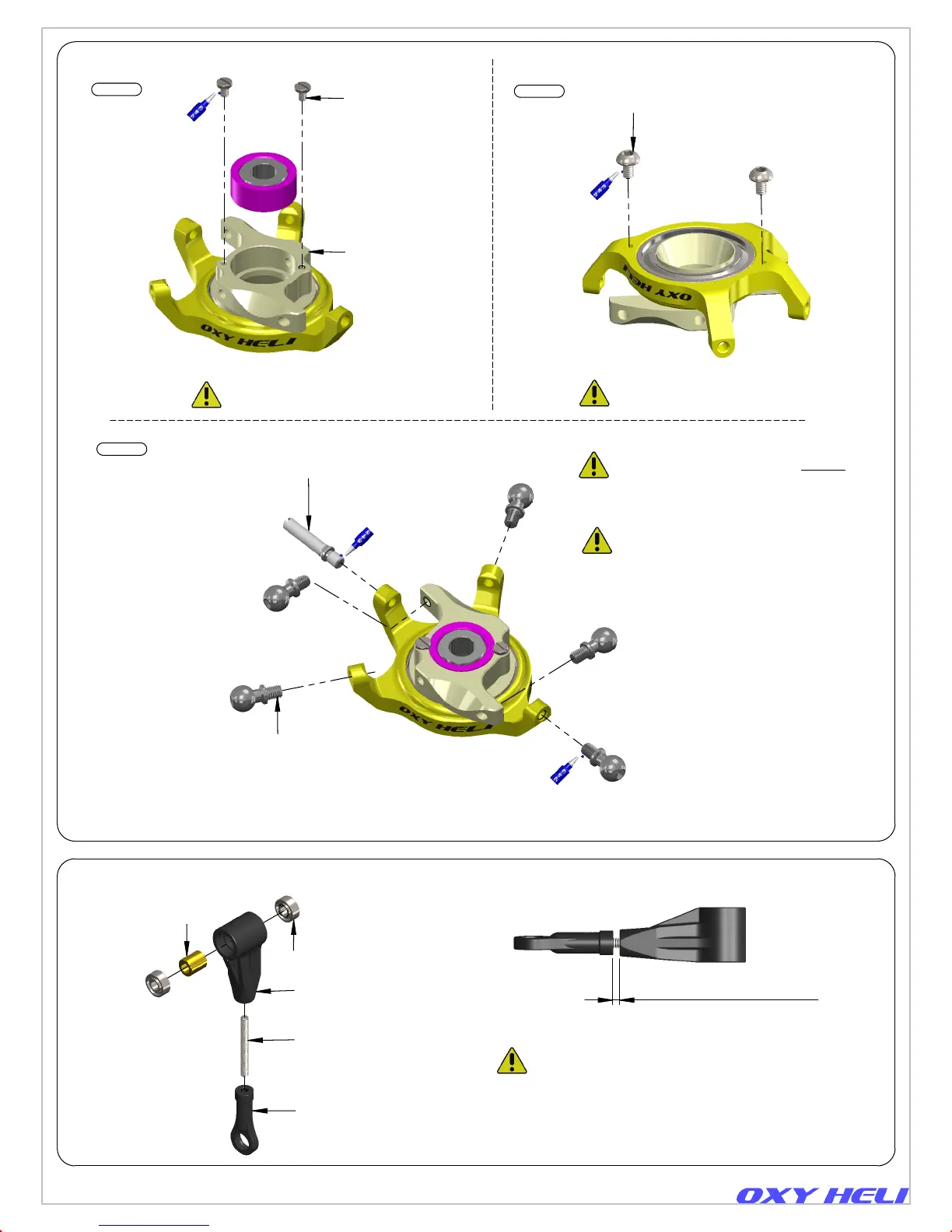

Step 1
5 x OXY0019
Inner Swash
Plate inkage Ball
OXY0018
2x11.5 Antirotation
Pin
Important Note:
This part, for tuning reason come factory
pre assembled with loctite. Ready to use.
Swivel Ball Note:
Swivel Ball is pre-assembled with precise
fitting. With new Swash Plate, center ball
have little friction. After few fly and the
necessary “break-in” will come smooth,
keeping the best precision without play.
2 x MR52-W2
Radial Bearing 2X5X2
OXY0011
4mm-Linkage Ball
OXY0009
DFC Arm
OXY0010
Threaded Rod M1.6 X 14
OXY0012
DFC Arm Spacer
suggested dimension 1mm
2 X OXY0111
M1.6x3 Button Head Screw
Page 24
DFC Arm Assembly.
Swash Plate Assembly.
(CNC components)
Oxy Plastic Linkage have logo to give you
information about the turn adjustment, but
have symmetrical ball socket shape and can
be install in both direction to achieve the
best fine tuning operation.
Important Note:
This part, for tuning reason come factory
pre assembled with loctite. Ready to use.
Important Note:
This part come pre assembled
without
lock
thread for quality reason. Follow instruction
per final assembly.
Step 2
Step 3
Chapter 15, Head Assembly
To Next Page
