Use Cable Ties to hold and secure Servo Wires to Main frame, follow suggestions and Main Frame built-in sockets.
For Extra information about wiring, visit oxyheli.com web site under Tutorials Tips.
115 mm
150 mm
165 mm
Page 29

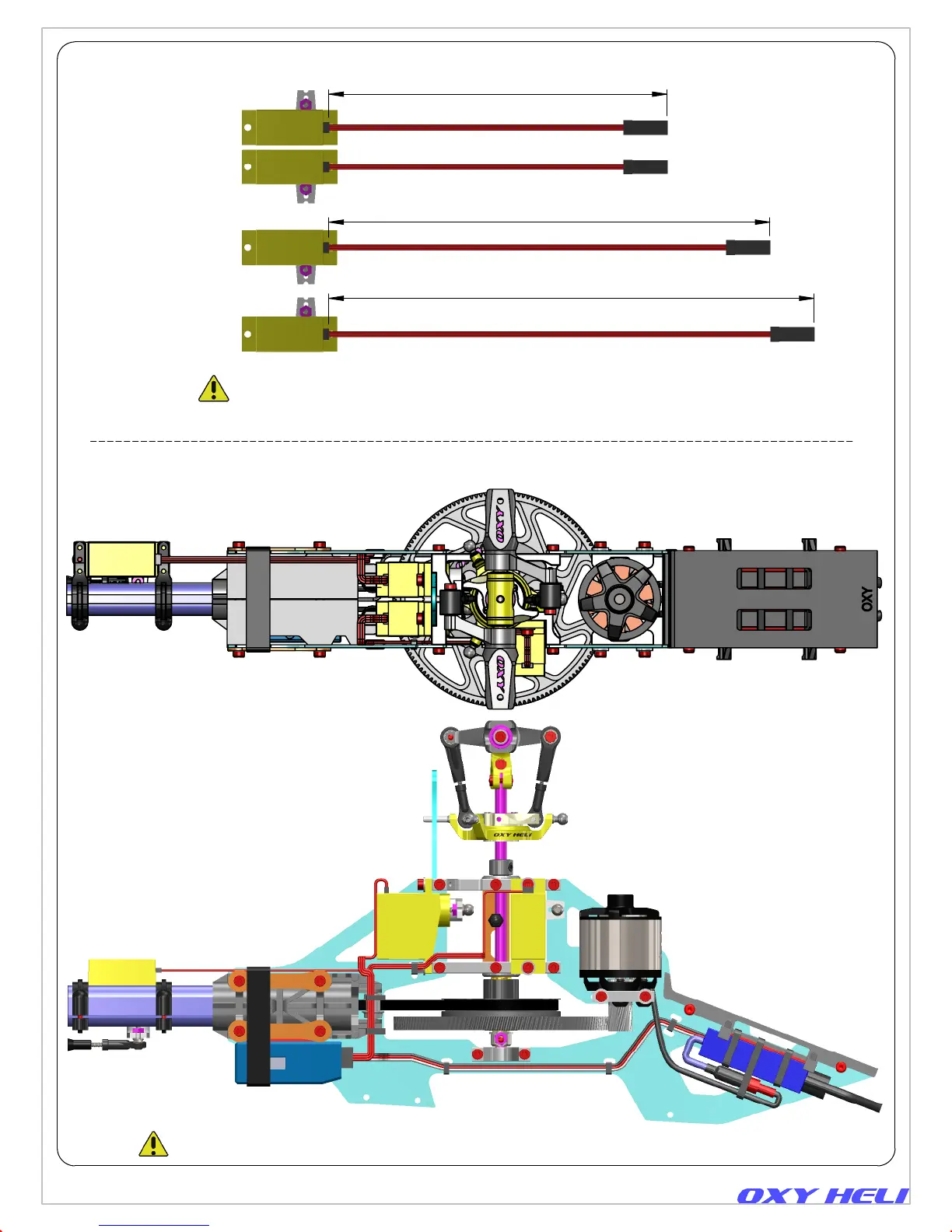

Finalize servo connection, wiring.
Left Cyclic Servo
Right Cyclic Servo
Front Cyclic Servo
Tail Servo
Suggest Servo Wiring Dimension
Servo Wiring Length Note:
In order to make a clean wiring, we suggest trim servo wires per instructions. Are important
use specific tools as: Servo Terminals and Crimp Pliers. If you don’t dispose of specific tools,
better you keep Servo wires per standard length and use Cable Ties to lock and secure wires
avoiding binding or potential cut.
Electronics Wiring.
Follow our schematics suggestion for the cleanest wiring set up.
Chapter 17, Servo Installation
