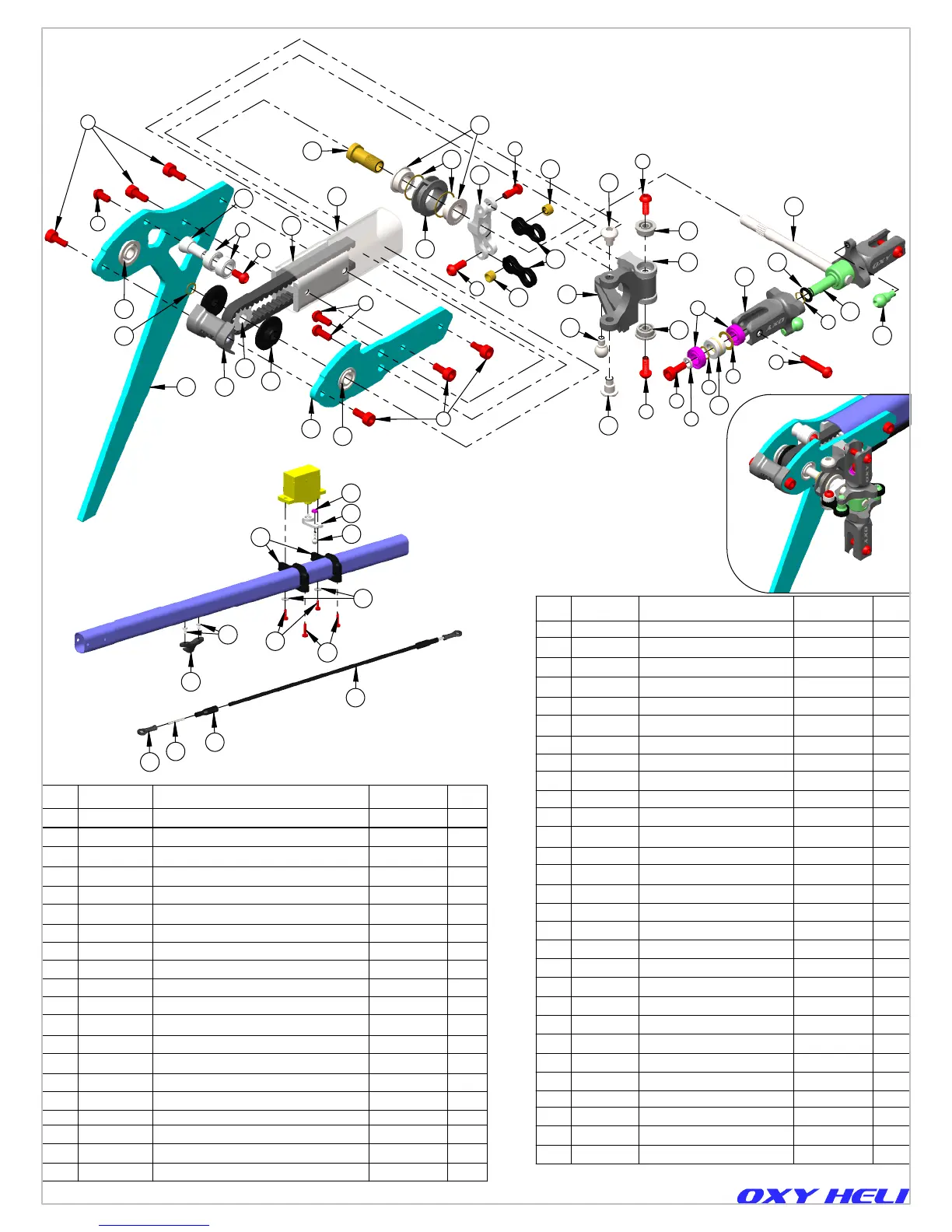

Oxy Heli oxy3 - Chapter 20, Exploded View, Tail System

1
2
1
1
3
3
3
3
4
5
5
6
8
10
10
11
11
12
13
7
14
15
9
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
31
32
34
35
3
30
30
33
3
36
49
41
42
45
46
48
48
44
43
47
40
39
38
37
Page 35
POS COD Name Specification Quan
1 TCEM2x5 M2x5 Hex Cap Screw Alloy Steel 8
2 TBEM2X4 M2x4 Button Screw Alloy Steel 1
3 TBEM2X5 M2x5 Button Screw Alloy Steel 7
4 OXY0078 M2X10 Buttom Screw Alloy Steel 2
5 OXY0054 3x4x0. 1 Shim Washer Brass 4
6 OXY0053 4.2X6X0.2 Washer Brass 2
7 OXY0055 2X3.5 W 0.5 Shim Washer SST 2
8 MR63-W2 Radial Bearing 3X6X2 STD 4
9 MR63_ZZC Radial Bearing 3X6X2.5 STD 2
10 MF682ZZ Flange_Bearings_2x5x2.3 STD 2
11 MF73_ZZ/W3 Flange_Bearings_3x7x3 STD 2
12 MF74-ZZ Flange_Bearings_4x7x2.5 STD 2
13 F3-6G-W3.5 Thrust Bearing 3x6 W3.5 STD 2
14 OXY0069 Vertical Fin Block CF 2mm 1
15 OXY0070 Tail Case Bearing Block CF 2mm 1
16 OXY0072 Tail Case Cover POM 1
17 OXY0046 Flange Tail Pulley POM 2
18 OXY0045 14T Tail Pulley 6061-T6 1
19 OXY0073 Tail Case Center 6061-T6 1
20 OXY0065 Square Boom 11X14X0.5X284 6061-T6 1
POS COD Name Specification Quan
21 OXY0071 Bearing Bushing Steel 1
22 OXY0060 Tail Slider Bushing Brass 1
23 OXY0061 Tail Pitch Slider Ring POM 1
24 OXY0063 Tail Pitch Slider Haft Moon 6061-T6 1
25 OXY0064 Link Control POM 2
26 OXY0062 Bushing 2 X 3 H2 Brass 2
27 OXY0058 Bell Crank Arm 6061-T6 1
28 OXY0056 Tail Bell Crank POM 1
29 OXY0043 4x2 Linkage Ball Steel 1
30 OXY0057 Tail Pin Screw Steel 2
31 OXY0044 Tail Shaft SST 1
32 OXY0051 Tail Grip 6061-T6 2
33 OXY0049 Tail Hub SST 304 1
34 OXY0050 Linkage Ball 4 X 3 M2 SST 2
35 OR-2X1 O-RING ID 2 - W 1 Rubber 2
36 OXY0139 Shim 7x8x0.1 Brass 2
37 OXY0048 CF Rod 170 mm CF 1
38 OXY0047 Tail Push Rod Terminal POM 1
39 OXY0010 Thread Rod M1.6X14 SST 1
40 OXY0011 4 mm Linkage Ball POM 2
41 OXY0067 Guide Push Rod POM 1
42 OXY0066 Tail Servo Mount POM 2
43
OXY0092 4X2X4.2 M2 Linkage Ball SST
1
44
OXY0085 Servo Arm
POM 1
45 TBES2X8 M2x8 Self Tapping Screw Alloy Steel 2
46 TBES2X6 M2x6 Self Tapping Screw Alloy Steel 2
47 OXY0068 Pin Screw SST 2
48
Hex Nut M2 Alloy Steel
1
49 OXY0054
Shim 3x4x0.1 Brass
1
Chapter 20, Exploded view, Tail System
