Oxy Heli oxy3 - Chapter 7, Carbon Frame

MR104ZZ-W4
Radial Bearing
4x10 W4
OXY0028
Lower Main Shaft
Bearing Block
4 x TCEM2x5
Hex Cap Screw
M2x5
OXY0027
Middle Main Shaft
Bearing Block
MR104ZZ-W4
Radial Bearing
4x10 W4

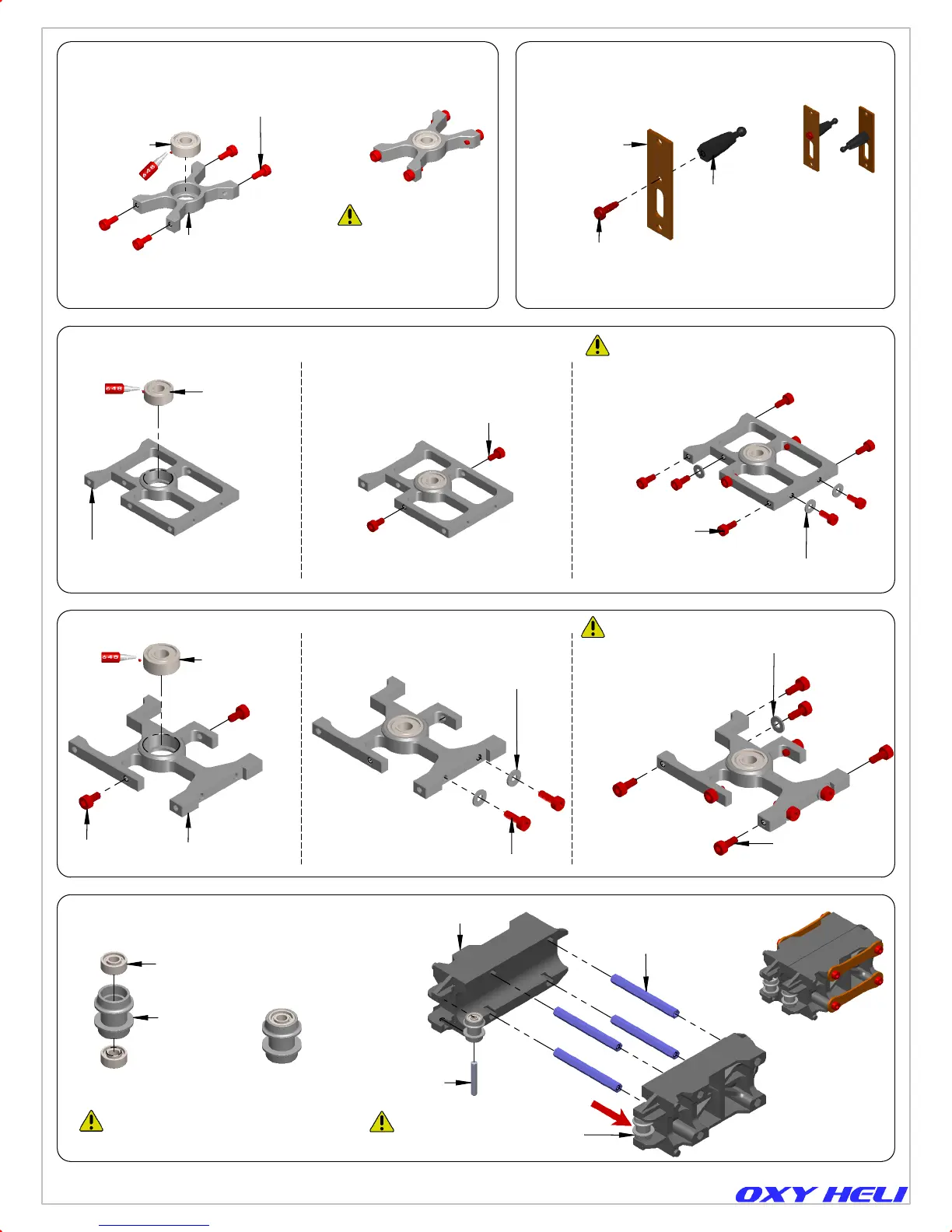

Middle Bearing Block Assembly. (CNC components)
OXY0026
Upper Main Shaft
Bearing Block
MR104ZZ-W4
Radial Bearing
4x10 W4
2 x TCEM2x4
Hex Cap Screw
M2x4
2 x OXY0002
Boom Clamp
4 x OXY0022
Lock Rod
2 x OXY0023
Pulley Guide
Belt Pin
Install Pin into Pulley Guide Belt
and press-in completely into
Tail Boom Clamp Socket Lips.
2 x MR52-W2
Radial Bearing
2X5X2
OXY0024
Pulley Guide
Belt
OXY0036
Landing Gear
OXY0031
Bottom Plate
Landing Gear Assembly
4 x TBEM2.5x5
Button Hex Cap
Screw M2.5x5
TBES2X6
M2x6 Hex Cap
Screw Self Tapping
OXY0025
Canopy Mount
OXY0033
Break Away
Canopy Mount
2 x TCEM2x4
Hex Cap Screw
M2x4
7 x TCEM2x5
Hex Cap Screw
M2x5
3 x OXY0103
Washer M2
2 x OXY0103
Washer M2
2 x TCEM2x6
Hex Cap Screw
M2x6
5 x TCEM2x5
Hex Cap Screw
M2x5
OXY0103
Washer M2
Upper Bearing Block Assembly. (CNC components)
Lower Bearing Block Assembly. (CNC components)
Break Away Canopy Assembly.
Page 10
Boom Clamp Assembly. (Box 02 / Bag 7)
Important Note:
Radial Bearing, for tuning
reason come factory pre
assembled with Loctite.
Ready to use.
Important Note:
Radial Bearing, for tuning
reason come factory pre
assembled with Loctite.
Ready to use.
Important Note:
Radial Bearing, for tuning
reason come factory pre
assembled with Loctite.
Ready to use.
Important Note:
Radial Bearing, for tuning reason
come factory pre assembled.
Ready to use.
Box 02 / Bag 6-1
Carbon Fiber parts
( )
Chapter 7, Carbon Frame
