2 x OXY0034
Main Frame Stiffener
4 x TCEM2X8
Hex Cap Screw M2X8
Note: Add Loctite 243
Don't fully tighten in this
moment. See assembly
belt and tension note
page 23.

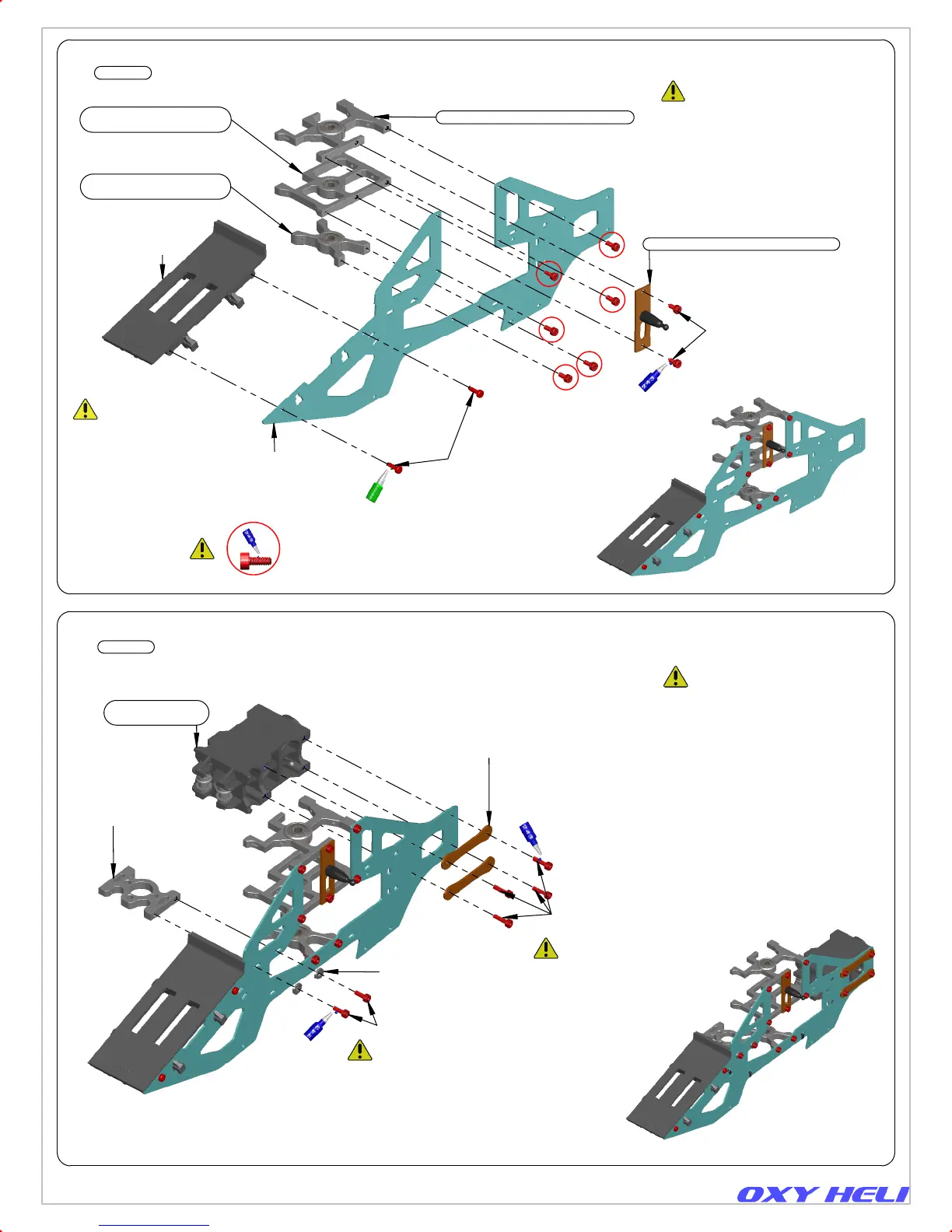

Main Frame Assembly.
(CNC components)
Page 11
2 x OX0081
2x5.5x1 Washer
2 x TCEM2X6
Hex Cap Screw M2X6
Note: Add Loctite 243
Don't fully tighten in this moment.
Finalize tightening once pinion and
main gear mesh are adjusted.
OXY0029
Motor Mount
Boom Clamp
Assembly
OXY0035
Battery Tray
OXY0030
Main Frame
2 x TBES2X6
M2x6 Hex Cap
Screw Self Tapping
2 x TCEM2X4
Hex Cap
Screw M2X4
Main Frame Assembly.
(Carbon Fiber parts + Box 02 / Bag 6)
6 x TCEM2X5
Hex Cap Screw M2X5
Note:Don't fully tighten in this moment.
See assembly alignment note page 14.
Upper Bearing Block Assembly
Middle Bearing Block
Assembly
Lower Bearing Block
Assembly
ESC assembly Note:
In Order to help assembly
procedure, we suggest to
install ESC in this moment.
Please refer to Manual
page 17 , how to install ESC.
Step 01
Break Away Canopy Assembly
Note: Screw comes
pre assembled into
3 x Bearings Blocks
& Battery Tray.
Note:
Radial Bearing
open Face Down
Note:
Radial Bearing
open Face Up
Step 02
Note: Screw comes
pre assembled into
Boom Clamp and
Motor Mount.
Chapter 7, Carbon Frame
