Oxy Heli oxy3 - Page 13

2 x TBES2X6
M2x6 Hex Cap
Screw Self Tapping
2 x TCEM2X4
Hex Cap
Screw M2X4
6 x Hex Cap Screw M2X5
Note: Don't fully tighten in this moment.
See assembly alignment note page 14.
OXY0030
Main Frame
Break Away
Canopy Assembly
Note: Screw comes
pre assembled into
3 x Bearings Blocks
& Battery Tray.

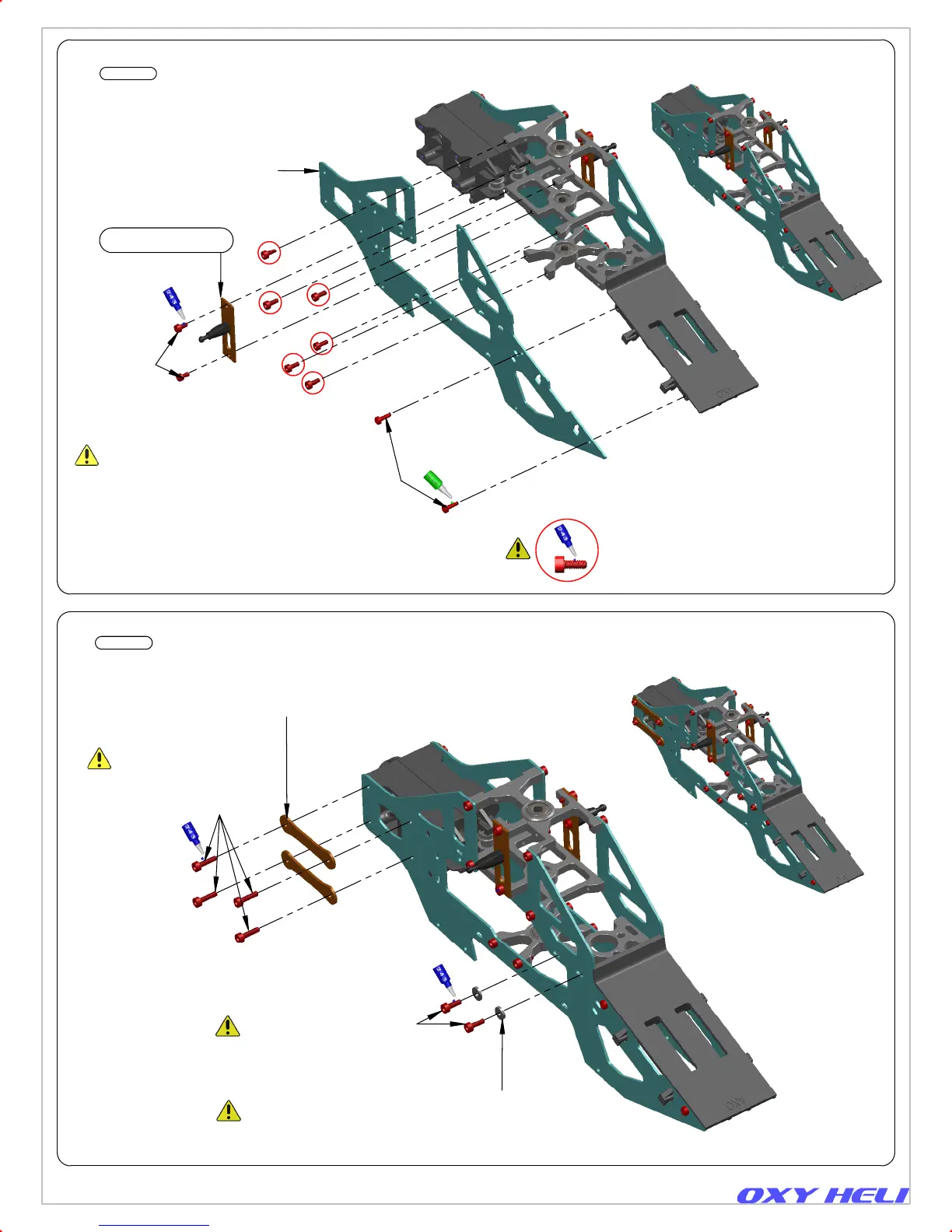

Step 03
4 x TCEM2X8
Hex Cap Screw M2X8
Note: Add Loctite 242
Don't fully tighten in this
moment. See assembly
belt and tension note
page 23.
2 x OXY0034
Main Frame Stiffener
2 x OXY0081
2x5.5x1 Washer
2 x TCEM2X6
Hex Cap Screw M2X6
Note: Add Loctite 243
Don't fully tighten in this
moment. Finalize tightening
once pinion and main gear
mesh are adjusted.
Page 12
Main Frame Assembly
Step 04
Main Frame Assembly
Note: Screw comes
pre assembled into
Boom Clamp and Motor
Mount.
Chapter 7, Carbon Frame
