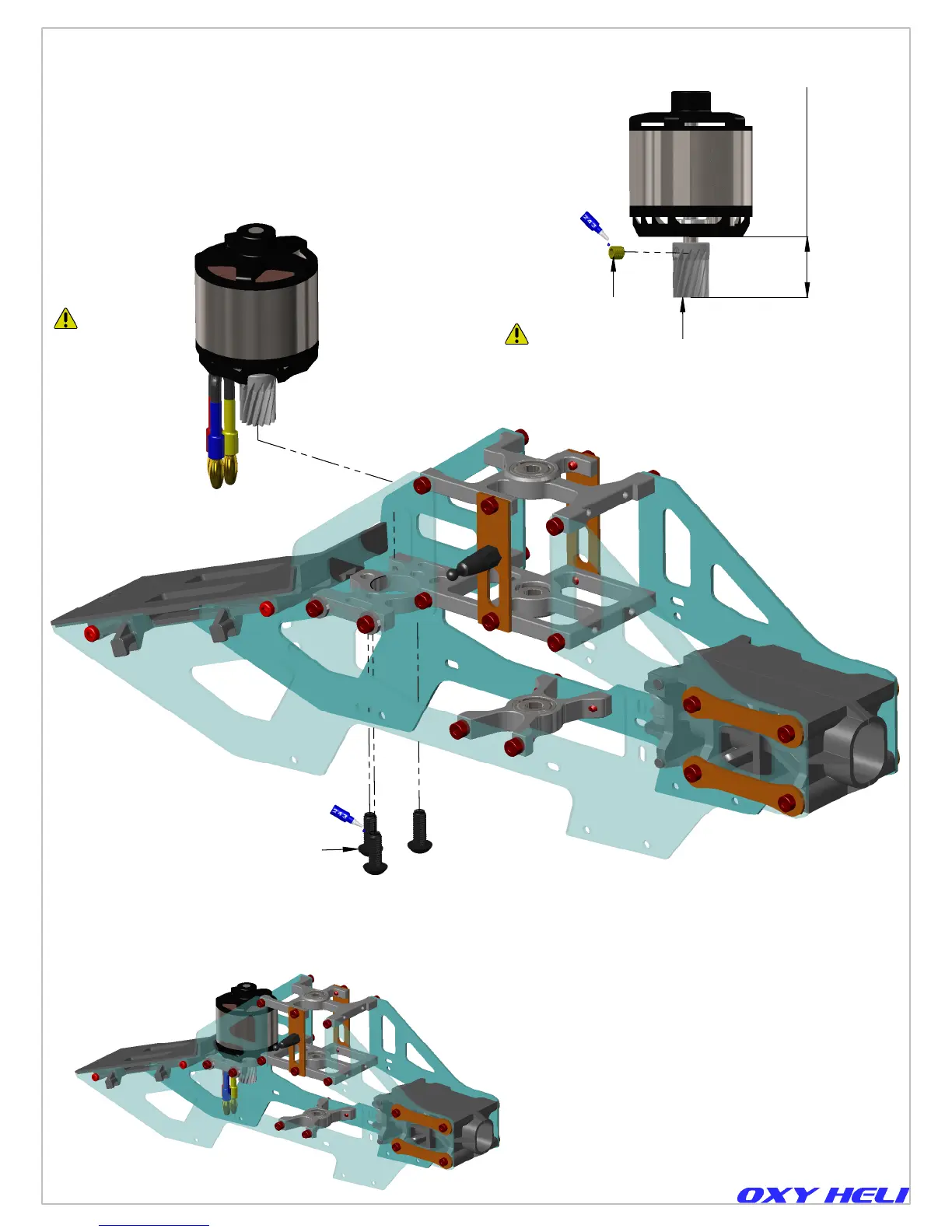

Motor Installation. (Box 02 / Bag 8)
3 x TBEM3X8
Button Hex Cap
Screw M3X8
Keep motor wire
pointed front.
REF 14.5 mm
SCM3X3
Set Screw M3X3
Oxy 3 Slant Pinion
(11T – 14T Standard)
See page 16 - Table for
best pinion choice.
Pinion Installation.
