2 x OXY0076
Shoulder Button
Cap Screw M2x10
2 x OXY0106
Plastic Tail Blade
47 or 50mm - White
2 x TCEM2X14
Shoulder Button Cap
Screw M2X14
2 x Main Blade
255mm Carbon
Fiber White
2 x SLNM2
Self Lock Nut M2
2 x OXY0098
Battery Oring
Important Note: Use double side
Hook and Loop Velcro sticker to
assure battery against dangerous
sliding.

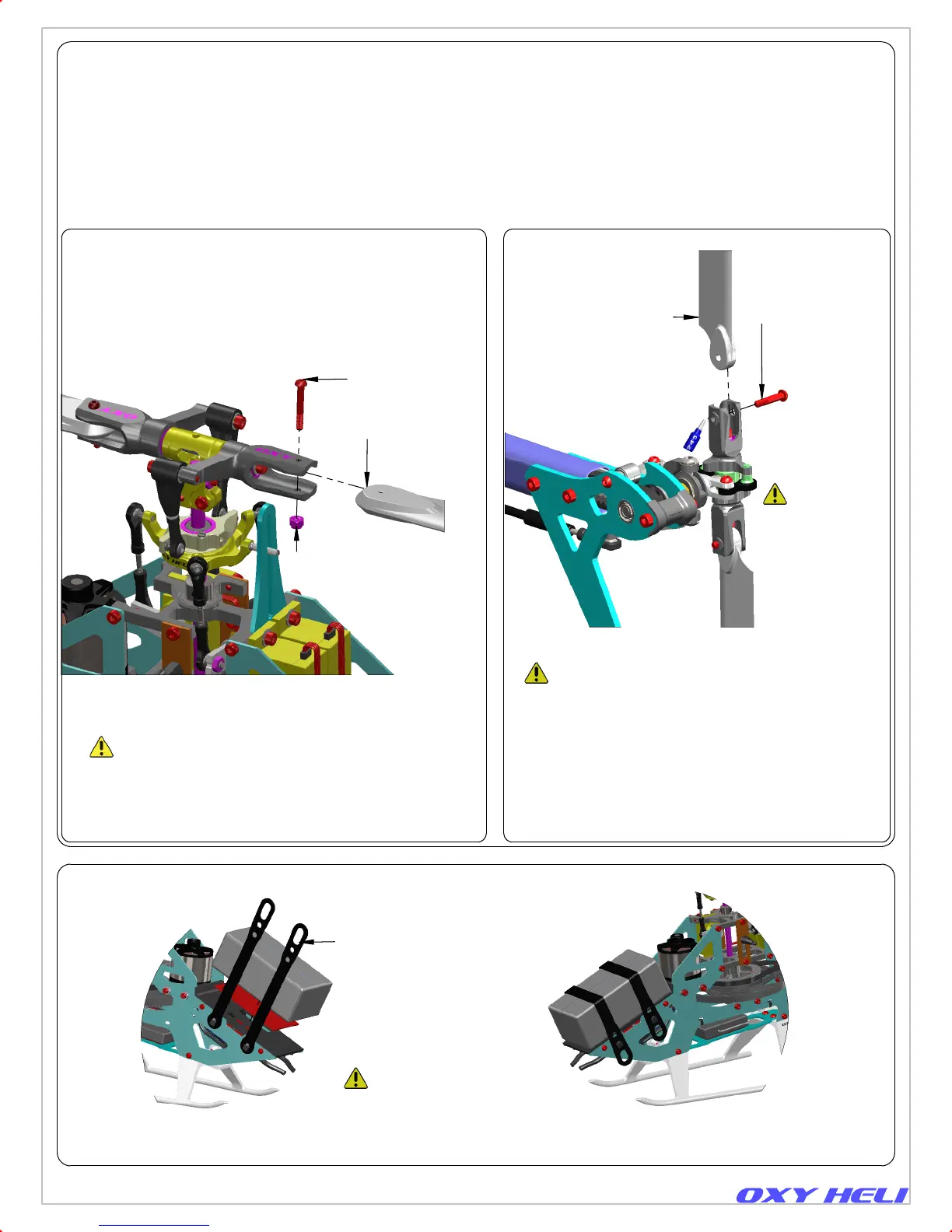

Before Flight.
Battery Assembly.
Main Grip assembly.
Page 31
Oxy tail blade dimension note: In order
to assure the best performance Oxy
made custom tail blade with 3.5mm root.
In case you will use different tail blade
with 2.5mm root you must install not
include shims.
Information about 47 and 50 mm tail blade effect:
In the kit we support 2 set of tail blade,
the 47 mm are designed for high head
speed, the 50 mm are designed for low
head speed. We recommends use 47 mm
when head speed is higher than 4000 rpm.
Note: Oxy Main Grip have 5.5mm root cavity in order
to work with any std 245 / 255 main blade root.
Use main blade shims if necessary.
Shims are supply with main blade.
Important Note:
Add Loctite into Tail
Grip screw thread
to avoid Loctite can
contaminate Tail
Blade.
Tail Grip assembly.
Now complete the setup of your FBL system. Into Accessories Bag you can find Oxy 3 Swash Plate Leveler Tools.
This Tool is designed to fit under the Swash Plate without disassembly any parts. This simple tool will give planarity and Zero Pitch Position.
About Gyro Gain, Oxy 3 was designed around fews famous FBL System (IKON / Brain / m V-Bar) we suggest to start with follow standard
set up and adjust later for your feeling and set up:
Cyclic Set Up:
Use suggested setting for 450 Heli and adjusts later per your fly feeling.
See table page 15 for RPM and Pitch Setting. Cyclic Max pitch +/- 10.5 deg.
Tail Set Up:
Use suggested setting for 450 Heli BUT start with lower Tail Gain
IKON / Brain = 20%
M V-Bar = 250 Heli Suggested Set Up.
Chapter 19, Flight/ Maintenance
