Oxy Heli oxy3 - Page 33

1
4
5
3
6
9
9
13
1
3
3
1
18
11
10
19
20
7
21
1
14
8
8
8
12
15
16
17
22
2
23
6
24
Page 32
POS CODE NAME SPECIFICACTION QUAN
1 TBES2X6 M2x6 Self Tapping Screw Alloy Steel 12
2 TCEM2X4 M2x4 Hex Cap Screw Alloy Steel 4
3 TCEM2X5 M2x5 Hex Cap Screw Alloy Steel 12
4 TCEM2x6 M2x6 Hex Cap Screw Alloy Steel 4
5 TCEM2X8 M2x8 Hex Cap Screw Alloy Steel 8
6 TBEM2.5x5 M2.5x5Button Hex Cap Screw Alloy Steel 4
7 MR52-W2 Radial Bearing 2x5x2 STD 4
8 MR104ZZ-W4 Radial Bearing 4x10x4 STD 3
9 OXY0030 Main Frame CF 1mm 2
10 OXY0031 Bottom Plate CF 1mm 1
11 OXY0034 Main Frame Stifferner CF 1mm 4
12 OXY0033 Break Way Canopy Mount CF 1mm 2
13 OXY0035 Battery Tray POM 1
14 OXY0029 Motor Mount 6061-T6 1
15 OXY0026 Upper Main Shaft Bearing Block 6061-T6 1
16 OXY0027 Middle Main Shaft Bearing Block 6061-T6 1
17 OXY0028 Lower Main Shaft Bearing Block 6061-T6 1
18 OXY0002 Boom Clamp POM 2
19 OXY0022 Lock Rod 6061-T6 4
20 OXY0023 2x13.5 Pin SST 2
21 OXY0024 Pulley Guide Belt POM 2
22 OXY0025 Canopy Mount POM 2
23 OXY0081 2X5.5X1 Washer SST 4
24 OXY0036 Landing Gear POM 1

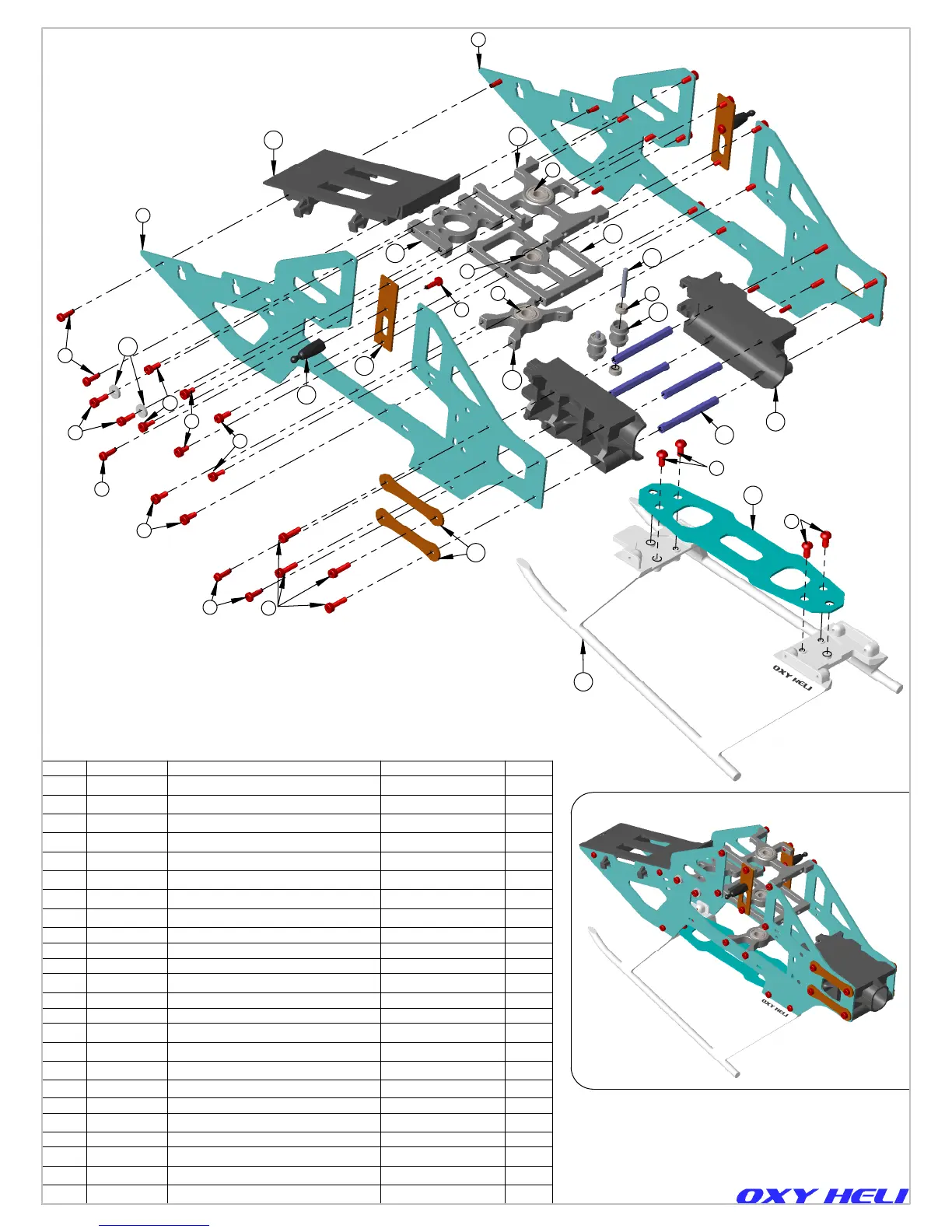

Chapter 20, Exploded View, Carbon Frame
