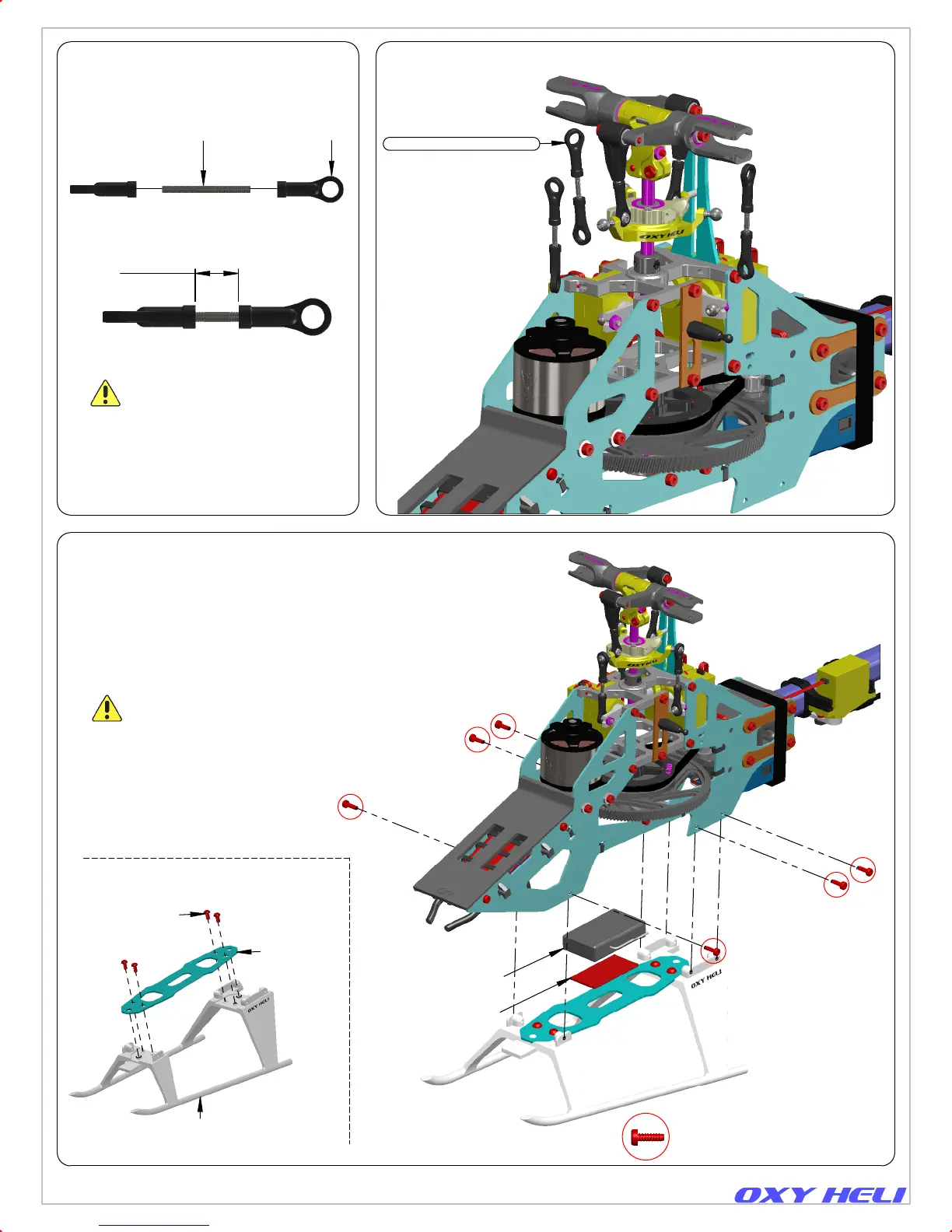

3 x Servo Rod Assembly
Ref 7 mm
Really important servo rod will screw
on the linkage for the same length.
Plastic Linkage have Lynx logo to give you
information about the turn adjustment,
but have symmetrical ball socket shape
and can be installed in both directions to
achieve the best fine tuning operation.
Landing Gear Assembly.
(Box 02 / Bag 11)
OXY0036
Landing Gear
OXY0031
Bottom Plate
4 x TBEM2.5x5
Button Hex Cap
Screw M2.5x5
Sattellite position
Use Double - Side
Tape to hold Satellite
OXY0041
M1.6x20 Servo Rod
2 x OXY0011
4mm-Linkage Ball
Servo Rod Assembled.
(Box 02 / Bag 10)
Install Sevo rod into Swash Plate and Servo.
6 x Hex Screw Self Tapping M2x6
Page 30
Once servo connector are in place and
secured with cable tie, you can finalize
the assembly installing the landing gear.
Chapter 18, Servo Rod and Landing Gear Installation
