90°
Nose Right
Nose Left
OXY0092
4X2X4.2 M2
Linkage Ball
OXY0085
Servo Arm
Hex Nut M2
Reuse STD
Servo Screw
3.50°
Must parallel with arm
position with centered
Rudder stick.

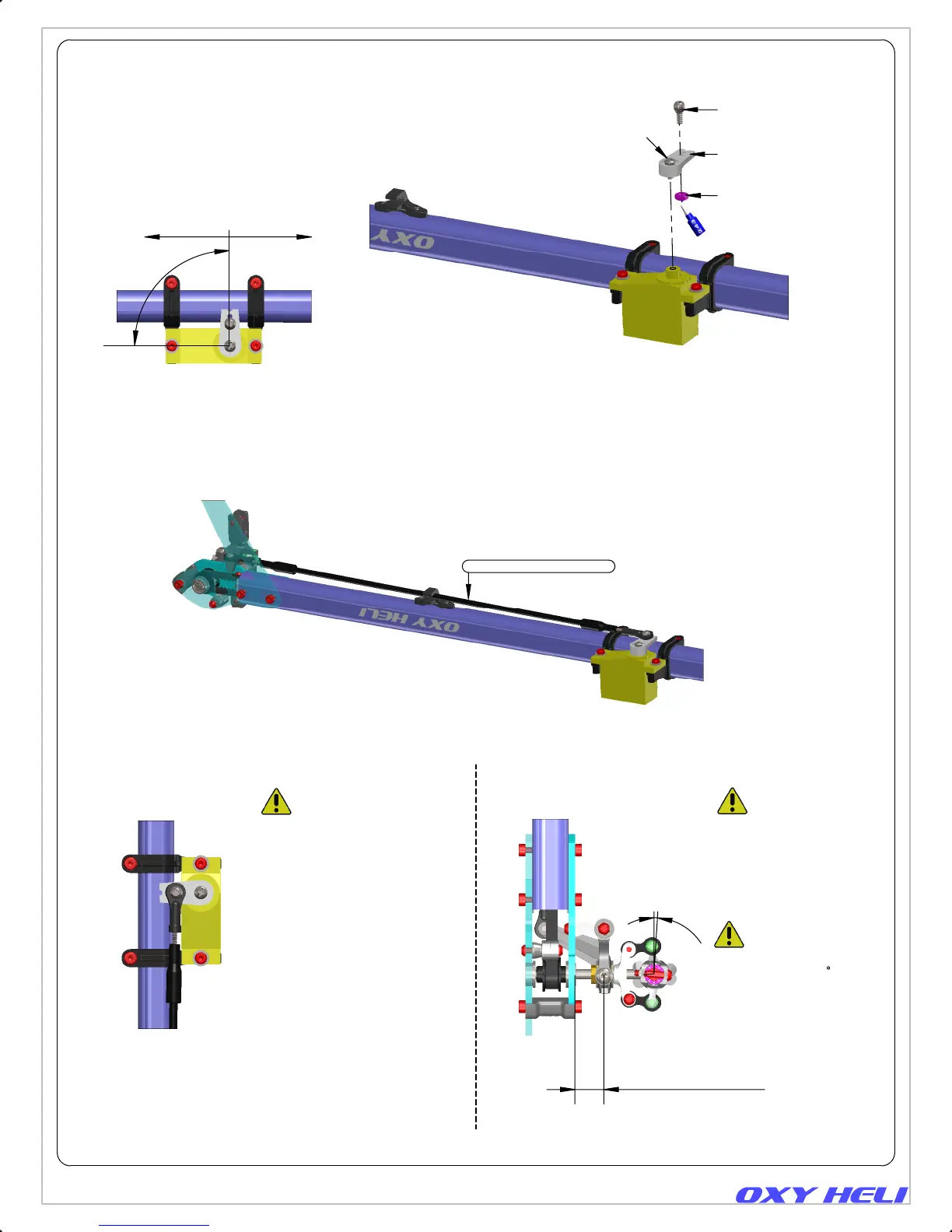

Tail Push Rod Assembly
Tail Push Rod Assembly.
Page 28
Arm position with centered
Rudder stick.
Oxy 3 Tail System have
approximately 3.5
of
counter couple extra
pitch with Rudder
centered stick and Tail
Bell Crank set per instructions.
Top Heli View
Bottom Heli View
Tail Servo Assembly.
With Tail Servo Arm in
center Rudder Stick
position, adjust Tail Push
Rod length until Tail Bell
Crank and Tail Case Plate
will be parallel, see picture
shown.
