4 x TCEM2X6
M2x6 Hex Cap Screw
OXY0032
Anti-Rotation Guide
4 x OXY0103
WM2 Washer M2
90
Positive
Pitch
2 x TCEM2X5
M2x5 Hex Cap Screw
2 x OXY0103
WM2 Washer M2
90
90

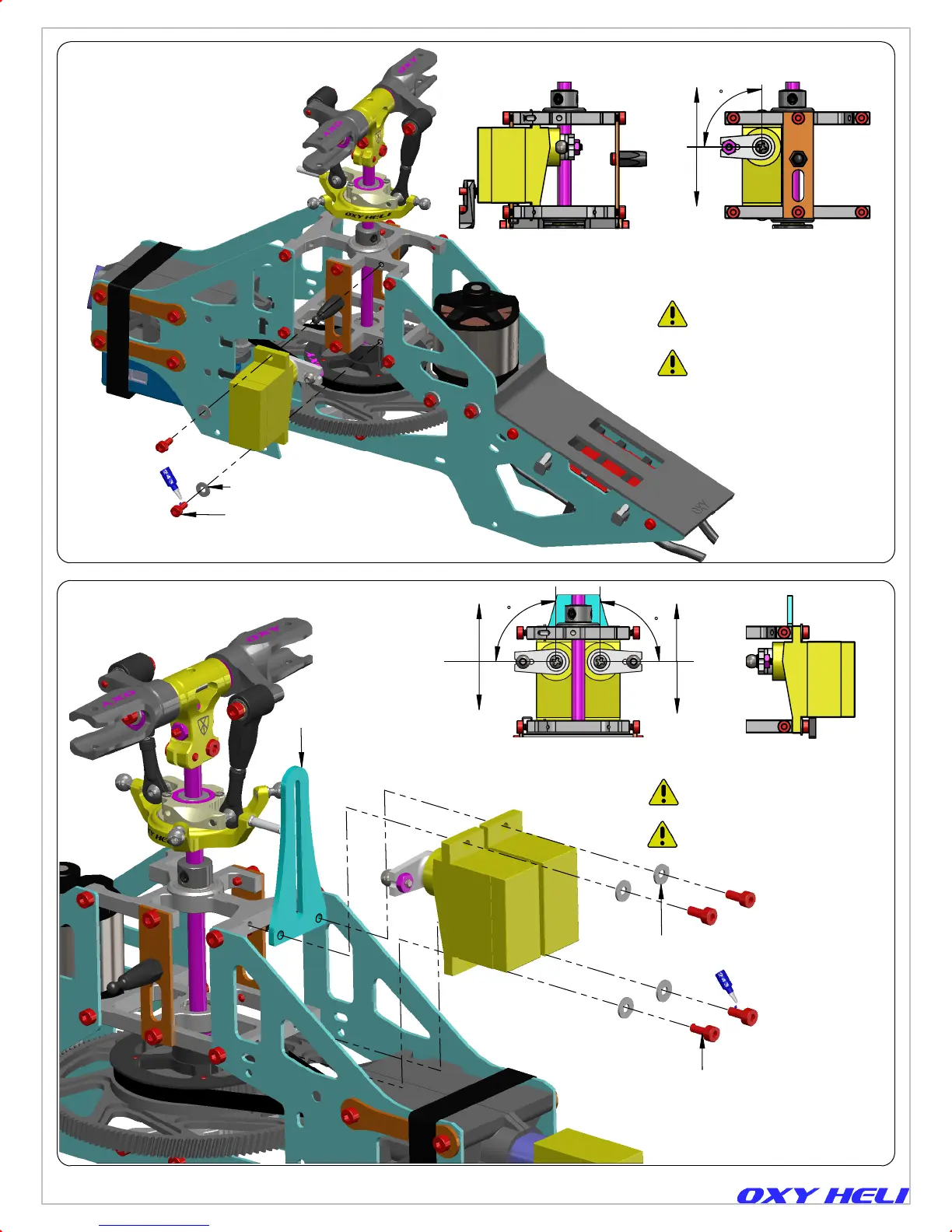

Front Cyclic Servo Assembly.
Left and Right Cyclic Servos Assembly.
Page 27
Front Heli Side
Left Heli Side
Arm position with zero deg pitch
and centered cyclic stick.
Arm position with zero deg pitch
and centered cyclic stick.
Servo lock screw come pre
assembled with Top and Middle
Bearing Block.
Servo lock screw come pre
assembled with Top and Middle
Bearing Block.
Front Heli Side
Left Heli Side
Negative
Pitch
Negative
Pitch
Positive
Pitch
Negative
Pitch
Positive
Pitch
Chapter 17, Servos Installation
To Next Page
